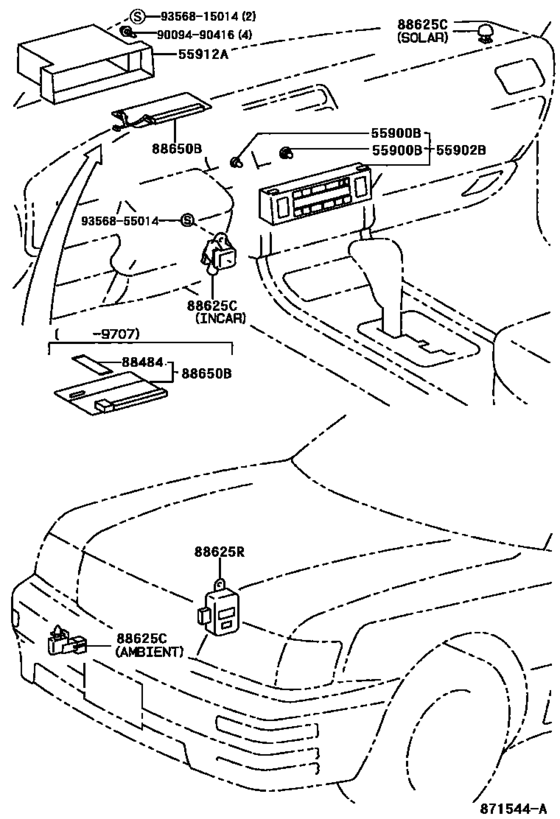

Heating & Air Conditioning - Control & Air Duct ([10.1994 - ] (9410- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55900B
|
55900B
90010-03012 Bulb, Air Conditioner Control[07.1997 - 08.2000] UCF20 14V 1.2W,LCD |
90010-03012 |
US $4.78 |
||
|
55900B
|
55900B
90010-03013
Bulb, Air Conditioner Control
[07.1997 - 08.2000] UCF20 14V 1.4W,KNOB |
90010-03013 |
— | ||
|
55902B
|
55902B
55902-50200
Control Sub-Assy, Heater
[07.1997 - 08.2000] UCF20 |
55902-50200 |
— | ||
|
55912A
|
55912A
55912-50030
Housing, Heater Control
[07.1997 -] UCF20 |
55912-50030 |
— | ||
|
88625C
|
88625C
88625-50110
Thermistor, Cooler
[10.1994 -] UCF20 SOLAR |
88625-50110 |
— | ||
|
88625C
|
88625C
88625-50120
Thermistor, Cooler
[10.1994 -] UCF20 INCAR |
88625-50120 |
— | ||
|
88625C
|
88625C
88790-22130
Thermistor, Cooler
[07.1997 -] UCF20 AMBIENT |
88790-22130 |
— | ||
| replacement | |||||
|
88625C
|
88625C
88790-22131 Thermistor, Cooler[07.1997 -] UCF20 AMBIENT |
88790-22131 |
from US $33.55 |
||
|
88625R
|
88625R
88898-50010
Thermistor, Cooler (Sensor, Smog Ventilation)
[07.1997 -] UCF20 |
88898-50010 |
— | ||
|
88650B
|
88650B
88650-50310
Amplifier Assy, Airconditioner
[07.1997 - 08.2000] UCF20..USA W(ELECTRO MULTI VISION) |
88650-50310 |
— | ||
|
88650B
|
88650B
88650-50320
Amplifier Assy, Airconditioner
[07.1997 - 08.1997] UCF20 |
88650-50320 |
— | ||
| replacement | |||||
|
88650B
|
88650B
88650-50323
Amplifier Assy, Airconditioner
[07.1997 - 08.1997] UCF20 |
88650-50323 |
— | ||
|
88650B
|
88650B
88650-50321
Amplifier Assy, Airconditioner
[08.1997 - 09.1997] UCF20 |
88650-50321 |
— | ||
| replacement | |||||
|
88650B
|
88650B
88650-50323
Amplifier Assy, Airconditioner
[08.1997 - 09.1997] UCF20 |
88650-50323 |
— | ||
|
88650B
|
88650B
88650-50322
Amplifier Assy, Airconditioner
[09.1997 - 10.1997] UCF20 |
88650-50322 |
— | ||
| replacement | |||||
|
88650B
|
88650B
88650-50323
Amplifier Assy, Airconditioner
[09.1997 - 10.1997] UCF20 |
88650-50323 |
— | ||
|
88650B
|
88650B
88650-50323
Amplifier Assy, Airconditioner
[10.1997 - 08.2000] UCF20 |
88650-50323 |
— | ||
|
9009490416
|
9009490416
90094-90416
New Genuine Part
|
90094-90416 |
— | ||
|
9356815014
|
9356815014
93568-15014
Direct
|
93568-15014 |
— | ||
| replacement | |||||
|
9356815014
|
9356815014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
