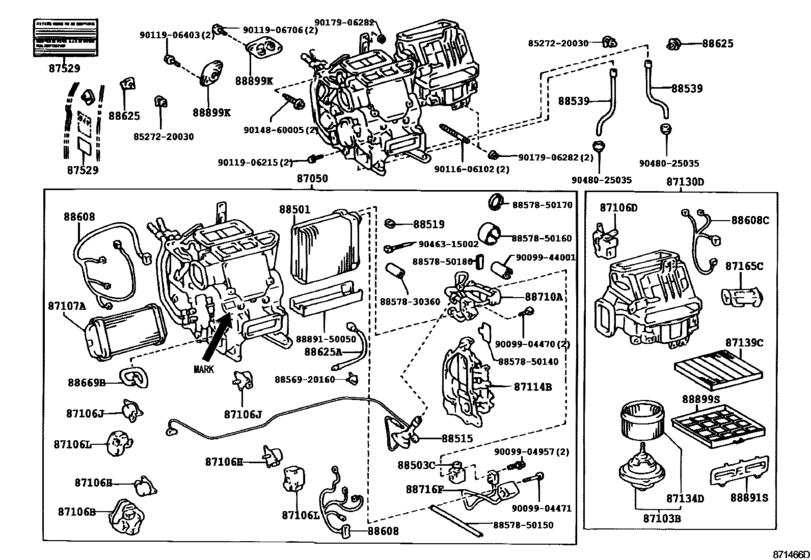

Heating & Air Conditioning - Cooler Unit ([10.1994 - ] (9410- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-50011 Radiator Assy, Air ConditionerAIR CONDITIONER [02.1996 -] UCF20 |
87050-50011 |
US $2,271.36 |
||
|
87103B
|
87103B
87103-50050
Motor Sub-Assy, Heater Blower, W/fan
[07.1997 - 01.2000] UCF20 |
87103-50050 |
— | ||
| replacement | |||||
|
87103B
|
87103B
87103-60250 Motor Sub-Assy, Heater Blower, W/fanHEATER BLOWER, W/FAN [07.1997 - 01.2000] UCF20 |
87103-60250 |
US $353.52 |
||
|
87103B
|
87103B
87103-60250 Motor Sub-Assy, Heater Blower, W/fanHEATER BLOWER, W/FAN [01.2000 -] UCF20 |
87103-60250 |
US $353.52 |
||
|
87106B
|
87106B
87106-50220
Servo Sub-Assy, Damper(For Cooling Unit)
[10.1994 -] UCF20 |
87106-50220 |
— | ||
|
87106B
|
87106B
87106-50280
Servo Sub-Assy, Damper(For Cooling Unit)
[08.1998 -] UCF20..USA W(REAR COOLER) |
87106-50280 |
— | ||
|
87106D
|
87106D
87106-50260
Servo Sub-Assy, Damper, No.1
[07.1997 -] UCF20 |
87106-50260 |
— | ||
|
87106H
|
87106H
87106-50170
Servo Sub-Assy, Damper(For Airmix)
[10.1994 -] UCF20 |
87106-50170 |
— | ||
|
87106J
|
87106J
87106-50160
Servo Sub-Assy, Damper(For Airmix)
[10.1994 -] UCF20 |
87106-50160 |
— | ||
|
87106L
|
87106L
87106-50180
Servo Sub-Assy, Damper
[10.1994 -] UCF20 DRIVER SIDE |
87106-50180 |
— | ||
|
87106L
|
87106L
87106-50190
Servo Sub-Assy, Damper
[10.1994 -] UCF20 PASSENGER SIDE |
87106-50190 |
— | ||
|
87107A
|
87107A
87107-50030
Unit Sub-Assy, Heater Radiator
[10.1994 -] UCF20 |
87107-50030 |
— | ||
|
87114B
|
87114B
87114-50010
Cover, Heater
[10.1994 -] UCF20 |
87114-50010 |
— | ||
|
87130D
|
87130D
87130-50030
Blower Assy
[07.1997 -] UCF20 |
87130-50030 |
— | ||
|
87134D
|
87134D
87134-50010
Fan, Blower, No.2
[10.1994 -] UCF20 |
87134-50010 |
— | ||
|
87139C
|
87139C
87139-50010 Filter, Clean Air[10.1994 - 08.2000] UCF20 |
87139-50010 |
from US $85.84 |
||
|
87165C
|
87165C
87165-22050 Control, Blower Motor[07.1997 -] UCF20 |
87165-22050 |
from US $136.28 |
||
|
87529
|
87529
87529-50010
Plate, Air Filter Caution
[07.1997 -] UCF20 |
87529-50010 |
— | ||
|
88501
|
88501
88501-50130
Evaporator Sub-Assy, Cooler, No.1
[10.1994 -] UCF20 |
88501-50130 |
— | ||
|
88503C
|
88503C
88503-50170 Regulator Sub-Assy, Pressure[10.1994 -] UCF20 |
88503-50170 |
from US $52.77 |
||
|
88515
|
88515
88515-50150
Valve, Cooler Expansion
[10.1994 -] UCF20 |
88515-50150 |
— | ||
|
88519
|
88519
88519-22030
Holder, Remote Bulb
[10.1994 -] UCF20 |
88519-22030 |
— | ||
|
88539
|
88539
88539-50040
Hose, Cooler Unit Drain, No.1
[10.1994 -] UCF20 |
88539-50040 |
— | ||
|
88608
|
88608
88608-50150
Harness Sub-Assy, Wiring Air Conditioner
[10.1994 -] UCF20 PASSENGER SIDE |
88608-50150 |
— | ||
|
88608
|
88608
88608-50220
Harness Sub-Assy, Wiring Air Conditioner
[10.1995 -] UCF20 DRIVER SIDE |
88608-50220 |
— | ||
|
88608C
|
88608C
88608-50230
Harness Sub-Assy, Wiring Air Indicator, No.2
[07.1997 -] UCF20 |
88608-50230 |
— | ||
|
88625
|
88625
88625-50130 Thermistor, Cooler, No.1[10.1994 -] UCF20 |
88625-50130 |
US $16.32 |
||
|
88625A
|
88625A
88625-50140 Thermistor, Cooler, No.1[10.1994 -] UCF20 |
88625-50140 |
US $9.96 |
||
|
88669B
|
88669B
88669-50030
Hose, Cooler Air
[10.1994 -] UCF20 |
88669-50030 |
— | ||
|
88710A
|
88710A
88710-50481 Tube Assy, Air ConditionerAIRCONDITIONER [02.1995 -] UCF20 MARK 056:REFER TO ILLUST. |
88710-50481 |
US $138.32 |
||
|
88716F
|
88716F
88716-50340 Pipe, Cooler Refrigerant Liquid, FCOOLER REFRIGERANT LIQUID, F [10.1994 -] UCF20 |
88716-50340 |
US $58.39 |
||
|
88891S
|
88891S
88891-50030
Cover, Cooler, No.1
[10.1994 -] UCF20 |
88891-50030 |
— | ||
|
88899K
|
88899K
88899-50020
Plate, Cover
[10.1994 -] UCF20 COOLER |
88899-50020 |
— | ||
|
88899K
|
88899K
88899-50030
Plate, Cover
[10.1994 -] UCF20 HEATER |
88899-50030 |
— | ||
|
88899S
|
88899S
88899-50050
Frame, Front Cooler
[10.1994 -] UCF20 |
88899-50050 |
— | ||
|
8527220030
|
8527220030
85272-20030 Cable Sub-assy, Headlamp Cleaner, Rh |
85272-20030 |
US $1.60 |
||
|
8856920160
|
8856920160
88569-20160
Holder, Thermistor
|
88569-20160 |
— | ||
|
8857830360
|
8857830360
88578-30360
Packing, Cooler Pipe, No.1
|
88578-30360 |
— | ||
|
8857850140
|
8857850140
88578-50140
Paking, Cooler Air Duct
|
88578-50140 |
— | ||
|
8857850150
|
8857850150
88578-50150
Paking, Cooler Air Duct
|
88578-50150 |
— | ||
|
8857850160
|
8857850160
88578-50160
Packing, Cooling Unit, No.1
|
88578-50160 |
— | ||
|
8857850170
|
8857850170
88578-50170
Paking, Cooler Air Duct
|
88578-50170 |
— | ||
|
8857850180
|
8857850180
88578-50180
Packing, Heater Air Damper
|
88578-50180 |
— | ||
| replacement | |||||
|
8857850180
|
8857850180
87127-61020
Packing, Heater Air Damper
|
87127-61020 |
— | ||
|
8889150050
|
8889150050
88891-50050
Packing (for Cooler)
|
88891-50050 |
— | ||
|
9009904470
|
9009904470
90099-04470 BOLT |
90099-04470 |
US $1.11 |
||
|
9009904471
|
9009904471
90099-04471
New Genuine Part
|
90099-04471 |
— | ||
|
9009904957
|
9009904957
90099-04957
New Genuine Part
|
90099-04957 |
— | ||
|
9009944001
|
9009944001
90099-44001
New Genuine Part
|
90099-44001 |
— | ||
|
9011606102
|
9011606102
90116-06102 New Genuine Part |
90116-06102 |
US $2.48 |
||
|
9011906215
|
9011906215
90119-06215
New Genuine Part
|
90119-06215 |
— | ||
| replacement | |||||
|
9011906215
|
9011906215
90119-06407 New Genuine Part |
90119-06407 |
US $1.92 |
||
|
9011906403
|
9011906403
90119-06403 BOLT W-WASHER |
90119-06403 |
from US $0.82 |
||
|
9011906706
|
9011906706
90119-06706 New Genuine Part |
90119-06706 |
US $1.28 |
||
|
9014860005
|
9014860005
90148-60005 New Genuine Part |
90148-60005 |
US $1.46 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
|
9046315002
|
9046315002
90463-15002 Clamp (For Accelerator Wire Set) |
90463-15002 |
US $1.92 |
||
|
9048025035
|
9048025035
90480-25035 Grommet (For Cooler Unit Drain Hose) |
90480-25035 |
US $2.48 |
||
