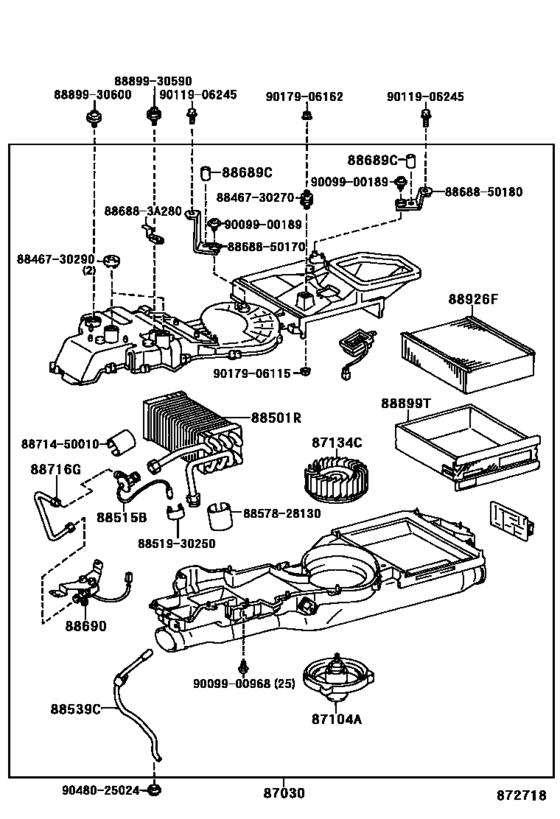

Heating & Air Conditioning - Cooler Unit ([08.1998 - ] REAR COOLER (9808- )USA) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87030
|
87030
87030-50010 Blower Assy, Air Conditioner[08.1998 -] UCF20..USA |
87030-50010 |
US $1,863.68 |
||
|
87104A
|
87104A
87104-50050 Motor Sub-Assy, Blower[08.1998 -] UCF20..USA |
87104-50050 |
US $179.09 |
||
|
87134C
|
87134C
87134-50030
Fan, Blower(For Cooling Unit)
[08.1998 -] UCF20..USA |
87134-50030 |
— | ||
|
88501R
|
88501R
88501-50150
Evaporator Sub-Assy (Rear)
[08.1998 -] UCF20..USA |
88501-50150 |
— | ||
|
88515B
|
88515B
88515-50090 Valve, Rear Cooling Unit Expansion[08.1998 -] UCF20..USA |
88515-50090 |
US $113.72 |
||
|
88539C
|
88539C
88539-50050
Hose, Cooler Unit Drain, No.2
[08.1998 -] UCF20..USA |
88539-50050 |
— | ||
|
88689C
|
88689C
88689-50010
Hose, Vacuum
[08.1998 -] UCF20..USA |
88689-50010 |
— | ||
|
88690
|
88690
88690-50010
Valve Assy, Cooler Magnet
[08.1998 -] UCF20..USA |
88690-50010 |
— | ||
|
88716G
|
88716G
88716-50330 Pipe, Cooler Refrigerant Liquid, G[08.1998 -] UCF20..USA |
88716-50330 |
US $33.78 |
||
|
88899T
|
88899T
88899-30780
Frame, Rear Cooler
[08.1998 -] UCF20..USA |
88899-30780 |
— | ||
|
88926F
|
88926F
88926-3A520 Filter Air Purifier[08.1998 -] UCF20..USA |
88926-3A520 |
US $85.84 |
||
|
886883A280
|
886883A280
88688-3A280
Bracket, Cooler Diaphragm
|
88688-3A280 |
— | ||
|
8846730270
|
8846730270
88467-30270 Cushion, Cooler Condenser, No.1 |
88467-30270 |
from US $1.75 |
||
|
8846730290
|
8846730290
88467-30290
Cushion, Cooler Condenser, No.1
|
88467-30290 |
— | ||
|
8851930250
|
8851930250
88519-30250
Holder, Remote Bulb
|
88519-30250 |
— | ||
|
8857828130
|
8857828130
88578-28130
Packing, Cooling Unit, No.4
|
88578-28130 |
— | ||
| replacement | |||||
|
8857828130
|
8857828130
88578-26120
Packing, Cooling Unit, No.4
|
88578-26120 |
— | ||
|
8868850170
|
8868850170
88688-50170
Bracket, Cooler Diaphragm
|
88688-50170 |
— | ||
|
8868850180
|
8868850180
88688-50180
Bracket, Cooler Diaphragm
|
88688-50180 |
— | ||
|
8871450010
|
8871450010
88714-50010
Hose, Cooler Refrigerant Liquid, No.1
|
88714-50010 |
— | ||
|
8889930590
|
8889930590
88899-30590
Cover, Evaporator
|
88899-30590 |
— | ||
|
8889930600
|
8889930600
88899-30600
Cover, Evaporator
|
88899-30600 |
— | ||
|
9009900189
|
9009900189
90099-00189
New Genuine Part
|
90099-00189 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.84 |
||
|
9011906245
|
9011906245
90119-06245 BOLT |
90119-06245 |
US $0.87 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9017906162
|
9017906162
90179-06162
New Genuine Part
|
90179-06162 |
— | ||
| replacement | |||||
|
9017906162
|
9017906162
90179-06308 NUT |
90179-06308 |
US $1.28 |
||
|
9048025024
|
9048025024
90480-25024
New Genuine Part
|
90480-25024 |
— | ||
