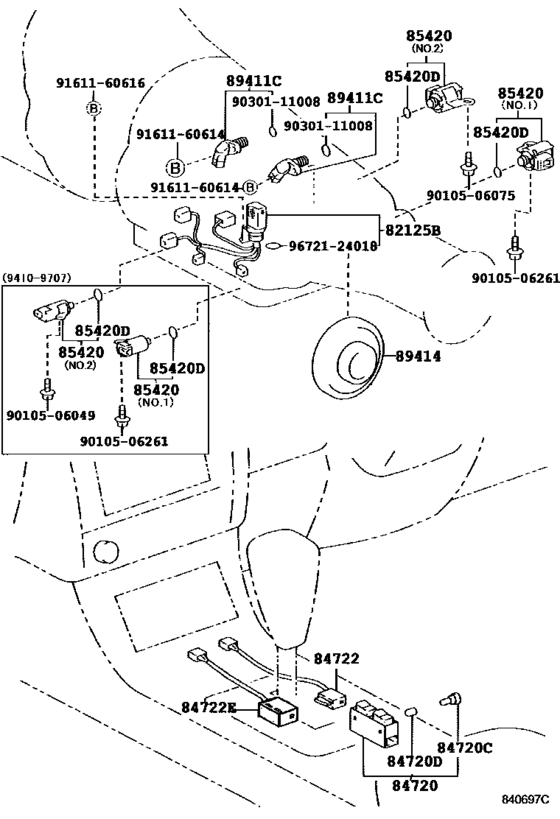

Overdrive & Electronic Controlled Transmission ([10.1994 - ] (9410- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82125B
|
82125B
82125-30460 Wire, Transmission[07.1997 -] UCF20 |
82125-30460 |
US $46.66 |
||
|
84720
|
84720
84720-50050 Switch Assy, Pattern Select[07.1997 -] UCF20 |
84720-50050 |
US $61.01 |
||
|
84720
|
84720
84720-50060 Switch Assy, Pattern Select[07.1997 -] UCF20..USA W(AIR SUSPENTION) |
84720-50060 |
US $88.82 |
||
|
84720C
|
84720C
84999-10310 Bulb, Air Conditioner Control[07.1997 - 06.1998] UCF20..USA 14V 0.91W,W(AIR SUSPENTION) |
84999-10310 |
from US $2.93 |
||
|
84720C
|
84720C
84999-10820 Bulb(For Pattern Select Switch)[10.1994 -] UCF20 |
84999-10820 |
US $6.24 |
||
|
84720C
|
84720C
90010-01039 Blub, Center Cluster Module Switch[06.1998 -] UCF20..USA 14V0.91W,W(GREEN CAP,W(AIR SUSPENTION) |
90010-01039 |
from US $3.43 |
||
|
84720D
|
84720D
84998-10180 Cap, Cooler Switch Bulb[07.1997 - 06.1998] UCF20..USA W(AIR SUSPENTION) |
84998-10180 |
US $2.97 |
||
|
84720D
|
84720D
84998-10670 Cap, Throttle Position Switch Bulb[10.1994 -] UCF20 |
84998-10670 |
US $3.68 |
||
|
84722
|
84722
84722-50090 Switch, Transmission ControlTRANSMISSION CONTROL [07.1997 -] UCF20 |
84722-50090 |
US $42.22 |
||
|
84722E
|
84722E
84722-50100 Switch, Transmission Control[07.1997 -] UCF20 |
84722-50100 |
US $42.22 |
||
|
85420
|
85420
85420-30240 Valve, Solenoid(S2)[07.1997 - 08.2000] UCF20 NO.1,DENSO |
85420-30240 |
US $196.56 |
||
| replacement | |||||
|
85420
|
85420
35250-50010 Solenoid Assy, Transmission, No.3[07.1997 - 08.2000] UCF20 NO.1,DENSO |
35250-50010 |
US $211.41 |
||
|
85420
|
85420
85420-30250 Solenoid Assy, Transmission[07.1997 - 08.2000] UCF20 NO.1,AISIN |
85420-30250 |
US $218.40 |
||
| replacement | |||||
|
85420
|
85420
35250-50010 Solenoid Assy, Transmission, No.3[07.1997 - 08.2000] UCF20 NO.1,AISIN |
35250-50010 |
US $211.41 |
||
|
85420
|
85420
85420-30260
Valve, Solenoid(S4)
[07.1997 - 08.2000] UCF20 NO.2,DENSO |
85420-30260 |
— | ||
| replacement | |||||
|
85420
|
85420
35250-50030 Valve, Solenoid(S4)[07.1997 - 08.2000] UCF20 NO.2,DENSO |
35250-50030 |
US $192.96 |
||
|
85420
|
85420
85420-30270
Valve, Solenoid(S4)
[07.1997 - 08.2000] UCF20 NO.2,AISIN |
85420-30270 |
— | ||
| replacement | |||||
|
85420
|
85420
35250-50030 Valve, Solenoid(S4)[07.1997 - 08.2000] UCF20 NO.2,AISIN |
35250-50030 |
US $192.96 |
||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[10.1994 - 08.2000] UCF20 |
90301-06004 |
from US $1.92 |
||
|
89411C
|
89411C
89411-50010 Sensor, Speed[10.1994 -] UCF20 |
89411-50010 |
from US $67.18 |
||
|
89414
|
89414
89414-30080 Rotor, Sensor[07.1997 - 08.2000] UCF20 |
89414-30080 |
US $20.27 |
||
|
9010506049
|
9010506049
90105-06049 Bolt(For Transmission Case No.2 Plate) |
90105-06049 |
US $1.12 |
||
|
9010506075
|
9010506075
90105-06075 New Genuine Part |
90105-06075 |
US $1.60 |
||
| replacement | |||||
|
9010506075
|
9010506075
91511-C0622 Strainer Bolt |
91511-C0622 |
US $0.96 |
||
|
9010506261
|
9010506261
90105-06261 Bolt(For Manual Detent Spring) |
90105-06261 |
US $0.73 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.96 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $1.19 |
||
|
9672124018
|
9672124018
96721-24018 Ring, O |
96721-24018 |
from US $3.96 |
||
