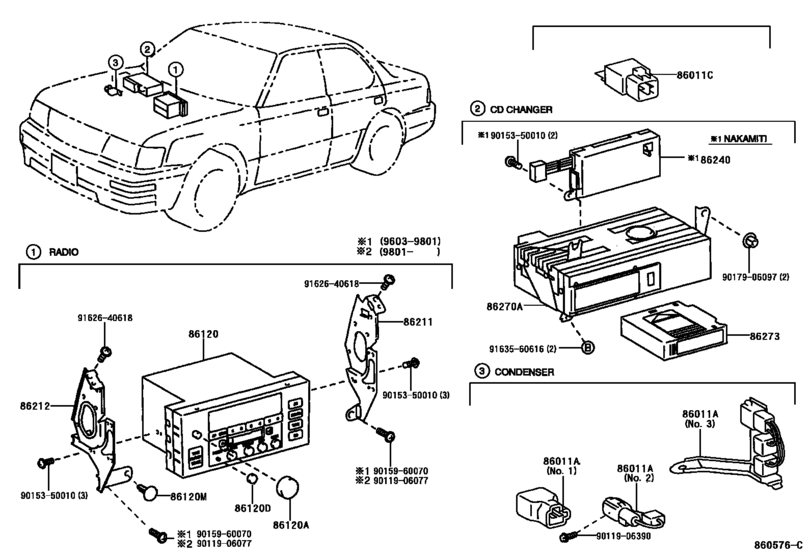

Radio Receiver & Amplifier & Condenser ([07.1997 - ] (9707- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86011A
|
86011A
90980-04125 Condenser, Radio Setting[07.1997 -] UCF20 NO.2 |
90980-04125 |
US $14.12 |
||
|
86011A
|
86011A
90980-04127 Condenser, Radio Setting[07.1997 -] UCF20 NO.3 |
90980-04127 |
US $27.96 |
||
|
86011C
|
86011C
90980-05313 Condenser, Radio Setting[07.1997 -] UCF20 |
90980-05313 |
US $43.39 |
||
|
86120
|
86120
86120-50450 Receiver Assy, RadioRADIO [07.1997 -] UCF20 PIONEER |
86120-50450 |
US $1,630.72 |
||
|
86120
|
86120
86120-50500
Receiver Assy, Radio
[07.1997 -] UCF20..USA TAIWAN SPEC |
86120-50500 |
— | ||
|
86120
|
86120
86120-50540
Receiver Assy, Radio
[07.1997 - 08.1998] UCF20..USA "WIDE MULTI AV STATION" |
86120-50540 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-50541 Receiver Assy, Radio[07.1997 - 08.1998] UCF20..USA "WIDE MULTI AV STATION" |
86120-50541 |
US $1,403.58 |
||
|
86120
|
86120
86120-50541 Receiver Assy, Radio[08.1998 -] UCF20..USA "WIDE MULTI AV STATION" |
86120-50541 |
US $1,403.58 |
||
|
86120
|
86120
86120-50570
Receiver Assy, Radio
[07.1997 -] UCF20 NAKAMICHI |
86120-50570 |
— | ||
|
86120A
|
86120A
86127-50080
Knob, Radio Receiver Switch
[07.1997 -] UCF20 |
86127-50080 |
— | ||
|
86120D
|
86120D
86127-50100 Knob, Radio Receiver ToneRADIO RECEIVER TONE [07.1997 -] UCF20 |
86127-50100 |
US $9.17 |
||
|
86120M
|
86120M
90467-06049-22 Clip(For Front Floor Mat)[07.1997 - 08.2000] UCF20 BLACK,TRIM03,15,27,62 |
90467-06049-22 |
from US $1.51 |
||
|
86120M
|
86120M
90467-06049-B0 Clip(For Front Floor Rear Carpet)[07.1997 - 08.2000] UCF20 SHADOW GRAY,TRIM0#,1#,2#,6# |
90467-06049-B0 |
US $1.40 |
||
|
86211
|
86211
86211-50030 Bracket, Radio, No.1[10.1994 -] UCF20 |
86211-50030 |
US $10.66 |
||
|
86212
|
86212
86212-50030 Bracket, Radio, No.2[10.1994 -] UCF20 |
86212-50030 |
US $10.66 |
||
|
86240
|
86240
86240-50020 Equalizer Assy,stereo ComponentSTEREO COMPONENT [07.1997 -] UCF20 |
86240-50020 |
US $872.14 |
||
|
86270A
|
86270A
86270-50120
Disc Player Assy
[07.1997 -] UCF20 PIONEER |
86270-50120 |
— | ||
|
86270A
|
86270A
86270-50130 Disc Player Assy[07.1997 -] UCF20 NAKAMICHI |
86270-50130 |
US $2,533.44 |
||
|
86273
|
86273
86273-50050 Magazine, Disc PlayerDISC PLAYER [10.1994 -] UCF20 |
86273-50050 |
US $189.28 |
||
|
9011906077
|
9011906077
90119-06077 Bolt |
90119-06077 |
US $1.28 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.92 |
||
|
9015960070
|
9015960070
90159-60070 New Genuine Part |
90159-60070 |
US $2.08 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9162640618
|
9162640618
91626-40618 BOLTWWASHER |
91626-40618 |
US $1.44 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
US $1.76 |
||
