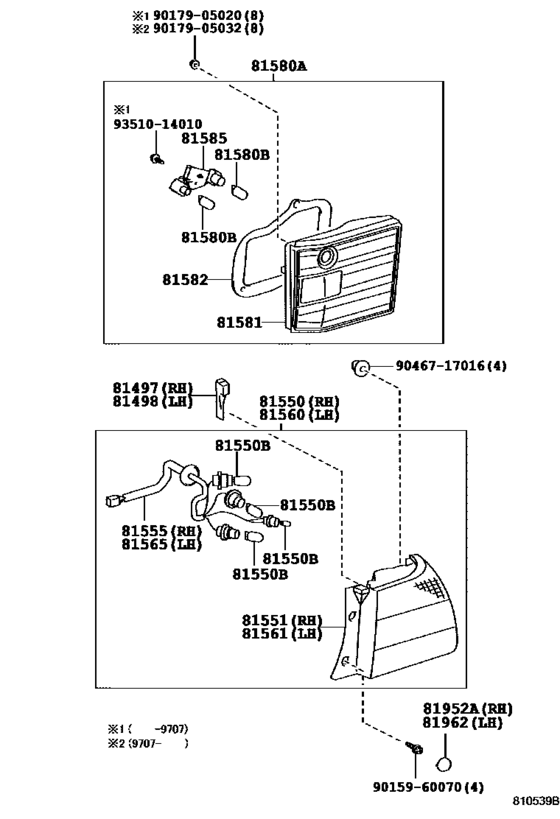

Rear Combination Lamp ([10.1994 - ] (9410- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81497
|
81497
81497-50030 Cover, Rear Combination Lamp, Rh[07.1997 -] UCF20 |
81497-50030 |
US $9.03 |
||
|
81498
|
81498
81498-50030 Cover, Rear Combination Lamp, Lh[07.1997 -] UCF20 |
81498-50030 |
US $9.03 |
||
|
81550
|
81550
81550-50070 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [07.1997 -] UCF20 |
81550-50070 |
US $400.40 |
||
|
81550B
|
81550B
90981-13050
Bulb, Cornering Lamp
[10.1994 -] UCF20 12V 21W |
90981-13050 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[10.1994 -] UCF20 12V 21W |
90981-13043 |
from US $3.52 |
||
|
81550B
|
81550B
90981-13051
Bulb(For Rear Combination Lamp)
[10.1994 -] UCF20 12V 21/5W |
90981-13051 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[10.1994 -] UCF20 12V 21/5W |
90981-13044 |
from US $3.65 |
||
|
81550B
|
81550B
99132-12050 Bulb (12V 5W)[10.1994 -] UCF20 12V 5W |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81550B
|
81550B
90080-81053 Bulb(For Clearance Lamp)[10.1994 -] UCF20 12V 5W |
90080-81053 |
US $1.05 |
||
|
81551
|
81551
81551-50070 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [07.1997 -] UCF20 |
81551-50070 |
US $346.53 |
||
|
81555
|
81555
81555-50070
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[07.1997 -] UCF20 |
81555-50070 |
— | ||
|
81560
|
81560
81560-50070
Lamp Assy, Rear Combination, Lh
[07.1997 -] UCF20 |
81560-50070 |
— | ||
|
81561
|
81561
81561-50070
Lens, Rear Combination Lamp, Lh
[07.1997 -] UCF20 |
81561-50070 |
— | ||
|
81565
|
81565
81555-50070
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[07.1997 -] UCF20 |
81555-50070 |
— | ||
|
81580A
|
81580A
81580-50080 Lamp Assy, Rear[07.1997 -] UCF20 RH |
81580-50080 |
US $331.97 |
||
|
81580A
|
81580A
81590-50080
Lamp Assy, Rear
[07.1997 -] UCF20 LH |
81590-50080 |
— | ||
|
81580B
|
81580B
90981-13050
Bulb, Cornering Lamp
[10.1994 -] UCF20 12V 21W |
90981-13050 |
— | ||
| replacement | |||||
|
81580B
|
81580B
90981-13043 Bulb (12V 21W)[10.1994 -] UCF20 12V 21W |
90981-13043 |
from US $3.52 |
||
|
81580B
|
81580B
90981-13051
Bulb(For Rear Combination Lamp)
[10.1994 -] UCF20 12V 21/5W |
90981-13051 |
— | ||
| replacement | |||||
|
81580B
|
81580B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[10.1994 -] UCF20 12V 21/5W |
90981-13044 |
from US $3.65 |
||
|
81581
|
81581
81581-50080 Lens, Rear Lamp[07.1997 -] UCF20 RH |
81581-50080 |
US $282.46 |
||
|
81581
|
81581
81591-50080 Lens, Rear Lamp[07.1997 -] UCF20 LH |
81591-50080 |
US $282.46 |
||
|
81582
|
81582
81582-50080
Gasket, Rear Lamp
[07.1997 -] UCF20 |
81582-50080 |
— | ||
|
81585
|
81585
81585-50080 Socket & Wire, Rear Lamp[07.1997 -] UCF20 |
81585-50080 |
from US $27.37 |
||
|
81952A
|
81952A
81952-50010 Cover, Rear Lamp, Rh[10.1994 -] UCF20 |
81952-50010 |
US $1.51 |
||
|
81962
|
81962
81952-50010 Cover, Rear Lamp, Rh[10.1994 -] UCF20 |
81952-50010 |
US $1.51 |
||
|
9015960070
|
9015960070
90159-60070 New Genuine Part |
90159-60070 |
US $2.08 |
||
|
9017905020
|
9017905020
90179-05020
NUT
|
90179-05020 |
— | ||
| replacement | |||||
|
9017905020
|
9017905020
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
|
9017905032
|
9017905032
90179-05032
NUT
|
90179-05032 |
— | ||
| replacement | |||||
|
9017905032
|
9017905032
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
|
9046717016
|
9046717016
90467-17016 CLIP |
90467-17016 |
US $3.04 |
||
|
9351014010
|
9351014010
93510-14010 New Genuine Part |
93510-14010 |
US $1.31 |
||
