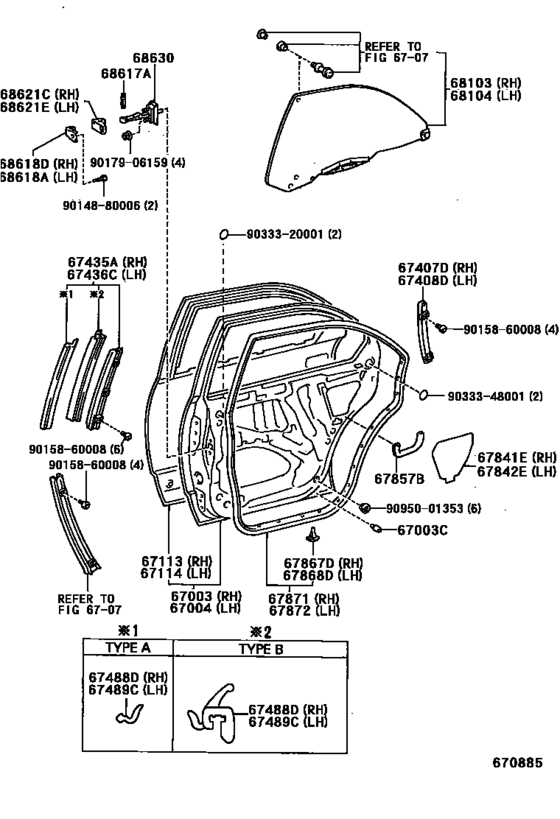

Rear Door Panel & Glass ([10.1994 - ] (9410- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-50905 Panel Sub-Assy, Rear Door, Rh[04.1997 - 08.2000] UCF20 |
67003-50905 |
US $974.06 |
||
|
67003C
|
67003C
90541-10027 Cushion(For Center Piller)[10.1994 -] UCF20 |
90541-10027 |
US $3.20 |
||
|
67004
|
67004
67004-50906 Panel Sub-Assy, Rear Door, Lh[04.1997 - 08.2000] UCF20 |
67004-50906 |
US $974.06 |
||
|
67113
|
67113
67113-50902 Panel, Rear Door, Outer Rh[10.1994 - 08.2000] UCF20 |
67113-50902 |
US $422.24 |
||
|
67114
|
67114
67114-50902 Panel, Rear Door, Outer Lh[10.1994 - 08.2000] UCF20 |
67114-50902 |
US $422.24 |
||
|
67407D
|
67407D
67407-50010 Guide Sub-Assy, Rear Door Window, Rear Rh[10.1994 -] UCF20 |
67407-50010 |
US $50.38 |
||
|
67408D
|
67408D
67408-50010 Guide Sub-Assy, Rear Door Window, Rear Lh[10.1994 -] UCF20 |
67408-50010 |
US $50.38 |
||
|
67435A
|
67435A
67435-50030 Guide, Rear Door Window, Front Rh[07.1997 -] UCF20 |
67435-50030 |
US $91.73 |
||
|
67436C
|
67436C
67436-50030 Guide, Rear Door Window, Front Lh[07.1997 -] UCF20 |
67436-50030 |
US $91.73 |
||
|
67488D
|
67488D
67488-50010
Weatherstrip, Rear Door Glass Guide, No.4
[10.1994 -] UCF20 TYPE A:REFER TO ILLUSTRATION |
67488-50010 |
— | ||
|
67488D
|
67488D
67488-50020
Weatherstrip, Rear Door Glass Guide, No.4
[10.1994 -] UCF20 TYPE B:REFER TO ILLUSTRATION |
67488-50020 |
— | ||
|
67489C
|
67489C
67489-50010
Weatherstrip, Rear Door Glass Guide, No.5
[10.1994 -] UCF20 TYPE A:REFER TO ILLUSTRATION |
67489-50010 |
— | ||
|
67489C
|
67489C
67489-50020
Weatherstrip, Rear Door Glass Guide, No.5
[10.1994 -] UCF20 TYPE B:REFER TO ILLUSTRATION |
67489-50020 |
— | ||
|
67841E
|
67841E
67841-50030
Cover, Rear Door Service Hole, Rh
[04.1997 -] UCF20 |
67841-50030 |
— | ||
|
67842E
|
67842E
67842-50010
Cover, Rear Door Service Hole, Lh
[04.1997 -] UCF20 |
67842-50010 |
— | ||
|
67857B
|
67857B
67857-50010 Protector, Rear Door Panel, Rh[07.1997 -] UCF20 |
67857-50010 |
US $4.66 |
||
|
67867D
|
67867D
67867-12150 Clip(For Hood Air Intake Duct Seal)[05.1995 -] UCF20 NATURAL |
67867-12150 |
from US $1.60 |
||
|
67867D
|
67867D
67867-30060 Retainer, Roof Side Rail, Rh[05.1995 -] UCF20 YELLOW |
67867-30060 |
US $1.89 |
||
|
67868D
|
67868D
67867-12150 Clip(For Hood Air Intake Duct Seal)[05.1995 -] UCF20 NATURAL |
67867-12150 |
from US $1.60 |
||
|
67868D
|
67868D
67867-30060 Retainer, Roof Side Rail, Rh[05.1995 -] UCF20 YELLOW |
67867-30060 |
US $1.89 |
||
|
67871
|
67871
67871-50020
Weatherstrip, Rear Door, Rh
[10.1994 -] UCF20 |
67871-50020 |
— | ||
|
67872
|
67872
67872-50020
Weatherstrip, Rear Door, Lh
[10.1994 -] UCF20 |
67872-50020 |
— | ||
|
68103
|
68103
68103-50120
Glass Sub-Assy, Rear Door, Rh
[07.1997 -] UCF20 *UVCTT,T=5.0,GREEN |
68103-50120 |
— | ||
|
68103
|
68103
68103-50140 Glass Sub-Assy, Rear Door, RhREAR DOOR, RH [07.1997 -] UCF20 *UVCTT,T=5.0,BRONZE |
68103-50140 |
US $717.81 |
||
|
68104
|
68104
68104-50120
Glass Sub-Assy, Rear Door, Lh
[07.1997 -] UCF20 *UVCTT,T=5.0,GREEN |
68104-50120 |
— | ||
|
68104
|
68104
68104-50140 Glass Sub-Assy, Rear Door, LhREAR DOOR, LH [07.1997 -] UCF20 *UVCTT,T=5.0,BRONZE |
68104-50140 |
US $717.81 |
||
|
68617A
|
68617A
68617-50010 Pin(For Front Door Check)[10.1994 -] UCF20 |
68617-50010 |
from US $1.79 |
||
|
68618A
|
68618A
68618-50010 Bracket, Front Door Check Arm, Rh[10.1994 -] UCF20 |
68618-50010 |
from US $3.84 |
||
|
68618D
|
68618D
68618-50010 Bracket, Front Door Check Arm, Rh[10.1994 -] UCF20 |
68618-50010 |
from US $3.84 |
||
|
68621C
|
68621C
68621-50030 Cover, Front Door Check, Rh[10.1994 -] UCF20 |
68621-50030 |
US $3.04 |
||
|
68621E
|
68621E
68621-50030 Cover, Front Door Check, Rh[10.1994 -] UCF20 |
68621-50030 |
US $3.04 |
||
|
68630
|
68630
68630-50020 Check Assy, Rear Door[10.1994 -] UCF20 RH |
68630-50020 |
US $60.13 |
||
|
68630
|
68630
68640-50020 Check Assy, Rear Door[10.1994 -] UCF20 LH |
68640-50020 |
US $60.13 |
||
|
9014880006
|
9014880006
90148-80006 New Genuine Part |
90148-80006 |
US $1.75 |
||
|
9015860008
|
9015860008
90158-60008 New Genuine Part |
90158-60008 |
US $1.46 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9033348001
|
9033348001
90333-48001 Plate, Quarter Panel, Upper No.1 |
90333-48001 |
US $0.96 |
||
|
9095001353
|
9095001353
90950-01353 Plug, Hole(For Rocker Inner Panel) |
90950-01353 |
US $2.08 |
||
