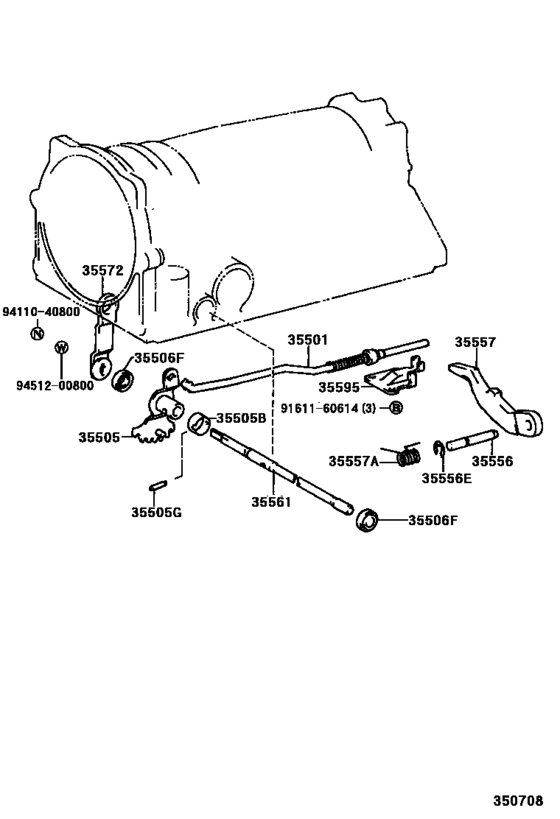

Throttle Link & Valve Lever (Atm) ([10.1994 - ] A340E,A650E (9410- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35501
|
35501
35501-30020 Rod Sub-Assy, Parking Lock[07.1997 - 08.2000] UCF20 |
35501-30020 |
US $36.98 |
||
|
35505
|
35505
35505-50020 Lever Sub-Assy, Manual Valve[10.1994 - 08.2000] UCF20 |
35505-50020 |
US $18.64 |
||
|
35505B
|
35505B
90560-20006 Spacer (For Manual Valve Lever)[10.1994 - 08.2000] UCF20 |
90560-20006 |
from US $2.77 |
||
|
35505G
|
35505G
90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)[10.1994 - 08.2000] UCF20 |
90254-04011 |
US $1.40 |
||
|
35506F
|
35506F
90311-12002 Oil Seal, Type T[10.1994 - 08.2000] UCF20 |
90311-12002 |
from US $4.29 |
||
|
35556
|
35556
35556-30030 Shaft, Parking Lock Pawl[07.1997 - 08.2000] UCF20 |
35556-30030 |
US $11.65 |
||
|
35556E
|
35556E
90523-08021 Ring, E (For Parking Lock Pawl Shaft)[10.1994 - 08.2000] UCF20 |
90523-08021 |
US $1.05 |
||
|
35557
|
35557
35590-30010 Pawl, Parking Lock[07.1997 - 08.2000] UCF20 |
35590-30010 |
US $99.01 |
||
|
35557A
|
35557A
90949-03065 Spring, Torsion (For Parking Lock Pawl)[07.1997 - 08.2000] UCF20 |
90949-03065 |
US $3.49 |
||
|
35561
|
35561
35561-30070 Shaft Sub-Assy, Manual Valve Lever[10.1994 - 08.2000] UCF20 |
35561-30070 |
US $37.39 |
||
|
35572
|
35572
35572-50020 Lever, Transmission Control Shaft, Rh[03.1997 - 08.2000] UCF20 |
35572-50020 |
US $14.12 |
||
|
35595
|
35595
35595-30020 Bracket, Parking Lock Pawl[07.1997 - 08.2000] UCF20 |
35595-30020 |
US $32.18 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.88 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
