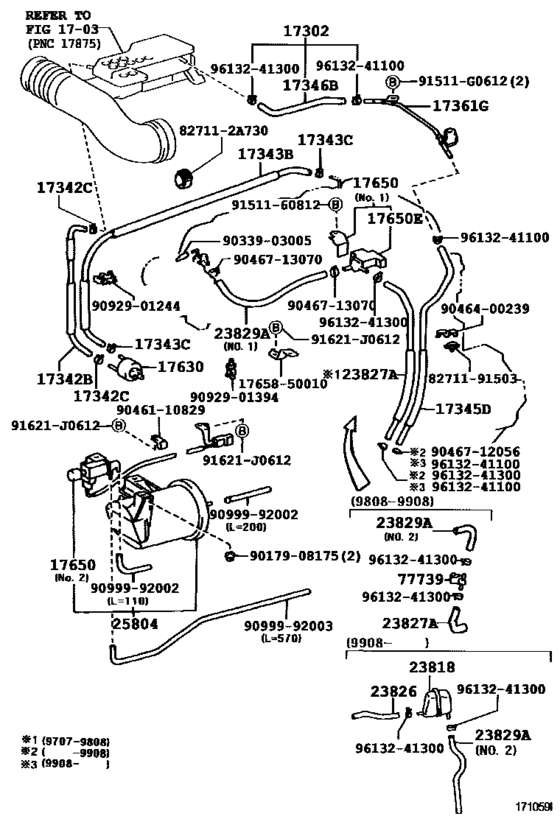

Vacuum Piping ([07.1997 - ] (9707- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17302
|
17302
17302-50170
Hose Sub-Assy, Air
[08.1997 - 08.1999] 1UZFE..UCF20 |
17302-50170 |
— | ||
|
17302
|
17302
17302-50180 Hose Sub-Assy, AirAIR [08.1999 -] 1UZFE..UCF20 |
17302-50180 |
US $15.58 |
||
|
17342B
|
17342B
17342-50090 Hose, No.2(For Idle-Up)[07.1997 -] 1UZFE..UCF20 |
17342-50090 |
from US $23.56 |
||
|
17342C
|
17342C
90467-10099
Clip Or Clamp(For Ventilation Hose)
[10.1994 -] 1UZFE..UCF20 |
90467-10099 |
— | ||
| replacement | |||||
|
17342C
|
17342C
96132-51000 Clip Or Clamp(For Ventilation Hose)[10.1994 -] 1UZFE..UCF20 |
96132-51000 |
from US $1.62 |
||
|
17343B
|
17343B
17343-50070 Hose, No.3(For Idle-Up)[07.1997 -] 1UZFE..UCF20 |
17343-50070 |
US $46.82 |
||
|
17343C
|
17343C
90467-10099
Clip Or Clamp(For Ventilation Hose)
[10.1994 -] 1UZFE..UCF20 |
90467-10099 |
— | ||
| replacement | |||||
|
17343C
|
17343C
96132-51000 Clip Or Clamp(For Ventilation Hose)[10.1994 -] 1UZFE..UCF20 |
96132-51000 |
from US $1.62 |
||
|
17345D
|
17345D
17345-50040
Hose, Air, No.5
[07.1997 - 08.1999] 1UZFE..UCF20 |
17345-50040 |
— | ||
|
17345D
|
17345D
17345-50041
Hose, Air, No.5
[08.1999 -] 1UZFE..UCF20 |
17345-50041 |
— | ||
|
17346B
|
17346B
17346-50020
Hose, Air, No.6
[07.1997 - 08.1999] 1UZFE..UCF20 |
17346-50020 |
— | ||
|
17346B
|
17346B
17346-50040
Hose, Air, No.6
[08.1999 -] 1UZFE..UCF20 |
17346-50040 |
— | ||
|
17361G
|
17361G
17361-50010
Tube, Air(For Idle-Up)
[07.1997 - 07.2000] 1UZFE..UCF20 |
17361-50010 |
— | ||
|
17361G
|
17361G
17361-50030 Tube, Air(For Idle-Up)AIR(FOR IDLE-UP) [07.2000 - 08.2000] 1UZFE..UCF20 |
17361-50030 |
US $33.49 |
||
|
17630
|
17630
17630-16040 Valve Assy, Air Control[04.1995 -] 1UZFE..UCF20 |
17630-16040 |
from US $82.74 |
||
|
17650
|
17650
25860-50100 Valve Assy, Vacuum Switching[07.1997 -] 1UZFE..UCF20 NO.1 |
25860-50100 |
from US $74.28 |
||
|
17650
|
17650
25860-50120 Valve Assy, Vacuum Switching[07.1997 - 06.1998] 1UZFE..UCF20 NO.2 |
25860-50120 |
US $74.26 |
||
|
17650
|
17650
25860-50121 Valve Assy, Vacuum Switching[06.1998 -] 1UZFE..UCF20 NO.2 |
25860-50121 |
from US $74.96 |
||
|
17650E
|
17650E
90910-12173
Valve, Vacuum Switching
[07.1997 -] 1UZFE..UCF20 |
90910-12173 |
— | ||
|
23818
|
23818
23818-46110 Pipe, Fuel Vapor Feed[08.1999 -] 1UZFE..UCF20 |
23818-46110 |
from US $10.18 |
||
|
23826
|
23826
23826-50030 Hose, Fuel Vapor Feed, No.1[08.1999 -] 1UZFE..UCF20 |
23826-50030 |
from US $2.96 |
||
|
23827A
|
23827A
23827-50030 Hose, Fuel Vapor Feed, No.2FUEL VAPOR FEED, NO.2 [07.1997 - 08.1998] 1UZFE..UCF20 |
23827-50030 |
US $38.44 |
||
|
23827A
|
23827A
23827-50080
Hose, Fuel Vapor Feed, No.2
[08.1998 - 08.1999] 1UZFE..UCF20 |
23827-50080 |
— | ||
|
23827A
|
23827A
23827-50081 Hose, Fuel Vapor Feed, No.2FUEL VAPOR FEED, NO.2 [08.1999 -] 1UZFE..UCF20 |
23827-50081 |
US $11.53 |
||
|
23829A
|
23829A
23829-50070 Hose, Fuel Vapor Feed[07.1997 -] 1UZFE..UCF20 NO.1 |
23829-50070 |
from US $27.11 |
||
|
23829A
|
23829A
23829-50090
Hose, Fuel Vapor Feed
[08.1998 - 08.1999] 1UZFE..UCF20 NO.2 |
23829-50090 |
— | ||
|
23829A
|
23829A
23829-50100 Hose, Fuel Vapor FeedFUEL VAPOR FEED [08.1999 -] 1UZFE..UCF20 |
23829-50100 |
from US $10.65 |
||
|
25804
|
25804
25804-50010 Valve Set, Vacuum Control[07.1997 - 06.1998] 1UZFE..UCF20 |
25804-50010 |
US $256.26 |
||
|
25804
|
25804
25804-50011 Valve Set, Vacuum Control[06.1998 -] 1UZFE..UCF20 |
25804-50011 |
from US $205.71 |
||
|
77739
|
77739
77739-33010 Valve, Evap Service PortEVAP SERVICE PORT [08.1998 -] UCF20 |
77739-33010 |
from US $14.33 |
||
|
91511G0612
|
91511G0612
91511-G0612 Bolt |
91511-G0612 |
US $1.76 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
827112A730
|
827112A730
82711-2A730 Clamp, Throttle Cable, No.1 |
82711-2A730 |
US $5.28 |
||
|
1765850010
|
1765850010
17658-50010 Bracket, Vacuum Hose Clamp |
17658-50010 |
US $5.24 |
||
|
8271191503
|
8271191503
82711-91503 Wire, Fuse To Fuse(for Combustion Heater) |
82711-91503 |
US $1.60 |
||
|
9017908175
|
9017908175
90179-08175 New Genuine Part |
90179-08175 |
US $1.44 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.76 |
||
|
9046110829
|
9046110829
90461-10829
New Genuine Part
|
90461-10829 |
— | ||
|
9046400239
|
9046400239
90464-00239 New Genuine Part |
90464-00239 |
from US $3.49 |
||
|
9046712056
|
9046712056
90467-12056 Clamp Or Clip(For Throttle Body Hose) |
90467-12056 |
from US $0.80 |
||
| replacement | |||||
|
9046712056
|
9046712056
90466-T0048
New Genuine Part
|
90466-T0048 |
— | ||
|
9046713070
|
9046713070
90467-13070
Clip(For Air Hose No.6)
|
90467-13070 |
— | ||
| replacement | |||||
|
9046713070
|
9046713070
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.56 |
||
|
9092901244
|
9092901244
90929-01244 New Genuine Part |
90929-01244 |
US $6.81 |
||
|
9092901394
|
9092901394
90929-01394 New Genuine Part |
90929-01394 |
US $1.76 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9151160812
|
9151160812
91511-60812
BOLT
|
91511-60812 |
— | ||
| replacement | |||||
|
9151160812
|
9151160812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
9613241100
|
9613241100
96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose) |
96132-41100 |
US $1.92 |
||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.92 |
||
|
9613241300
|
9613241300
96132-41300
Clip, No.4(For Idle-Up Hose)
|
96132-41300 |
— | ||
| replacement | |||||
|
9613241300
|
9613241300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.56 |
||
