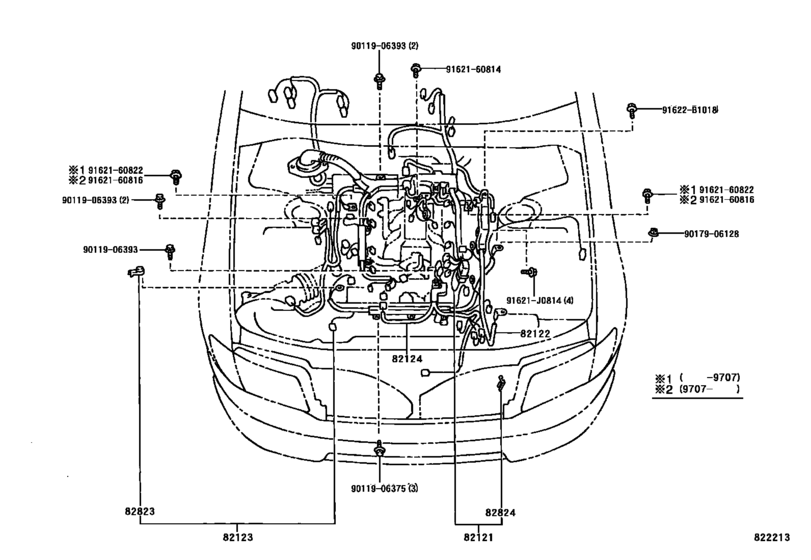

Wiring & Clamp ([10.1994 - ] ENGINE (9410- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-50350 Wire, EngineENGINE [07.1997 - 08.1999] UCF20 |
82121-50350 |
US $1,250.70 |
||
|
82121
|
82121
82121-50410
Wire, Engine
[08.1999 -] UCF20 |
82121-50410 |
— | ||
|
82122
|
82122
82122-50050 Wire, Engine, No.2[07.1997 -] UCF20 |
82122-50050 |
US $200.93 |
||
|
82123
|
82123
82123-50050 Wire, Engine, No.3ENGINE, NO.3 [07.1997 -] UCF20 |
82123-50050 |
US $106.29 |
||
|
82823
|
82823
82823-22070 Cap, Terminal, No.1[10.1994 -] UCF20 |
82823-22070 |
US $14.72 |
||
|
82824
|
82824
82824-24010 Connector, Wiring Harness[07.1997 -] UCF20 |
82824-24010 |
US $4.54 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.74 |
||
|
91622B1018
|
91622B1018
91622-B1018 BOLT WWASHER |
91622-B1018 |
from US $0.94 |
||
|
9011906375
|
9011906375
90119-06375 Bolt (For Transmission Housing & Case Setting) |
90119-06375 |
US $1.12 |
||
|
9011906393
|
9011906393
90119-06393 Bolt(For Suspension Control Oil Cooler) |
90119-06393 |
from US $1.28 |
||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.12 |
||
|
9162160814
|
9162160814
91621-60814
Bolt (For Transmission Control Cable Bracket)
|
91621-60814 |
— | ||
| replacement | |||||
|
9162160814
|
9162160814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.74 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
|
9162160822
|
9162160822
91621-60822 Bolt, W/washer(For Repair Actuator Set) |
91621-60822 |
US $1.44 |
||
