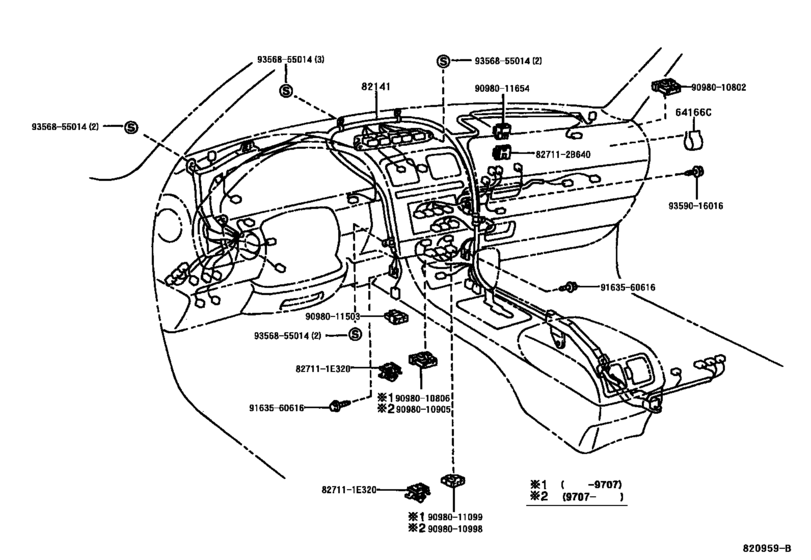

Wiring & Clamp ([10.1994 - ] INSTRUMENT PANEL (9410- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64166C
|
64166C
64166-50010 Plate, Noise Control, No.3[12.1994 -] UCF20..USA |
64166-50010 |
US $1.89 |
||
|
82141
|
82141
82141-50780 Wire, Instrument PanelINSTRUMENT PANEL [07.1997 - 08.1998] UCF20..USA |
82141-50780 |
US $457.18 |
||
|
82141
|
82141
82141-50781 Wire, Instrument PanelINSTRUMENT PANEL [08.1998 -] UCF20..USA |
82141-50781 |
US $419.33 |
||
|
82141
|
82141
82141-50790 Wire, Instrument PanelINSTRUMENT PANEL [07.1997 - 08.1998] UCF20..USA "WIDE MULTI AV STATION" |
82141-50790 |
US $500.86 |
||
|
82141
|
82141
82141-50791 Wire, Instrument PanelINSTRUMENT PANEL [08.1998 -] UCF20..USA "WIDE MULTI AV STATION" |
82141-50791 |
US $457.18 |
||
|
82141
|
82141
82141-50800 Wire, Instrument PanelINSTRUMENT PANEL [07.1997 - 08.1998] UCF20..USA W(RADIO---NAKAMICHI) |
82141-50800 |
US $457.18 |
||
|
82141
|
82141
82141-50801 Wire, Instrument PanelINSTRUMENT PANEL [08.1998 -] UCF20..USA W(RADIO---NAKAMICHI) |
82141-50801 |
US $419.33 |
||
|
82141
|
82141
82141-50810 Wire, Instrument PanelINSTRUMENT PANEL [08.1998 -] UCF20..USA W(REAR POWER SEAT) |
82141-50810 |
US $457.18 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
827112B640
|
827112B640
82711-2B640 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2B640 |
US $1.76 |
||
|
9098010802
|
9098010802
90980-10802 New Genuine Part |
90980-10802 |
US $6.40 |
||
|
9098010806
|
9098010806
90980-10806 New Genuine Part |
90980-10806 |
US $6.70 |
||
|
9098010905
|
9098010905
90980-10905 New Genuine Part |
90980-10905 |
US $3.84 |
||
|
9098010998
|
9098010998
90980-10998 New Genuine Part |
90980-10998 |
US $4.66 |
||
|
9098011099
|
9098011099
90980-11099
New Genuine Part
|
90980-11099 |
— | ||
|
9098011503
|
9098011503
90980-11503
New Genuine Part
|
90980-11503 |
— | ||
|
9098011654
|
9098011654
90980-11654 New Genuine Part |
90980-11654 |
US $5.82 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
US $1.76 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9359016016
|
9359016016
93590-16016 New Genuine Part |
93590-16016 |
US $1.31 |
||
