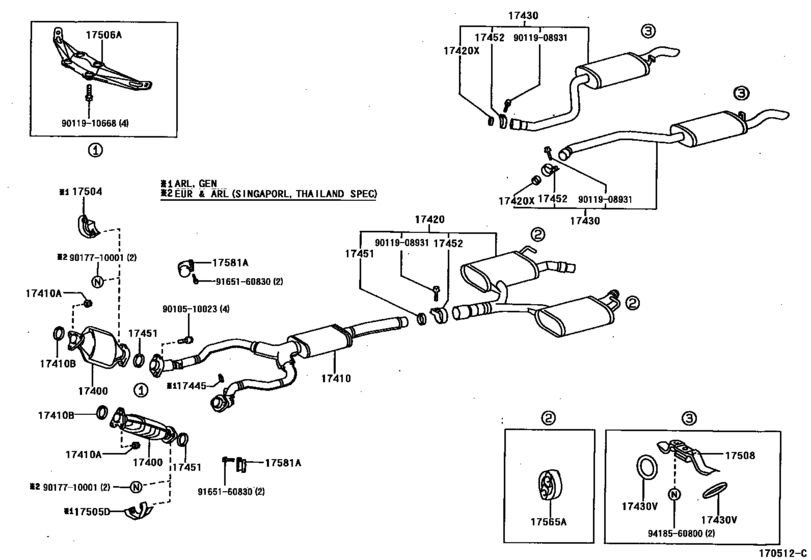

Exhaust Pipe ([10.1994 - ] W(CONVERTER) (9410- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- Europe
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- V
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-50220 Converter Assy, W/catalystW/CATALYST [08.1999 -] 1UZFE..UCF20..V CHINA SPEC,RH |
18450-50220 |
US $1,241.97 |
||
|
17400
|
17400
18460-50050 Converter Assy, W/catalystW/CATALYST [08.1999 -] 1UZFE..UCF20..V CHINA SPEC,LH |
18460-50050 |
US $1,241.97 |
||
|
17410
|
17410
17410-50140 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [10.1994 -] 1UZFE..UCF20..V;1UZFE..UCF20..RHD..(EUR,GEN) W/O(CONVERTER) |
17410-50140 |
US $612.98 |
||
|
17410
|
17410
17410-50220
Pipe Assy, Exhaust, Front
[08.1999 -] 1UZFE..UCF20..V CHINA SPEC;W(CONVERTER) |
17410-50220 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[10.1994 -] 1UZFE..UCF20 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[10.1994 -] 1UZFE..UCF20 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06043
Gasket, Exhaust Pipe
[10.1994 -] 1UZFE..UCF20..V..5FC;1UZFE..UCF20..(GEN,V)..4FC;1UZFE..UCF20..RHD..(EUR,GEN)..5FC W/O(CONVERTER); 1UZFE..UCF20..ARL;1UZFE..UCF20..EUR..4FC W(CONVERTER) |
90917-06043 |
— | ||
| replacement | |||||
|
17410B
|
17410B
17451-52060 GASKET, EXHAUST PIPE[10.1994 -] 1UZFE..UCF20..V..5FC;1UZFE..UCF20..(GEN,V)..4FC;1UZFE..UCF20..RHD..(EUR,GEN)..5FC W/O(CONVERTER); 1UZFE..UCF20..ARL;1UZFE..UCF20..EUR..4FC W(CONVERTER) |
17451-52060 |
from US $5.48 |
||
|
17410B
|
17410B
90917-06059 Gasket, Exhaust Pipe[08.1999 -] 1UZFE..UCF20..V CHINA SPEC;W(CONVERTER) |
90917-06059 |
from US $4.95 |
||
|
17420
|
17420
17420-50170 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [07.1997 -] 1UZFE..UCF20..EUR,GEN,V |
17420-50170 |
US $678.50 |
||
|
17420X
|
17420X
17451-50040 Gasket, Exhaust Pipe, Center[07.1997 -] 1UZFE..UCF20 |
17451-50040 |
from US $8.44 |
||
|
17430
|
17430
17430-50130 Pipe Assy, Exhaust, Tail[07.1997 -] 1UZFE..UCF20 RH |
17430-50130 |
US $438.26 |
||
|
17430
|
17430
17440-50100 Pipe Assy, Exhaust, Tail[07.1997 -] 1UZFE..UCF20 LH |
17440-50100 |
US $438.26 |
||
|
17430V
|
17430V
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[10.1994 -] 1UZFE..UCF20 |
90301-36001 |
from US $5.05 |
||
|
17451
|
17451
17451-50020 Gasket, Exhaust Pipe[10.1994 -] 1UZFE..UCF20 REAR |
17451-50020 |
from US $10.41 |
||
|
17451
|
17451
90917-06076 Gasket, Exhaust Pipe, Center[02.1997 -] 1UZFE..UCF20..V;1UZFE..UCF20..RHD;1UZFE..UCF20..LHD..EUR..4FC FRONT |
90917-06076 |
from US $5.60 |
||
|
17451
|
17451
90917-06078 Gasket, Exhaust Pipe[08.1999 -] 1UZFE..UCF20..V CHINA SPEC,FRONT |
90917-06078 |
from US $5.44 |
||
| replacement | |||||
|
17451
|
17451
90917-A6003 Gasket, Exhaust Pipe[08.1999 -] 1UZFE..UCF20..V CHINA SPEC,FRONT |
90917-A6003 |
US $19.80 |
||
|
17452
|
17452
17452-50020 Clamp, Exhaust Pipe[10.1994 -] 1UZFE..UCF20 FRONT |
17452-50020 |
from US $25.56 |
||
|
17452
|
17452
17452-50040 Clamp, Exhaust Pipe[07.1997 -] 1UZFE..UCF20 REAR |
17452-50040 |
US $34.20 |
||
|
17506A
|
17506A
17506-50080
Bracket Sub-Assy, Exhaust Pipe No.1 Support
[10.1994 -] 1UZFE..UCF20 |
17506-50080 |
— | ||
|
17508
|
17508
17508-50010
Support Sub-Assy, Exhaust Pipe, No.3
[10.1994 -] 1UZFE..UCF20 |
17508-50010 |
— | ||
| replacement | |||||
|
17508
|
17508
17508-46060 Support Sub-Assy, Exhaust Pipe, No.3[10.1994 -] 1UZFE..UCF20 |
17508-46060 |
from US $23.65 |
||
|
17565A
|
17565A
17565-46040 Support, Exhaust Pipe, No.1[10.1994 -] 1UZFE..UCF20 |
17565-46040 |
from US $13.38 |
||
|
17581A
|
17581A
17581-50070
Damper, Exhaust Pipe
[08.1999 -] 1UZFE..UCF20 |
17581-50070 |
— | ||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9011908931
|
9011908931
90119-08931 BOLT WWASHER |
90119-08931 |
US $3.20 |
||
|
9011910668
|
9011910668
90119-10668 BOLT WWASHER |
90119-10668 |
US $2.08 |
||
|
9017710001
|
9017710001
90177-10001 NUT LOCK |
90177-10001 |
from US $1.21 |
||
|
9165160830
|
9165160830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
US $1.44 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
US $1.60 |
||
