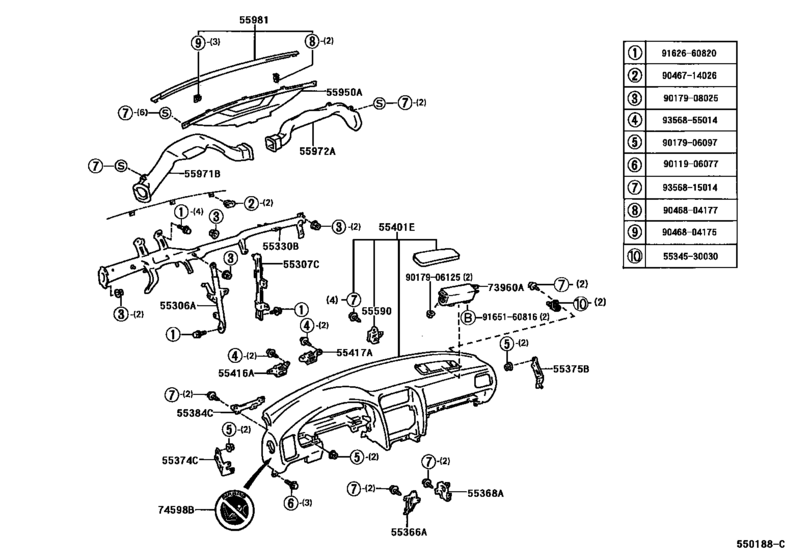

Instrument Panel & Glove Compartment ([10.1994 - ] (9410- )LHD) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- General
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- V
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55306A
|
55306A
55306-50041
Brace Sub-Assy, Instrument Panel, No.1
[08.1996 -] UCF20..LHD |
55306-50041 |
— | ||
|
55307C
|
55307C
55307-50060
Brace Sub-Assy, Instrument Panel, No.2
[10.1994 -] UCF20..LHD |
55307-50060 |
— | ||
|
55330B
|
55330B
55330-50050
Reinforcement Assy, Instrument Panel
[10.1994 - 08.1998] UCF20..LHD |
55330-50050 |
— | ||
|
55330B
|
55330B
55330-50080 Reinforcement Assy, Instrument PanelINSTRUMENT PANEL [08.1998 -] UCF20..LHD |
55330-50080 |
US $289.74 |
||
|
55366A
|
55366A
55366-50040 Bracket, Radio Mounting, No.1[10.1994 -] UCF20 |
55366-50040 |
US $8.88 |
||
|
55368A
|
55368A
55368-50040 Bracket, Radio Mounting, No.2[10.1994 -] UCF20 |
55368-50040 |
US $8.88 |
||
|
55374C
|
55374C
55374-50030 Bracket, Instrument Panel Lower Mounting, No.1INSTRUMENT PANEL LOWER MOUNTING, NO.1 [10.1994 -] UCF20..LHD |
55374-50030 |
US $10.05 |
||
|
55375B
|
55375B
55375-50040 Bracket, Instrument Panel Lower Mounting, No.2INSTRUMENT PANEL LOWER MOUNTING, NO.2 [10.1994 -] UCF20..LHD |
55375-50040 |
US $10.92 |
||
|
55384C
|
55384C
55384-50030 Bracket, Finish Panel Mounting, No.4FINISH PANEL MOUNTING, NO.4 [10.1994 -] UCF20..LHD |
55384-50030 |
US $11.36 |
||
|
55401E
|
55401E
55401-50070-B0 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [07.1997 -] UCF20..LHD DK.BLUE GRAY,TRIM1# |
55401-50070-B0 |
US $990.08 |
||
|
55401E
|
55401E
55401-50070-C0 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [07.1997 -] UCF20..LHD BLACK,TRIM2# |
55401-50070-C0 |
US $990.08 |
||
|
55401E
|
55401E
55401-50070-E0 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [07.1997 -] UCF20..LHD SANDAL WOOD,TRIM0# |
55401-50070-E0 |
US $990.08 |
||
|
55416A
|
55416A
55416-50020 Retainer, Meter Hood, No.1[10.1994 -] UCF20 |
55416-50020 |
US $7.43 |
||
|
55417A
|
55417A
55417-50010 Retainer, Meter Hood, No.2[10.1994 -] UCF20 |
55417-50010 |
US $7.43 |
||
|
55590
|
55590
55590-50040 Plate Assy, Grove Compartment Door Lock StrikerGROVE COMPARTMENT DOOR LOCK STRIKER [10.1994 -] UCF20..LHD |
55590-50040 |
US $5.82 |
||
|
55950A
|
55950A
55950-50010 Nozzle Assy, Defroster[10.1994 -] UCF20 |
55950-50010 |
US $37.42 |
||
|
55971B
|
55971B
55971-50020 Duct, Side Defroster Nozzle, No.1SIDE DEFROSTER NOZZLE, NO.1 [10.1994 -] UCF20..LHD |
55971-50020 |
US $48.48 |
||
|
55972A
|
55972A
55972-50020 Duct, Side Defroster Nozzle, No.2SIDE DEFROSTER NOZZLE, NO.2 [10.1994 -] UCF20..LHD |
55972-50020 |
US $30.43 |
||
|
55981
|
55981
55981-50050-B0 Garnish, Defroster Nozzle, No.1DEFROSTER NOZZLE, NO.1 [10.1994 -] UCF20..LHD DK. BLUE GRAY,TRIM1# |
55981-50050-B0 |
US $47.17 |
||
| replacement | |||||
|
55981
|
55981
55981-50050-C0 Garnish, Defroster Nozzle, No.1DEFROSTER NOZZLE, NO.1 [10.1994 -] UCF20..LHD DK. BLUE GRAY,TRIM1# |
55981-50050-C0 |
US $47.17 |
||
|
55981
|
55981
55981-50050-C0 Garnish, Defroster Nozzle, No.1DEFROSTER NOZZLE, NO.1 [10.1994 -] UCF20..LHD BLACK,TRIM2# |
55981-50050-C0 |
US $47.17 |
||
|
55981
|
55981
55981-50060-E1 Garnish, Defroster Nozzle, No.1DEFROSTER NOZZLE, NO.1 [07.1997 -] UCF20..LHD SANDALWOOD,TRIM0# |
55981-50060-E1 |
US $46.30 |
||
|
73960A
|
73960A
73960-50030 Air Bag Assy, Instrument Panel Passenger W/o Door[07.1997 -] UCF20 |
73960-50030 |
US $1,616.16 |
||
|
74598B
|
74598B
74598-30040 Label, Passenger Air Bag CautionPASSENGER AIR BAG CAUTION [08.1995 -] UCF20 |
74598-30040 |
US $1.56 |
||
|
5534530030
|
5534530030
55345-30030 Garnish, Glove Compartment, Upper |
55345-30030 |
US $3.35 |
||
|
9011906077
|
9011906077
90119-06077 Bolt |
90119-06077 |
US $1.28 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9017906125
|
9017906125
90179-06125 Nut (For Rear Wiper Arm Setting) |
90179-06125 |
from US $0.82 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9046714026
|
9046714026
90467-14026 New Genuine Part |
90467-14026 |
US $2.62 |
||
|
9046804175
|
9046804175
90468-04175 Retainer, Side Defroster |
90468-04175 |
US $0.58 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.64 |
||
|
9162660820
|
9162660820
91626-60820 BOLT WWASHER |
91626-60820 |
US $1.75 |
||
| replacement | |||||
|
9162660820
|
9162660820
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.88 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9356815014
|
9356815014
93568-15014
Direct
|
93568-15014 |
— | ||
| replacement | |||||
|
9356815014
|
9356815014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
