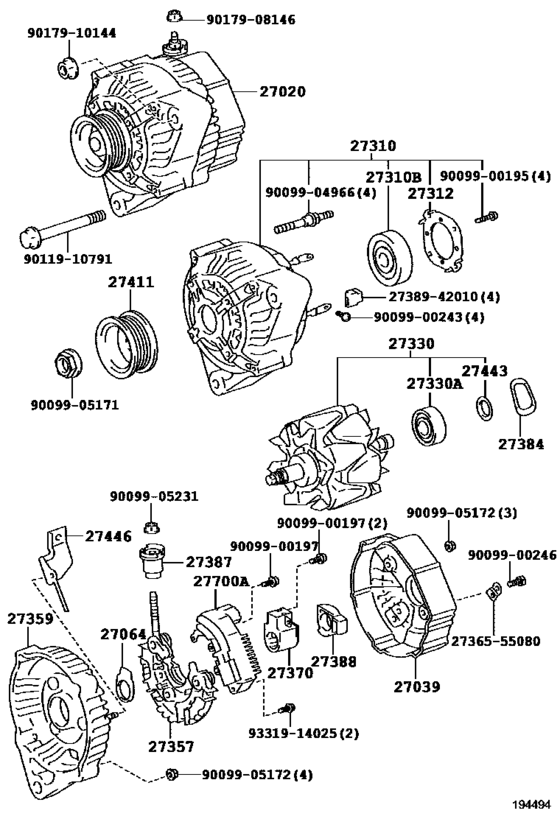

Alternator ([10.1994 - 07.1997] (9410-9707)) Diagram Toyota LEXUS LS
- Year
- 1994 - 1997
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- CND
- Model
- LS400
- From
- 10.1994
- To
- 07.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-50190 Alternator Assy[10.1994 - 08.1995] 1UZFE..UCF20 12V 80A |
27060-50190 |
US $1,645.28 |
||
|
27020
|
27020
27060-50200 Alternator Assy[08.1995 - 07.1997] 1UZFE..UCF20..CND 12V 100A |
27060-50200 |
US $1,820 |
||
| replacement | |||||
|
27020
|
27020
27060-50100 Alternator Assy[08.1995 - 07.1997] 1UZFE..UCF20..CND 12V 100A |
27060-50100 |
US $1,820 |
||
|
27039
|
27039
27039-50090
Cover, Alternator Rear End
[08.1995 - 06.1998] 1UZFE..UCF20..CND;1UZFE..UCF20..USA..5FC |
27039-50090 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-17230
Cover, Alternator Rear End
[08.1995 - 06.1998] 1UZFE..UCF20..CND;1UZFE..UCF20..USA..5FC |
27039-17230 |
— | ||
|
27039
|
27039
27039-55080
Cover, Alternator Rear End
[10.1994 - 08.1995] 1UZFE..UCF20 |
27039-55080 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-70470
Cover, Alternator Rear End
[10.1994 - 08.1995] 1UZFE..UCF20 |
27039-70470 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[10.1994 -] 1UZFE..UCF20 |
27064-42010 |
from US $2.10 |
||
|
27310
|
27310
27310-50030
Frame Assy, Drive End, Alternator
[08.1995 - 07.1997] 1UZFE..UCF20..CND |
27310-50030 |
— | ||
|
27310
|
27310
27310-50190
Frame Assy, Drive End, Alternator
[10.1994 - 08.1995] 1UZFE..UCF20 |
27310-50190 |
— | ||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[10.1994 -] 1UZFE..UCF20 |
90099-10192 |
from US $15.03 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[10.1994 -] 1UZFE..UCF20 |
27312-42010 |
— | ||
|
27330
|
27330
27330-46090
Rotor Assy, Alternator
[08.1995 - 07.1997] 1UZFE..UCF20..CND |
27330-46090 |
— | ||
|
27330
|
27330
27330-46290
Rotor Assy, Alternator
[10.1994 - 08.1995] 1UZFE..UCF20 |
27330-46290 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-74550 Rotor Assy, Alternator[10.1994 - 08.1995] 1UZFE..UCF20 |
27330-74550 |
from US $176.47 |
||
|
27330A
|
27330A
90099-10194 Bearing(For Alternator Rotor)[10.1994 -] 1UZFE..UCF20 |
90099-10194 |
from US $8.56 |
||
|
27357
|
27357
27357-46290
Holder, Alternator, W/rectifier
[10.1994 - 08.1995] 1UZFE..UCF20 |
27357-46290 |
— | ||
|
27357
|
27357
27357-74170
Holder, Alternator, W/rectifier
[08.1995 -] 1UZFE..UCF20..CND;1UZFE..UCF20..USA..5FC |
27357-74170 |
— | ||
|
27359
|
27359
27359-50030
Frame, Alternator Rectifier End
[08.1995 -] 1UZFE..UCF20..CND;1UZFE..UCF20..USA..5FC |
27359-50030 |
— | ||
|
27359
|
27359
27359-50190
Frame, Alternator Rectifier End
[10.1994 - 08.1995] 1UZFE..UCF20 |
27359-50190 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[10.1994 -] 1UZFE..UCF20 |
27370-75060 |
from US $16.50 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[10.1994 -] 1UZFE..UCF20 |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-42040
Insulator, Terminal
[10.1994 -] 1UZFE..UCF20 |
27387-42040 |
— | ||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[10.1994 -] 1UZFE..UCF20 |
27388-42010 |
from US $2.28 |
||
|
27411
|
27411
27411-50030
Pulley, Alternator
[08.1995 - 07.1997] 1UZFE..UCF20..CND |
27411-50030 |
— | ||
|
27411
|
27411
27411-50190
Pulley, Alternator
[10.1994 - 08.1995] 1UZFE..UCF20 |
27411-50190 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[10.1994 -] 1UZFE..UCF20 |
27443-63020 |
from US $1.12 |
||
|
27446
|
27446
27446-46130
Clip, Alternator Cord
[10.1994 - 07.1997] 1UZFE..UCF20 |
27446-46130 |
— | ||
|
27700A
|
27700A
27700-46050 Regulator Assy, Generator[08.1995 - 07.1997] 1UZFE..UCF20..CND |
27700-46050 |
US $264.99 |
||
|
27700A
|
27700A
27700-50020 Regulator Assy, Generator[10.1994 - 08.1995] 1UZFE..UCF20 |
27700-50020 |
US $262.08 |
||
| replacement | |||||
|
27700A
|
27700A
27700-50030 Regulator Assy, Generator[10.1994 - 08.1995] 1UZFE..UCF20 |
27700-50030 |
from US $160.78 |
||
|
2736555080
|
2736555080
27365-55080
Plate, Terminal
|
27365-55080 |
— | ||
|
2738942010
|
2738942010
27389-42010
Insulator, Terminal
|
27389-42010 |
— | ||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905231
|
9009905231
90099-05231
New Genuine Part
|
90099-05231 |
— | ||
|
9011910791
|
9011910791
90119-10791 Bolt(For Alternator) |
90119-10791 |
US $3.67 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9017910144
|
9017910144
90179-10144 NUT |
90179-10144 |
US $2.77 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
