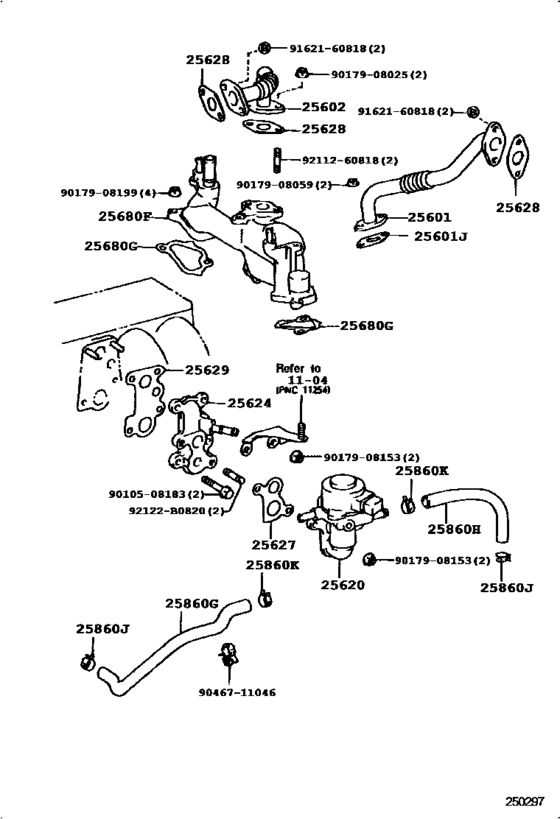

Exhaust Gas Recirculation System ([10.1994 - ] (9410- )1UZFE..4FC) Diagram Toyota LEXUS LS
- Year
- 1994 - 1997
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- CND
- Model
- LS400
- From
- 10.1994
- To
- 07.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-50060 Pipe Sub-Assy, Egr, No.1EGR, NO.1 [10.1994 -] 1UZFE..UCF20..4FC |
25601-50060 |
US $112.83 |
||
|
25601J
|
25601J
25634-50010 Gasket(For Exhaust Manifold Plate)[10.1994 -] 1UZFE..UCF20..4FC |
25634-50010 |
from US $7.16 |
||
|
25602
|
25602
25602-50010
Pipe Sub-Assy, Egr, No.2
[10.1994 -] 1UZFE..UCF20..4FC |
25602-50010 |
— | ||
|
25620
|
25620
25620-50030
Valve Assy, Egr
[10.1994 -] 1UZFE..UCF20..4FC |
25620-50030 |
— | ||
|
25624
|
25624
25624-50021 Adapter, Egr ValveEGR VALVE [10.1994 -] 1UZFE..UCF20..4FC |
25624-50021 |
US $39.17 |
||
|
25627
|
25627
25627-50010 Gasket, Egr ValveEGR VALVE [10.1994 -] 1UZFE..UCF20..4FC |
25627-50010 |
US $2.18 |
||
|
25628
|
25628
25628-50010 Gasket, Egr InletEGR INLET [10.1994 -] 1UZFE..UCF20..4FC |
25628-50010 |
from US $2.48 |
||
|
25629
|
25629
25629-50010
Gasket(For Intake Air Surge Tank)
[10.1994 -] 1UZFE..UCF20..4FC |
25629-50010 |
— | ||
|
25680F
|
25680F
25608-50010 Cooler Sub-Assy, EgrEGR [10.1994 -] 1UZFE..UCF20..4FC |
25608-50010 |
US $346.53 |
||
|
25680G
|
25680G
16341-50010 Gasket(For Water By-Pass Joint Front)[10.1994 -] 1UZFE..UCF20..4FC |
16341-50010 |
from US $6.08 |
||
|
25860G
|
25860G
16297-50010
Hose, Water By-Pass Hose No.1(For Egr Cooler)
[10.1994 -] 1UZFE..UCF20..4FC |
16297-50010 |
— | ||
|
25860H
|
25860H
16267-50030
Hose, Water By-Pass Hose No.2(For Egr Cooler)
[10.1994 -] 1UZFE..UCF20..4FC |
16267-50030 |
— | ||
|
25860J
|
25860J
90467-13059
Clamp Or Clip, Hose(For Water By-Pass Hose)
[10.1994 -] 1UZFE..UCF20..4FC |
90467-13059 |
— | ||
| replacement | |||||
|
25860J
|
25860J
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[10.1994 -] 1UZFE..UCF20..4FC |
90467-13054 |
from US $0.96 |
||
|
25860K
|
25860K
90467-15022 Clip Or Clamp(For Ventilation Hose)[10.1994 - 12.1994] 1UZFE..UCF20 |
90467-15022 |
from US $1.15 |
||
|
25860K
|
25860K
90467-16037 Clamp Or Clip(For Water By-Pass Hose No.6)[12.1994 -] 1UZFE..UCF20..4FC |
90467-16037 |
from US $1.95 |
||
|
92122B0820
|
92122B0820
92122-B0820 Bolt, Stud(For Water Outlet) |
92122-B0820 |
US $1.22 |
||
|
9010508183
|
9010508183
90105-08183
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
90105-08183 |
— | ||
| replacement | |||||
|
9010508183
|
9010508183
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017908199
|
9017908199
90179-08199 Nut |
90179-08199 |
US $1.05 |
||
|
9046711046
|
9046711046
90467-11046 New Genuine Part |
90467-11046 |
US $1.89 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.05 |
||
|
9211260818
|
9211260818
92112-60818 Bolt, Stud(For Water Pump Coupling) |
92112-60818 |
US $3.20 |
||
