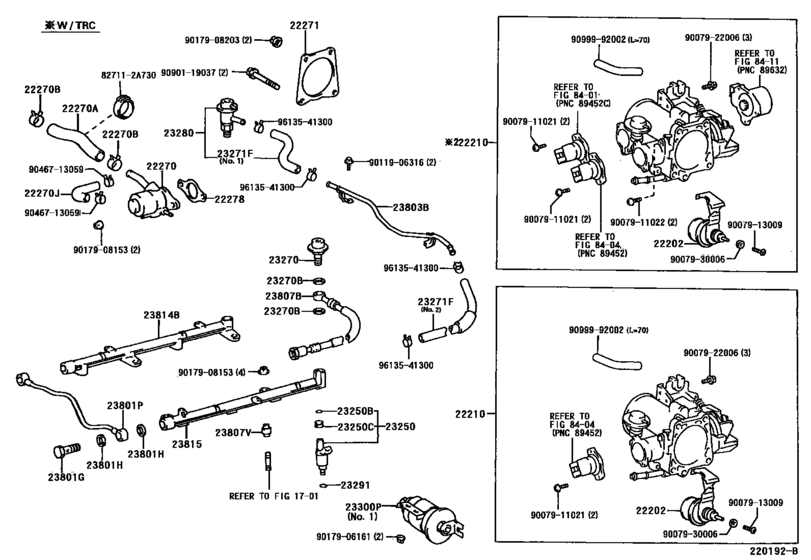

Fuel Injection System ([10.1994 - 07.1997] (9410-9707)) Diagram Toyota LEXUS LS
- Year
- 1994 - 1997
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- CND
- Model
- LS400
- From
- 10.1994
- To
- 07.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22202
|
22202
22202-50040 Dash Pot Sub-Assy[10.1994 - 07.1997] 1UZFE..UCF20 |
22202-50040 |
US $75.71 |
||
|
22210
|
22210
22030-50080 Body Assy, ThrottleTHROTTLE [10.1994 - 08.1995] 1UZFE..UCF20..CND; 1UZFE..UCF20..USA W(TRACTION CONTROL) |
22030-50080 |
US $1,878.24 |
||
|
22210
|
22210
22030-50100 Body Assy, ThrottleTHROTTLE [08.1995 - 07.1997] 1UZFE..UCF20..CND; 1UZFE..UCF20..USA W(TRACTION CONTROL) |
22030-50100 |
US $1,892.80 |
||
|
22270
|
22270
22270-50020
Valve Assy, Idle Speed Control(For Thlottle Body)
[10.1994 - 07.1997] 1UZFE..UCF20 |
22270-50020 |
— | ||
|
22270A
|
22270A
17341-50080
Hose, Air, No.1(For Idle Speed Control Valve)
[10.1994 - 07.1997] 1UZFE..UCF20 |
17341-50080 |
— | ||
|
22270B
|
22270B
90467-26006
Clamp Or Clip(For Air Hose, No.1)
[10.1994 - 07.1997] 1UZFE..UCF20 |
90467-26006 |
— | ||
| replacement | |||||
|
22270B
|
22270B
96134-52600 Clip Or Clamp(For Ventilation Hose)[10.1994 - 07.1997] 1UZFE..UCF20 |
96134-52600 |
from US $3.51 |
||
|
22270J
|
22270J
99555-10200 Hose, Water By-Pass[10.1994 - 07.1997] 1UZFE..UCF20 |
99555-10200 |
from US $5.12 |
||
|
22271
|
22271
22271-50010 Gasket, Throttle Body[10.1994 - 07.1997] 1UZFE..UCF20 |
22271-50010 |
US $5.92 |
||
|
22278
|
22278
22278-50011
Gasket, Idle Speed Control Valve
[10.1994 - 07.1997] 1UZFE..UCF20 |
22278-50011 |
— | ||
|
23250
|
23250
23209-50020 Injector Assy, Fuel[10.1994 - 07.1997] 1UZFE..UCF20 |
23209-50020 |
US $256.18 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[10.1994 - 07.1997] 1UZFE..UCF20 |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[10.1994 -] 1UZFE..UCF20 |
90480-13005 |
from US $2.50 |
||
|
23270
|
23270
23270-50010
Damper Assy, Fuel Pressure Pulsation
[10.1994 - 07.1997] 1UZFE..UCF20 |
23270-50010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-50012 Damper Assy, Fuel Pressure Pulsation[10.1994 - 07.1997] 1UZFE..UCF20 |
23270-50012 |
from US $76.01 |
||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[10.1994 - 07.1997] 1UZFE..UCF20 DAMPER SIDE |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
90430-12026 Gasket[10.1994 - 07.1997] 1UZFE..UCF20 DELIVERY PIPE SIDE |
90430-12026 |
from US $0.88 |
||
|
23271F
|
23271F
23271-50070
Hose, Fuel
[10.1994 - 08.1995] 1UZFE..UCF20 NO.2 |
23271-50070 |
— | ||
|
23271F
|
23271F
23271-50080 Hose, FuelFUEL [08.1995 - 07.1997] 1UZFE..UCF20 NO.2 |
23271-50080 |
US $16.31 |
||
|
23271F
|
23271F
23271-50100
Hose, Fuel
[10.1994 - 10.1994] 1UZFE..UCF20 NO.1 |
23271-50100 |
— | ||
|
23271F
|
23271F
23271-50101
Hose, Fuel
[10.1994 - 07.1997] 1UZFE..UCF20 NO.1 |
23271-50101 |
— | ||
|
23280
|
23280
23280-59015
Regulator Assy, Fuel Pressure
[10.1994 - 07.1997] 1UZFE..UCF20 |
23280-59015 |
— | ||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[10.1994 - 07.1997] 1UZFE..UCF20 |
23291-41010 |
from US $2.87 |
||
|
23300P
|
23300P
23300-50060 Filter, Fuel(For Efi)[10.1994 -] 1UZFE..UCF20 NO.1 |
23300-50060 |
from US $69.16 |
||
|
23801G
|
23801G
90401-12023 Bolt, Union(For Fuel Pipe)[10.1994 - 07.1997] 1UZFE..UCF20 |
90401-12023 |
US $5.44 |
||
|
23801H
|
23801H
90430-12026 Gasket[10.1994 - 07.1997] 1UZFE..UCF20 |
90430-12026 |
from US $0.88 |
||
|
23801P
|
23801P
23801-50010
Pipe Sub-Assy, Fuel, No.1
[10.1994 - 07.1997] 1UZFE..UCF20 |
23801-50010 |
— | ||
|
23803B
|
23803B
23803-50061 Pipe Sub-Assy, Fuel, No.3[10.1994 - 10.1994] 1UZFE..UCF20 |
23803-50061 |
US $58.53 |
||
|
23803B
|
23803B
23803-50062 Pipe Sub-Assy, Fuel, No.3[10.1994 - 09.1995] 1UZFE..UCF20 |
23803-50062 |
US $58.53 |
||
| replacement | |||||
|
23803B
|
23803B
23803-50063 Pipe Sub-Assy, Fuel, No.3[10.1994 - 09.1995] 1UZFE..UCF20 |
23803-50063 |
US $58.68 |
||
|
23803B
|
23803B
23803-50063 Pipe Sub-Assy, Fuel, No.3[09.1995 - 07.1997] 1UZFE..UCF20 |
23803-50063 |
US $58.68 |
||
|
23807B
|
23807B
90923-01407
Hose, Fuel Delivery Pipe
[10.1994 - 07.1997] 1UZFE..UCF20 |
90923-01407 |
— | ||
|
23807V
|
23807V
90561-08029 Spacer, No.1(For Delivery Pipe)[10.1994 -] 1UZFE..UCF20 |
90561-08029 |
from US $1.60 |
||
|
23814B
|
23814B
23814-50030 Pipe, Fuel Delivery[10.1994 - 07.1997] 1UZFE..UCF20 |
23814-50030 |
US $101.92 |
||
| replacement | |||||
|
23814B
|
23814B
23814-50031 Pipe, Fuel Delivery[10.1994 - 07.1997] 1UZFE..UCF20 |
23814-50031 |
US $101.92 |
||
|
23815
|
23815
23815-50020 Pipe, Fuel Delivery, No.2[10.1994 - 07.1997] 1UZFE..UCF20 |
23815-50020 |
US $131.04 |
||
| replacement | |||||
|
23815
|
23815
23815-50021 Pipe, Fuel Delivery, No.2[10.1994 - 07.1997] 1UZFE..UCF20 |
23815-50021 |
US $131.04 |
||
|
827112A730
|
827112A730
82711-2A730 Clamp, Throttle Cable, No.1 |
82711-2A730 |
US $5.28 |
||
|
9007911021
|
9007911021
90079-11021 New Genuine Part |
90079-11021 |
US $1.92 |
||
|
9007911022
|
9007911022
90079-11022 New Genuine Part |
90079-11022 |
US $0.96 |
||
|
9007913009
|
9007913009
90079-13009 Screw, Dash Pot Adjusting |
90079-13009 |
US $1.46 |
||
|
9007922006
|
9007922006
90079-22006 New Genuine Part |
90079-22006 |
US $1.46 |
||
|
9007930006
|
9007930006
90079-30006 New Genuine Part |
90079-30006 |
US $1.05 |
||
|
9011906316
|
9011906316
90119-06316 New Genuine Part |
90119-06316 |
US $1.75 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.84 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017908203
|
9017908203
90179-08203
Nut
|
90179-08203 |
— | ||
| replacement | |||||
|
9017908203
|
9017908203
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9046713059
|
9046713059
90467-13059
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13059 |
— | ||
| replacement | |||||
|
9046713059
|
9046713059
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90467-13054 |
from US $0.96 |
||
|
9090119037
|
9090119037
90901-19037
New Genuine Part
|
90901-19037 |
— | ||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9613541300
|
9613541300
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
96135-41300 |
— | ||
| replacement | |||||
|
9613541300
|
9613541300
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
