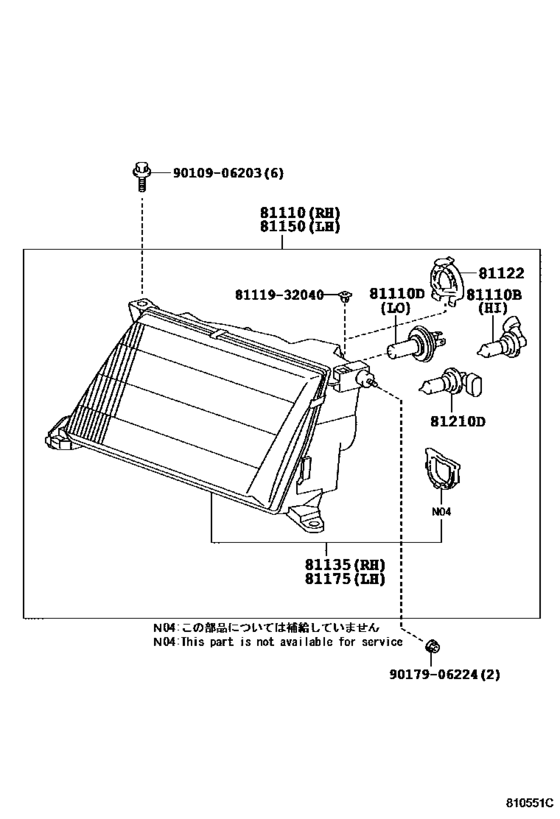

Headlamp ([10.1994 - 07.1997] (9410-9707)) Diagram Toyota LEXUS LS
- Year
- 1994 - 1997
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- CND
- Model
- LS400
- From
- 10.1994
- To
- 07.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-50100
Headlamp Assy, Rh
[10.1994 - 07.1997] UCF20 |
81110-50100 |
— | ||
|
81110B
|
81110B
90080-81041
Bulb(For Headlamp, No.1)
[10.1994 - 07.1995] UCF20 12V 65W |
90080-81041 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[10.1994 - 07.1995] UCF20 12V 65W |
90981-13046 |
from US $16.34 |
||
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[10.1994 - 07.1997] UCF20 12V65W(SAE),60W(ECE) |
90981-13046 |
from US $16.34 |
||
|
81110D
|
81110D
90981-13055
Bulb(For Headlamp, No.1)
[10.1994 - 07.1997] UCF20 12V 60/55W,HALOGEN |
90981-13055 |
— | ||
| replacement | |||||
|
81110D
|
81110D
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [10.1994 - 07.1997] UCF20 12V 60/55W,HALOGEN |
90981-13058 |
from US $30.40 |
||
|
81122
|
81122
81122-50100 Holder, Headlamp[10.1994 - 07.1997] UCF20 |
81122-50100 |
US $11.53 |
||
|
81135
|
81135
81130-50100 Unit Assy, Headlamp, RhHEADLAMP, RH [10.1994 - 07.1997] UCF20 |
81130-50100 |
US $538.72 |
||
|
81150
|
81150
81150-50100 Headlamp Assy, LhLH [10.1994 - 07.1997] UCF20 |
81150-50100 |
US $637.73 |
||
|
81175
|
81175
81170-50100 Unit Assy, Headlamp, LhHEADLAMP, LH [10.1994 - 07.1997] UCF20 |
81170-50100 |
US $538.72 |
||
|
81210D
|
81210D
90080-81040
Bulb(For Headlamp, No.1)
[10.1994 - 07.1995] UCF20 12V 51W |
90080-81040 |
— | ||
| replacement | |||||
|
81210D
|
81210D
90981-13047 Bulb (HB4)[10.1994 - 07.1995] UCF20 12V 51W |
90981-13047 |
from US $17.76 |
||
|
81210D
|
81210D
90981-13047 Bulb (HB4)[10.1994 - 07.1997] UCF20 12V 51W,HALOGEN |
90981-13047 |
from US $17.76 |
||
|
8111932040
|
8111932040
81119-32040 Screw, Headlamp |
81119-32040 |
US $2.48 |
||
|
9010906203
|
9010906203
90109-06203
Retainer, Headlamp
|
90109-06203 |
— | ||
| replacement | |||||
|
9010906203
|
9010906203
90109-06272 Retainer, Headlamp |
90109-06272 |
from US $0.90 |
||
|
9017906224
|
9017906224
90179-06224
Direct
|
90179-06224 |
— | ||
| replacement | |||||
|
9017906224
|
9017906224
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
