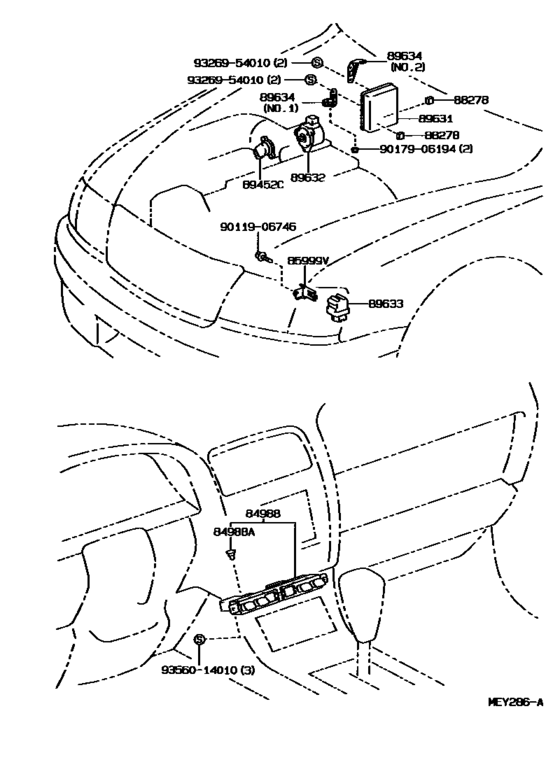

Traction Control ([10.1994 - 07.1997] (9410-9707)) Diagram Toyota LEXUS LS
- Year
- 1994 - 1997
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- CND
- Model
- LS400
- From
- 10.1994
- To
- 07.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84988
|
84988
84988-50100 Switch, Traction ControlTRACTION CONTROL [10.1994 - 07.1997] UCF20..CND W(HEADLAMP CLEANER & FRONT SEAT HEATER) |
84988-50100 |
US $96.10 |
||
|
84988A
|
84988A
84999-10650
Bulb (For Rear Fog Lamp Switch)
[10.1994 -] UCF20 14V 0.63W |
84999-10650 |
— | ||
|
85999V
|
85999V
85999-50170 Bracket, Relay[10.1994 - 08.1996] UCF20 |
85999-50170 |
US $4.66 |
||
|
88278
|
88278
88278-50010 Cushion, Skid Control Computer[10.1994 - 07.1997] UCF20 |
88278-50010 |
US $1.75 |
||
|
89452C
|
89452C
89452-32060 Sensor, Throttle Position (For E.f.i.)[10.1994 - 04.1995] UCF20 |
89452-32060 |
US $174.72 |
||
|
89452C
|
89452C
89452-50020
Sensor, Throttle Position
[08.1995 - 07.1997] UCF20 |
89452-50020 |
— | ||
|
89452C
|
89452C
89452-50040 Sensor, Throttle Position[04.1995 - 08.1995] UCF20 |
89452-50040 |
US $180.54 |
||
|
89631
|
89631
89631-50020 Computer, Traction Control[10.1994 - 07.1997] UCF20 |
89631-50020 |
US $1,383.20 |
||
|
89632
|
89632
89632-50020
Motor, Traction Throttle Valve
[10.1994 - 07.1997] UCF20 |
89632-50020 |
— | ||
|
89633
|
89633
89633-50030 Relay, Skid Control[10.1994 - 08.1996] UCF20 |
89633-50030 |
US $87.36 |
||
| replacement | |||||
|
89633
|
89633
28610-64110 Relay Assy, Glow Plug[10.1994 - 08.1996] UCF20 |
28610-64110 |
from US $63.94 |
||
|
89634
|
89634
89634-50050 Bracket, Traction Control Computer[10.1994 - 07.1997] UCF20 NO.1 |
89634-50050 |
US $6.41 |
||
|
89634
|
89634
89634-50060 Bracket, Traction Control Computer[10.1994 - 07.1997] UCF20 NO.2 |
89634-50060 |
US $6.41 |
||
|
9011906746
|
9011906746
90119-06746 New Genuine Part |
90119-06746 |
US $1.60 |
||
| replacement | |||||
|
9011906746
|
9011906746
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9017906194
|
9017906194
90179-06194
Nut (For Rear Wiper Arm Setting)
|
90179-06194 |
— | ||
| replacement | |||||
|
9017906194
|
9017906194
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9326954010
|
9326954010
93269-54010 SCREW |
93269-54010 |
US $0.96 |
||
|
9356014010
|
9356014010
93560-14010 SCREW |
93560-14010 |
US $0.96 |
||
