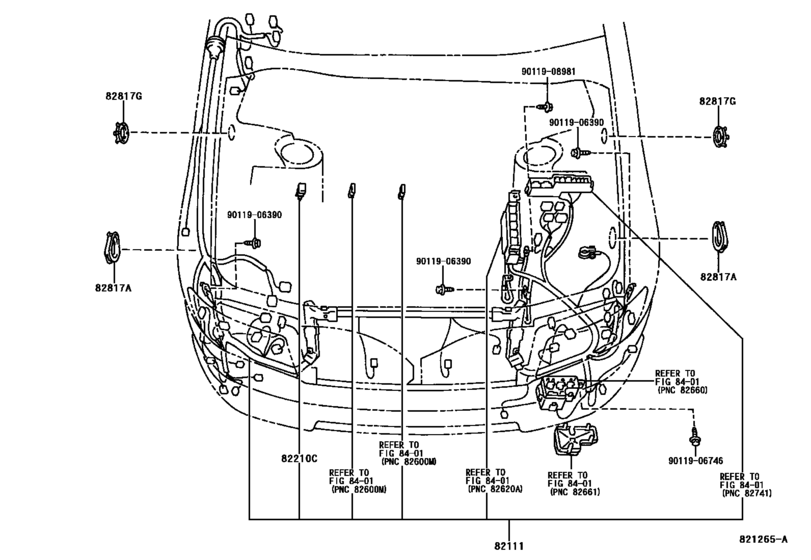

Wiring & Clamp ([10.1994 - ] ENGINE ROOM (9410- )) Diagram Toyota LEXUS LS
- Year
- 1994 - 1997
- Sales region
- Europe
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- V
- Model
- LS400
- From
- 10.1994
- To
- 07.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-50500 Wire, Engine Room MainENGINE ROOM MAIN [10.1994 - 08.1996] UCF20..V |
82111-50500 |
US $1,415.23 |
||
|
82111
|
82111
82111-50501 Wire, Engine Room MainENGINE ROOM MAIN [08.1996 - 07.1997] UCF20..V |
82111-50501 |
US $1,249.25 |
||
|
82210C
|
82210C
90982-08202 Fusible Link[10.1994 -] UCF20 60A,TERMINAL:MALE |
90982-08202 |
US $11.20 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[10.1994 -] UCF20 80A,TERMINAL:MALE |
90982-08203 |
from US $7.36 |
||
|
82210C
|
82210C
90982-08228 Fusible Link[10.1994 -] UCF20 50A,TERMINAL:MALE |
90982-08228 |
from US $9.28 |
||
|
82210C
|
82210C
90982-08257 Fusible Link[10.1994 -] UCF20 40A,TERMINAL:MALE |
90982-08257 |
US $11.20 |
||
|
82210C
|
82210C
90982-08274 Fusible Link[10.1994 -] UCF20 120A,TERMINAL:MALE |
90982-08274 |
from US $7.68 |
||
|
82817A
|
82817A
82817-5A790 Protector, Wiring Harness, No.1[10.1994 -] UCF20 |
82817-5A790 |
US $6.12 |
||
|
82817G
|
82817G
82817-50530
Protector, Wiring Harness, No.1
[10.1994 -] UCF20 |
82817-50530 |
— | ||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9011906746
|
9011906746
90119-06746 New Genuine Part |
90119-06746 |
US $1.60 |
||
| replacement | |||||
|
9011906746
|
9011906746
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
9011908981
|
9011908981
90119-08981 New Genuine Part |
90119-08981 |
US $2.33 |
||
