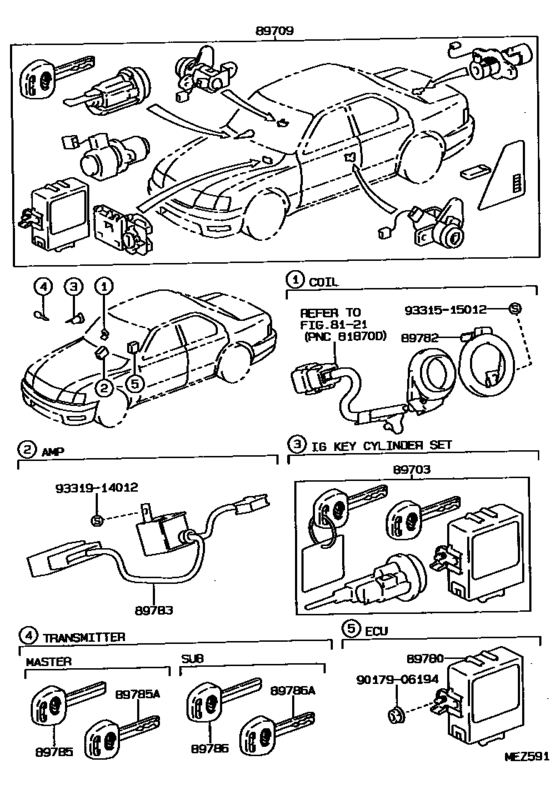

Anti-Theft Device ([08.1995 - 07.1997] (9508-9707)RHD) Diagram Toyota LEXUS LS
- Year
- 1994 - 1997
- Sales region
- General
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- GEN
- Model
- LS400
- From
- 10.1994
- To
- 07.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89703
|
89703
89703-50010 Cylinder & Key Set, Ignition W/transponderIGNITION W/TRANSPONDER [08.1996 - 07.1997] UCF20..RHD..(ARL,EUR); UCF20..GEN HONG KONG SPEC |
89703-50010 |
US $393.12 |
||
|
89709
|
89709
89709-50010 Computer Set, Transponder KeyTRANSPONDER KEY [08.1996 - 07.1997] UCF20..RHD..(ARL,EUR); UCF20..GEN HONG KONG SPEC |
89709-50010 |
US $771.68 |
||
|
89780
|
89780
89780-50010
Computer Assy, Transponder Key
[08.1996 - 07.1997] UCF20..RHD..(ARL,EUR); UCF20..GEN HONG KONG SPEC |
89780-50010 |
— | ||
|
89782
|
89782
89782-30010 Coil, Transponder Key[08.1996 - 07.1997] UCF20..GEN HONG KONG SPEC |
89782-30010 |
US $17.33 |
||
|
89783
|
89783
89783-50010
Amplifier, Transponder Key
[08.1996 - 07.1997] UCF20..RHD..(ARL,EUR); UCF20..GEN HONG KONG SPEC |
89783-50010 |
— | ||
|
89785
|
89785
89785-30020
Transmitter, Transponder Key Master
[08.1996 - 07.1997] UCF20..ARL,EUR; UCF20..GEN HONG KONG SPEC |
89785-30020 |
— | ||
|
89785A
|
89785A
89785-50010 Transmitter, Transponder Cut Key MasterTRANSPONDER CUT KEY MASTER [08.1996 - 07.1997] UCF20..ARL,EUR; UCF20..GEN HONG KONG SPEC |
89785-50010 |
US $165.98 |
||
|
89786
|
89786
89786-30020 Transmitter, Transponder Key SubTRANSPONDER KEY SUB [08.1996 - 07.1997] UCF20..ARL,EUR; UCF20..GEN HONG KONG SPEC |
89786-30020 |
US $168.90 |
||
|
89786A
|
89786A
89786-50010 Transmitter, Transponder Cut Key SubTRANSPONDER CUT KEY SUB [08.1996 - 07.1997] UCF20..ARL,EUR; UCF20..GEN HONG KONG SPEC |
89786-50010 |
US $168.90 |
||
|
9017906194
|
9017906194
90179-06194
Nut (For Rear Wiper Arm Setting)
|
90179-06194 |
— | ||
| replacement | |||||
|
9017906194
|
9017906194
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.80 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
