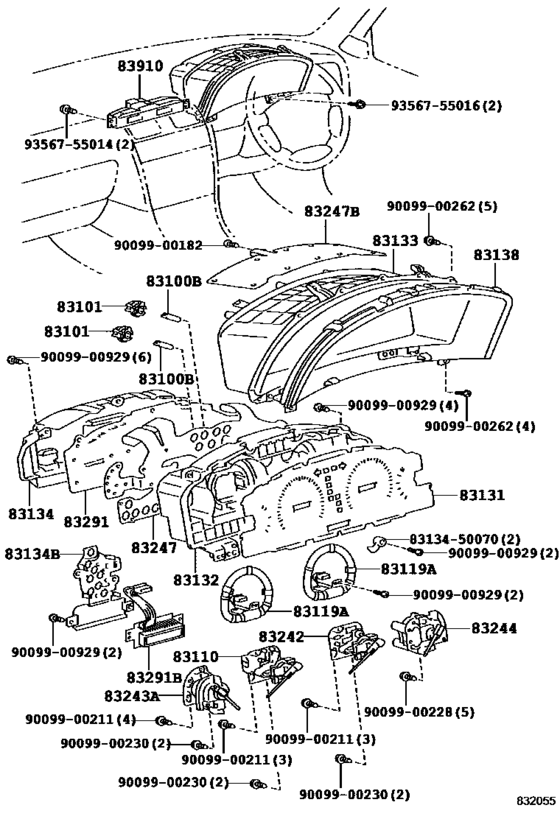

Meter ([10.1994 - 07.1997] (9410-9707)RHD) Diagram Toyota LEXUS LS
- Year
- 1994 - 1997
- Sales region
- General
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- GEN
- Model
- LS400
- From
- 10.1994
- To
- 07.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83101-20080
Bulb, Combination Meter, No.1
[08.1996 - 07.1997] UCF20..GEN,V 12V 1.4W,W(SOCKET) |
83101-20080 |
— | ||
|
83100B
|
83100B
83109-30070 Bulb, Combination Meter, No.1[10.1994 - 08.1996] UCF20..ARL,GEN,V 14V 2.0W,W/O SOCKET |
83109-30070 |
US $2.45 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1996 - 07.1997] UCF20..ARL,GEN 12V 1.2W W/O SOCKET; UCF20..RHD..EUR 12V 1.2W W/O SOCKET,SOUTH AFRICA SPEC |
90981-11018 |
from US $2.07 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1996 - 07.1997] UCF20..ARL,GEN BULB:12V 1.4W; UCF20..RHD..EUR SOUTH AFRICA SPEC,BULB:12V 1.4W |
83101-14040 |
US $2.93 |
||
|
83101
|
83101
83101-30050
Bulb, Combination Meter, No.1
[10.1994 - 08.1996] UCF20..ARL,GEN,V BULB:14V 2.0W |
83101-30050 |
— | ||
|
83110
|
83110
83110-50450 Speedometer Assy[10.1994 - 07.1997] UCF20..GEN |
83110-50450 |
US $366.91 |
||
|
83119A
|
83119A
83119-50110
Tube,cathode
[10.1994 -] UCF20 SPEEDOMETER SIDE |
83119-50110 |
— | ||
|
83119A
|
83119A
83119-50130
Tube,cathode
[10.1994 -] UCF20 TACHOMETER SIDE |
83119-50130 |
— | ||
|
83131
|
83131
83131-5A410
Dial, Meter, No.1
[10.1994 - 08.1996] UCF20..GEN W(TRACTION CONTROL) |
83131-5A410 |
— | ||
|
83131
|
83131
83131-5A411
Dial, Meter, No.1
[08.1996 - 07.1997] UCF20..GEN W(TRACTION CONTROL) |
83131-5A411 |
— | ||
|
83131
|
83131
83131-5A430
Dial, Meter, No.1
[10.1994 - 08.1996] UCF20..GEN |
83131-5A430 |
— | ||
| replacement | |||||
|
83131
|
83131
83131-5A410
Dial, Meter, No.1
[10.1994 - 08.1996] UCF20..GEN |
83131-5A410 |
— | ||
|
83131
|
83131
83131-5A431
Dial, Meter, No.1
[08.1996 - 07.1997] UCF20..GEN |
83131-5A431 |
— | ||
|
83132
|
83132
83132-50290
Case, Combination Meter
[10.1994 - 08.1996] UCF20..RHD |
83132-50290 |
— | ||
|
83132
|
83132
83132-50291
Case, Combination Meter
[08.1996 - 07.1997] UCF20..RHD |
83132-50291 |
— | ||
|
83133
|
83133
83133-50150
Plate, Combination Meter, No.1
[10.1994 -] UCF20..RHD |
83133-50150 |
— | ||
|
83134
|
83134
83134-50370
Cover, Combination Meter, No.1
[10.1994 - 07.1997] UCF20..RHD |
83134-50370 |
— | ||
|
83134B
|
83134B
83134-50410
Cover, Combination Meter, No.2
[10.1994 - 07.1997] UCF20..RHD |
83134-50410 |
— | ||
|
83138
|
83138
83138-50110
Glass, Speedometer
[10.1994 -] UCF20..RHD |
83138-50110 |
— | ||
|
83242
|
83242
83242-50070 Tachometer Assy, Engine[10.1994 - 07.1997] UCF20 |
83242-50070 |
US $484.85 |
||
|
83243A
|
83243A
83243-50130
Gauge Sub-Assy, Fuel Receiver
[10.1994 - 07.1997] UCF20..RHD |
83243-50130 |
— | ||
|
83244
|
83244
83244-50170
Gauge Sub-Assy, Water Temperature Receiver
[10.1994 - 07.1997] UCF20..RHD |
83244-50170 |
— | ||
|
83247
|
83247
83247-5A450
Plate, Meter Circuit
[10.1994 - 08.1996] UCF20..RHD |
83247-5A450 |
— | ||
|
83247
|
83247
83247-5A451
Plate, Meter Circuit
[08.1996 - 07.1997] UCF20..RHD |
83247-5A451 |
— | ||
|
83247B
|
83247B
83247-5A510
Plate, Meter Circuit, No.2
[10.1994 -] UCF20 |
83247-5A510 |
— | ||
|
83291
|
83291
83291-50160
Computer, Combination Meter
[10.1994 - 08.1996] UCF20..GEN |
83291-50160 |
— | ||
|
83291
|
83291
83291-50161 Computer, Combination MeterCOMBINATION METER [08.1996 - 11.1996] UCF20..GEN |
83291-50161 |
US $1,291.47 |
||
| replacement | |||||
|
83291
|
83291
83291-50162 Computer, Combination MeterCOMBINATION METER [08.1996 - 11.1996] UCF20..GEN |
83291-50162 |
US $1,291.47 |
||
|
83291
|
83291
83291-50162 Computer, Combination MeterCOMBINATION METER [11.1996 - 07.1997] UCF20..GEN |
83291-50162 |
US $1,291.47 |
||
|
83291B
|
83291B
83247-5A490 Computer Assy[10.1994 - 07.1997] UCF20..RHD |
83247-5A490 |
US $138.32 |
||
|
83910
|
83910
83910-50010 Clock Assy[10.1994 - 10.1995] UCF20 |
83910-50010 |
US $493.58 |
||
| replacement | |||||
|
83910
|
83910
83910-50012 Clock Assy[10.1994 - 10.1995] UCF20 |
83910-50012 |
US $495.04 |
||
|
83910
|
83910
83910-50011 Clock Assy[10.1995 - 06.1996] UCF20 |
83910-50011 |
US $493.58 |
||
| replacement | |||||
|
83910
|
83910
83910-50012 Clock Assy[10.1995 - 06.1996] UCF20 |
83910-50012 |
US $495.04 |
||
|
83910
|
83910
83910-50012 Clock Assy[06.1996 - 07.1997] UCF20 |
83910-50012 |
US $495.04 |
||
|
8313450070
|
8313450070
83134-50070
Cover, Speedometer
|
83134-50070 |
— | ||
|
9009900182
|
9009900182
90099-00182
New Genuine Part
|
90099-00182 |
— | ||
|
9009900211
|
9009900211
90099-00211
New Genuine Part
|
90099-00211 |
— | ||
|
9009900228
|
9009900228
90099-00228
New Genuine Part
|
90099-00228 |
— | ||
|
9009900230
|
9009900230
90099-00230
New Genuine Part
|
90099-00230 |
— | ||
|
9009900262
|
9009900262
90099-00262
SCREW TAPPING
|
90099-00262 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
