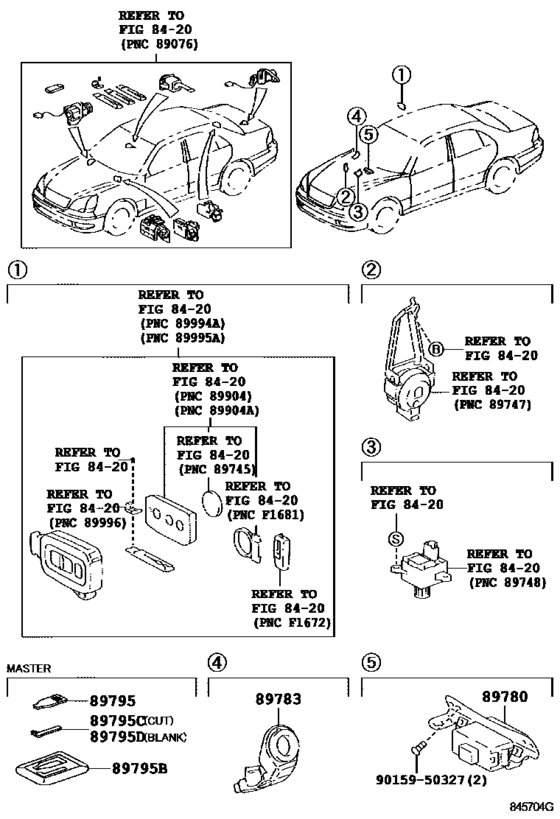

Anti-Theft Device ([07.2003 - ] SMART KEY SYSTEM &IMMOBILIZER (0307- )) Diagram Toyota LEXUS LS
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- UCF30
- ENGINE
- 3UZFE
- DESTINATION
- USA
- Model
- LS430
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
- Vehicle Model
- LS430
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89780
|
89780
89780-50050 Computer Assy, Transponder Key[07.2003 -] UCF30 |
89780-50050 |
US $231.50 |
||
|
89783
|
89783
89783-50082 Amplifier, Transponder Key[07.2003 - 08.2006] UCF30 W(SMART KEY SYSTEM) |
89783-50082 |
US $147.06 |
||
| replacement | |||||
|
89783
|
89783
89783-50083 Amplifier, Transponder Key[07.2003 - 08.2006] UCF30 W(SMART KEY SYSTEM) |
89783-50083 |
US $147.06 |
||
|
89783
|
89783
89783-50090 Amplifier, Transponder Key[07.2003 - 08.2006] UCF30 |
89783-50090 |
US $147.06 |
||
| replacement | |||||
|
89783
|
89783
89783-50091 Amplifier, Transponder Key[07.2003 - 08.2006] UCF30 |
89783-50091 |
US $103.38 |
||
|
89795
|
89795
89795-50030 Card, Transponder Key[07.2003 -] UCF30 |
89795-50030 |
US $165.98 |
||
|
89795B
|
89795B
89795-50010
Card, Spare Key
[07.2003 -] UCF30 |
89795-50010 |
— | ||
|
89795B
|
89795B
89795-50020
Card, Transponder Key
[07.2003 -] UCF30..USA KOREA SPEC |
89795-50020 |
— | ||
|
89795B
|
89795B
89795-50060 Base, Transponder Card KeyTRANSPONDER CARD KEY [07.2003 -] UCF30 W(SMART KEY SYSTEM) |
89795-50060 |
US $183.46 |
||
|
89795B
|
89795B
89795-50080
Base, Transponder Card Key
[07.2003 -] UCF30..USA KOREA SPEC & W(SMART KEY SYSTEM) |
89795-50080 |
— | ||
|
89795C
|
89795C
69515-50130 Key, BlankCUT [07.2003 - 08.2006] UCF30..USA |
69515-50130 |
US $126.67 |
||
|
89795C
|
89795C
69515-50190 Key, Transponder Key Card CutTRANSPONDER KEY CARD CUT [07.2003 - 08.2006] UCF30 W(SMART KEY SYSTEM) |
69515-50190 |
US $154.34 |
||
|
89795D
|
89795D
90999-00253
Key, Transponder Card Blank
[07.2003 -] UCF30 |
90999-00253 |
— | ||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
