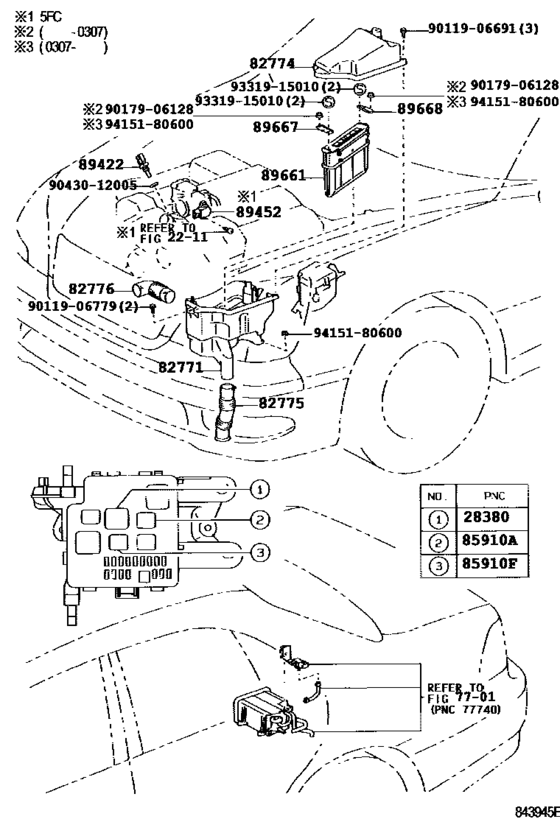

Electronic Fuel Injection System ([08.2000 - ] (0008- )) Diagram Toyota LEXUS LS
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- UCF30
- ENGINE
- 3UZFE
- DESTINATION
- USA
- Model
- LS430
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
- Vehicle Model
- LS430
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28380
|
28380
90987-03003 Relay Assy, Fuel Pump[07.2003 -] 3UZFE..UCF30 |
90987-03003 |
from US $24.14 |
||
|
82771
|
82771
82771-50010 Box, Engine Room Ecu[07.2003 -] UCF30 |
82771-50010 |
US $164.53 |
||
|
82774
|
82774
82774-50010 Cover, Engine Room Ecu[07.2003 -] UCF30 |
82774-50010 |
US $64.50 |
||
|
82775
|
82775
82775-50010 Duct, Engine Room Ecu Inlet[07.2003 -] UCF30 |
82775-50010 |
US $22.28 |
||
|
82776
|
82776
82776-50010 Duct, Engine Room Ecu Outlet[07.2003 -] UCF30 |
82776-50010 |
US $16.60 |
||
|
85910A
|
85910A
90987-02012 Relay, Ignition, No.1[07.2003 -] UCF30 |
90987-02012 |
from US $27.85 |
||
|
85910F
|
85910F
90987-02012 Relay, Ignition, No.1[07.2003 -] UCF30 |
90987-02012 |
from US $27.85 |
||
|
89422
|
89422
89422-30030 Sensor, Water Temperature (For E.f.i.)[07.2003 - 08.2006] UCF30 |
89422-30030 |
from US $47.92 |
||
|
89661
|
89661
89661-50690
Computer, Engine Control
[07.2003 - 01.2004] UCF30 PART NUMBER LABEL=89661-50690 |
89661-50690 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-50693 Computer, Engine Control[07.2003 - 01.2004] UCF30 PART NUMBER LABEL=89661-50690 |
89661-50693 |
from US $1,566.51 |
||
|
89661
|
89661
89661-50691
Computer, Engine Control
[01.2004 - 04.2004] UCF30 PART NUMBER LABEL=89661-50691 |
89661-50691 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-50693 Computer, Engine Control[01.2004 - 04.2004] UCF30 PART NUMBER LABEL=89661-50691 |
89661-50693 |
from US $1,566.51 |
||
|
89661
|
89661
89661-50692
Computer, Engine Control
[05.2004 - 08.2004] UCF30 PART NUMBER LABEL=89661-50692 |
89661-50692 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-50693 Computer, Engine Control[05.2004 - 08.2004] UCF30 PART NUMBER LABEL=89661-50692 |
89661-50693 |
from US $1,566.51 |
||
|
89661
|
89661
89661-50770
Computer, Engine Control
[07.2003 - 07.2004] UCF30..USA PART NUMBER LABEL=89661-50770 |
89661-50770 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-50860 Computer, Engine Control[07.2003 - 07.2004] UCF30..USA PART NUMBER LABEL=89661-50770 |
89661-50860 |
US $1,878.24 |
||
|
89661
|
89661
89661-50780 Computer, Engine Control[08.2004 - 10.2004] UCF30 PART NUMBER LABEL=89661-50780 |
89661-50780 |
US $1,878.24 |
||
| replacement | |||||
|
89661
|
89661
89661-50781 Computer, Engine Control[08.2004 - 10.2004] UCF30 PART NUMBER LABEL=89661-50780 |
89661-50781 |
US $1,942.30 |
||
|
89661
|
89661
89661-50781 Computer, Engine Control[11.2004 - 06.2005] UCF30 PART NUMBER LABEL=89661-50781 |
89661-50781 |
US $1,942.30 |
||
|
89661
|
89661
89661-50860 Computer, Engine Control[08.2004 - 07.2005] UCF30..USA PART NUMBER LABEL=89661-50860 |
89661-50860 |
US $1,878.24 |
||
|
89661
|
89661
89661-50870
Computer, Engine Control
[07.2005 - 10.2005] UCF30 PART NUMBER LABEL=89661-50870 |
89661-50870 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-50872
Computer, Engine Control
[07.2005 - 10.2005] UCF30 PART NUMBER LABEL=89661-50870 |
89661-50872 |
— | ||
|
89661
|
89661
89661-50871
Computer, Engine Control
[11.2005 - 07.2006] UCF30 PART NUMBER LABEL=89661-50871 |
89661-50871 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-50872
Computer, Engine Control
[11.2005 - 07.2006] UCF30 PART NUMBER LABEL=89661-50871 |
89661-50872 |
— | ||
|
89661
|
89661
89661-50872
Computer, Engine Control
[08.2006 -] UCF30 PART NUMBER LABEL=89661-50872 |
89661-50872 |
— | ||
|
89661
|
89661
89661-50880 Computer, Engine ControlENGINE CONTROL [07.2005 -] UCF30..USA PART NUMBER LABEL=89661-50880 |
89661-50880 |
US $1,980.16 |
||
|
89667
|
89667
89667-50030 Bracket, Engine Control Computer[07.2003 - 06.2005] UCF30 |
89667-50030 |
US $6.41 |
||
|
89668
|
89668
89668-50030 Bracket, Engine Control Computer, No.2[07.2003 - 06.2005] UCF30 |
89668-50030 |
US $6.41 |
||
|
9011906691
|
9011906691
90119-06691 BOLT WWASHER |
90119-06691 |
US $1.12 |
||
|
9011906779
|
9011906779
90119-06779 BOLT W-WASHER |
90119-06779 |
from US $0.72 |
||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.12 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
