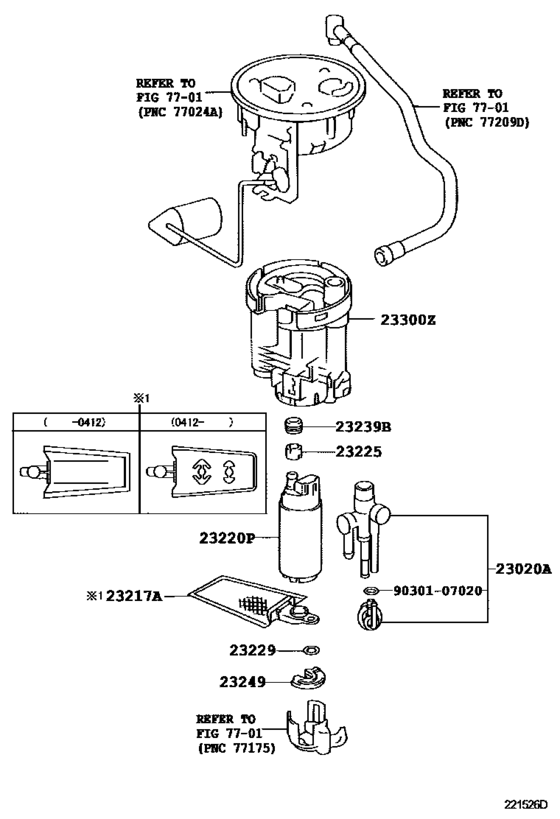

Fuel Injection System ([07.2003 - ] (0307- )) Diagram Toyota LEXUS LS
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- UCF30
- ENGINE
- 3UZFE
- DESTINATION
- USA
- Model
- LS430
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
- Vehicle Model
- LS430
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23020A
|
23020A
23020-46030 Regulator Assy, Fuel Pressure W/jet Pump[07.2003 - 08.2006] 3UZFE..UCF30 |
23020-46030 |
from US $82.47 |
||
|
23217A
|
23217A
23217-0D070 Filter, Fuel Pump[12.2004 - 08.2006] 3UZFE..UCF30 |
23217-0D070 |
from US $8.17 |
||
|
23217A
|
23217A
23217-74021 Filter, Fuel Pump[07.2003 - 12.2004] 3UZFE..UCF30 |
23217-74021 |
from US $10.22 |
||
|
23220P
|
23220P
23221-50110
Pump Assy, Fuel
[07.2003 -] 3UZFE..UCF30 |
23221-50110 |
— | ||
| replacement | |||||
|
23220P
|
23220P
23221-31150 Pump Assy, FuelFUEL [07.2003 -] 3UZFE..UCF30 |
23221-31150 |
from US $319.62 |
||
|
23225
|
23225
23225-21010 Spacer, Fuel Pump[07.2003 - 08.2006] 3UZFE..UCF30 |
23225-21010 |
from US $1.23 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[07.2003 -] 3UZFE..UCF30 |
23229-16010 |
from US $0.88 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[07.2003 -] 3UZFE..UCF30 |
23219-03010 |
US $2.55 |
||
|
23239B
|
23239B
23239-21010 Seal, Fuel Pump Filter[07.2003 - 08.2006] 3UZFE..UCF30 |
23239-21010 |
from US $1.03 |
||
|
23249
|
23249
23249-46180 Rubber, Cushion(For Fuel Pump)[07.2003 - 08.2006] 3UZFE..UCF30 |
23249-46180 |
from US $9.87 |
||
|
23300Z
|
23300Z
23300-21010 Filter Assy, Fuel[07.2003 - 08.2006] 3UZFE..UCF30 |
23300-21010 |
from US $63.43 |
||
|
9030107020
|
9030107020
90301-07020 Ring, O(For Fuel Pressure Regulator) |
90301-07020 |
from US $2.69 |
||
