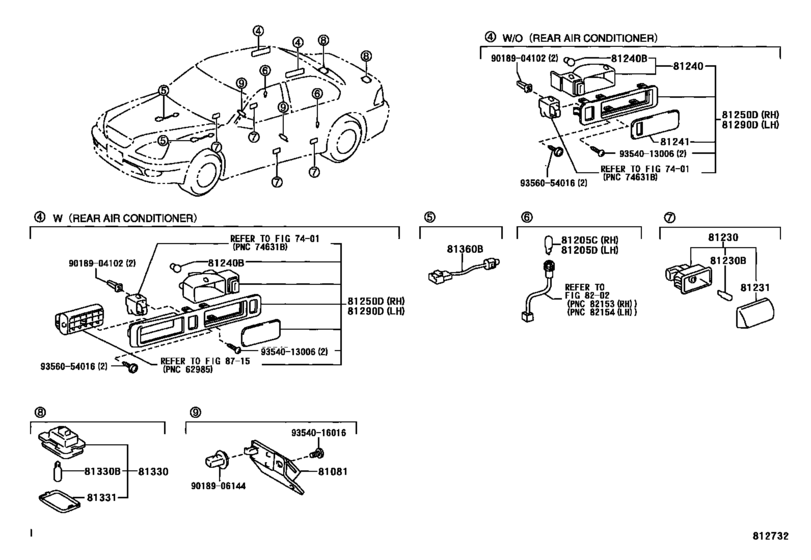

Interior Lamp ([07.2003 - ] (0307- )) Diagram Toyota LEXUS LS
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- UCF30
- ENGINE
- 3UZFE
- DESTINATION
- USA
- Model
- LS430
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
- Vehicle Model
- LS430
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81081
|
81081
81081-50010 Lamp Sub-Assy, Interior Illumination[07.2003 -] UCF30 |
81081-50010 |
US $25.04 |
||
|
81205C
|
81205C
90981-11041 Bulb, Ash Receptacle Lamp[07.2003 -] UCF30 |
90981-11041 |
US $2.24 |
||
|
81205D
|
81205D
90981-11041 Bulb, Ash Receptacle Lamp[07.2003 -] UCF30 |
90981-11041 |
US $2.24 |
||
|
81230
|
81230
81230-50050 Lamp Assy, Courtesy[07.2003 -] UCF30 |
81230-50050 |
US $20.27 |
||
|
81230B
|
81230B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[07.2003 -] UCF30 12V 3.8W |
90981-11020 |
from US $2.72 |
||
|
81231
|
81231
81231-50050 Lens, Courtesy Lamp[07.2003 -] UCF30 |
81231-50050 |
from US $7.66 |
||
|
81240
|
81240
81240-50100-A0 Lamp Assy, Room, No.1[07.2003 - 08.2006] UCF30 ECRU,TRIM00,08,RH |
81240-50100-A0 |
US $36.25 |
||
|
81240
|
81240
81240-50100-A1 Lamp Assy, Room, No.1[07.2003 - 08.2006] UCF30 NEW IVORY,TRIM07,RH |
81240-50100-A1 |
US $36.25 |
||
|
81240
|
81240
81240-50100-B0 Lamp Assy, Room, No.1[07.2003 - 08.2006] UCF30 NEW GRAY,TRIM1#,21,24,25,RH |
81240-50100-B0 |
US $36.25 |
||
|
81240
|
81240
81240-50110-A0 Lamp Assy, Room, No.1[07.2003 - 08.2006] UCF30 ECRU,TRIM00,08,LH |
81240-50110-A0 |
US $36.25 |
||
|
81240
|
81240
81240-50110-A1 Lamp Assy, Room, No.1[07.2003 - 08.2006] UCF30 NEW IVORY,TRIM07,LH |
81240-50110-A1 |
US $36.25 |
||
|
81240
|
81240
81240-50110-B0 Lamp Assy, Room, No.1[07.2003 - 08.2006] UCF30 NEW GRAY,TRIM1#,21,24,25,LH |
81240-50110-B0 |
US $36.25 |
||
|
81240B
|
81240B
90981-12020 Bulb, Room Lamp, No.1[07.2003 -] UCF30 12V 8W |
90981-12020 |
from US $2.24 |
||
|
81241
|
81241
81241-50110 Lens, Room Lamp, No.1[07.2003 -] UCF30 RH |
81241-50110 |
US $7.43 |
||
|
81241
|
81241
81241-50120 Lens, Room Lamp, No.1[07.2003 -] UCF30 LH |
81241-50120 |
US $7.43 |
||
|
81250D
|
81250D
81250-50130-A0 Lamp Assy, Rear Room, Rh[07.2003 - 08.2006] UCF30 W(REAR AIR CONDITIONER),ECRU,TRIM00,08 |
81250-50130-A0 |
US $62.46 |
||
|
81250D
|
81250D
81250-50130-A1 Lamp Assy, Rear Room, Rh[07.2003 - 08.2006] UCF30 W(REAR AIR CONDITIONER),NEW IVORY,TRIM07 |
81250-50130-A1 |
US $62.46 |
||
|
81250D
|
81250D
81250-50130-B0 Lamp Assy, Rear Room, Rh[07.2003 - 08.2006] UCF30 W(REAR AIR CONDITIONER),NEW GRAY,TRIM1#,21,24,25 |
81250-50130-B0 |
US $62.46 |
||
|
81250D
|
81250D
81250-50140-A0 Lamp Assy, Rear Room, Rh[07.2003 - 08.2006] UCF30 ECRU,TRIM00,08 |
81250-50140-A0 |
US $51.25 |
||
|
81250D
|
81250D
81250-50140-A1 Lamp Assy, Rear Room, Rh[07.2003 - 08.2006] UCF30 NEW IVORY,TRIM07 |
81250-50140-A1 |
US $51.25 |
||
| replacement | |||||
|
81250D
|
81250D
81250-50140-B0 Lamp Assy, Rear Room, Rh[07.2003 - 08.2006] UCF30 NEW IVORY,TRIM07 |
81250-50140-B0 |
US $51.25 |
||
|
81250D
|
81250D
81250-50140-B0 Lamp Assy, Rear Room, Rh[07.2003 - 08.2006] UCF30 NEW GRAY,TRIM1#,21,24,25 |
81250-50140-B0 |
US $51.25 |
||
|
81290D
|
81290D
81290-50130-A0 Lamp Assy, Rear Room, Lh[07.2003 - 08.2006] UCF30 W(REAR AIR CONDITIONER),ECRU,TRIM00,08 |
81290-50130-A0 |
US $62.46 |
||
|
81290D
|
81290D
81290-50130-A1 Lamp Assy, Rear Room, Lh[07.2003 - 08.2006] UCF30 W(REAR AIR CONDITIONER),NEW IVORY,TRIM07 |
81290-50130-A1 |
US $62.46 |
||
|
81290D
|
81290D
81290-50130-B0 Lamp Assy, Rear Room, Lh[07.2003 - 08.2006] UCF30 W(REAR AIR CONDITIONER),NEW GRAY,TRIM1#,21,24,25 |
81290-50130-B0 |
US $62.46 |
||
|
81290D
|
81290D
81290-50140-A0 Lamp Assy, Rear Room, Lh[07.2003 - 08.2006] UCF30 ECRU,TRIM00,08 |
81290-50140-A0 |
US $51.25 |
||
|
81290D
|
81290D
81290-50140-A1 Lamp Assy, Rear Room, Lh[07.2003 - 08.2006] UCF30 NEW IVORY,TRIM07 |
81290-50140-A1 |
US $51.25 |
||
| replacement | |||||
|
81290D
|
81290D
81290-50140-B0 Lamp Assy, Rear Room, Lh[07.2003 - 08.2006] UCF30 NEW IVORY,TRIM07 |
81290-50140-B0 |
US $51.25 |
||
|
81290D
|
81290D
81290-50140-B0 Lamp Assy, Rear Room, Lh[07.2003 - 08.2006] UCF30 NEW GRAY,TRIM1#,21,24,25 |
81290-50140-B0 |
US $51.25 |
||
|
81330
|
81330
81330-50021 Lamp Assy, Luggage Compartment, No.1[07.2003 -] UCF30 |
81330-50021 |
from US $15.97 |
||
|
81330B
|
81330B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[07.2003 -] UCF30 12V 3.8W |
90981-11020 |
from US $2.72 |
||
|
81331
|
81331
81331-50010 Lens, Luggage Compartment Lamp[07.2003 -] UCF30 |
81331-50010 |
US $8.48 |
||
|
81360B
|
81360B
81090-50010 Lamp Assy, Interior Illumination, No.1[07.2003 -] UCF30 12V 1.8W |
81090-50010 |
US $23.15 |
||
|
9018904102
|
9018904102
90189-04102 GROMMET |
90189-04102 |
from US $1.15 |
||
|
9018906144
|
9018906144
90189-06144 Grommet |
90189-06144 |
US $1.93 |
||
|
9354013006
|
9354013006
93540-13006 New Genuine Part |
93540-13006 |
US $2.48 |
||
|
9354016016
|
9354016016
93540-16016 New Genuine Part |
93540-16016 |
US $1.75 |
||
|
9356054016
|
9356054016
93560-54016 SCREW |
93560-54016 |
from US $0.96 |
||
