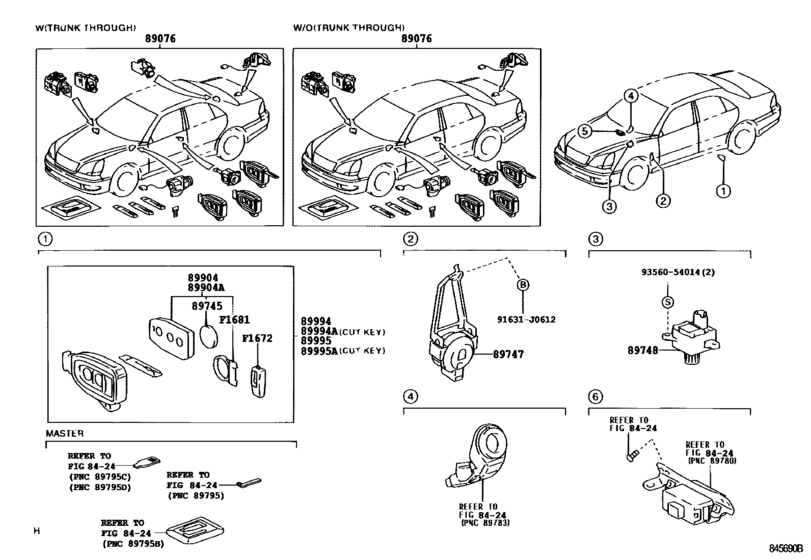

Wireless Door Lock ([07.2003 - ] SMART KEY SYSTEM (0307- )) Diagram Toyota LEXUS LS
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- UCF30
- ENGINE
- 3UZFE
- DESTINATION
- USA
- Model
- LS430
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
- Vehicle Model
- LS430
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89076
|
89076
69005-50600 Cylinder Set, Lock W/transmitter CaseLOCK W/TRANSMITTER CASE [07.2003 -] UCF30 W/O(TRUNK THROUGH) |
69005-50600 |
US $911.46 |
||
| replacement | |||||
|
89076
|
89076
69005-50830 Cylinder Set, Lock W/transmitter CaseLOCK W/TRANSMITTER CASE [07.2003 -] UCF30 W/O(TRUNK THROUGH) |
69005-50830 |
US $982.80 |
||
|
89076
|
89076
69005-50830 Cylinder Set, Lock W/transmitter CaseLOCK W/TRANSMITTER CASE [07.2003 -] UCF30 |
69005-50830 |
US $982.80 |
||
|
89076
|
89076
69005-50860 Cylinder Set, Lock W/transmitter CaseLOCK W/TRANSMITTER CASE [07.2003 -] UCF30..USA KOREA SPEC. |
69005-50860 |
US $985.71 |
||
|
89076
|
89076
69005-50870 Cylinder Set, Lock W/transmitter CaseLOCK W/TRANSMITTER CASE [07.2003 -] UCF30..USA KOREA SPEC & W/O(TRUNK THROUGH) |
69005-50870 |
US $911.46 |
||
|
89745
|
89745
89745-40010
Transmitter Battery
[07.2003 -] UCF30 |
89745-40010 |
— | ||
|
89745
|
89745
89745-50020 Battery, Transmitter[07.2003 -] UCF30..USA KOREA SPEC & W(SMART KEY SYSTEM) |
89745-50020 |
from US $7.04 |
||
|
89747
|
89747
89747-50050 Buzzer, Wireless Door Lock[07.2003 -] UCF30 |
89747-50050 |
US $84.45 |
||
|
89748
|
89748
89748-50010 Controller, Wireless Door Lock Buzzer[07.2003 -] UCF30 |
89748-50010 |
US $75.71 |
||
|
89904
|
89904
89904-50091 Transmitter Sub-Assy, Electrical Key[07.2003 -] UCF30..USA KOREA SPEC. |
89904-50091 |
from US $392.89 |
||
|
89904
|
89904
89904-50290 Transmitter Sub-Assy, Electrical KeyELECTRICAL KEY [07.2003 - 10.2003] UCF30 |
89904-50290 |
US $460.10 |
||
|
89904
|
89904
89904-50291 Transmitter Sub-Assy, Electrical KeyELECTRICAL KEY [10.2003 -] UCF30 |
89904-50291 |
US $460.10 |
||
|
89904A
|
89904A
89904-50100 Transmitter Sub-Assy, Electrical Key(Sub Key)[07.2003 -] UCF30..USA KOREA SPEC. |
89904-50100 |
US $364 |
||
|
89904A
|
89904A
89904-50300
Transmitter Sub-Assy, Electrical Key(Sub Key)
[07.2003 -] UCF30 |
89904-50300 |
— | ||
|
89994
|
89994
89994-50240
Transmitter, Electrical Key
[07.2003 - 10.2003] UCF30 |
89994-50240 |
— | ||
| replacement | |||||
|
89994
|
89994
89994-50241 Transmitter, Electrical Key[07.2003 - 10.2003] UCF30 |
89994-50241 |
US $314.50 |
||
|
89994
|
89994
89994-50241 Transmitter, Electrical Key[10.2003 -] UCF30 |
89994-50241 |
US $314.50 |
||
|
89994
|
89994
89994-50290
Transmitter, Electrical Key
[07.2003 -] UCF30..USA KOREA SPEC. |
89994-50290 |
— | ||
| replacement | |||||
|
89994
|
89994
89994-50291 Transmitter, Electrical Key[07.2003 -] UCF30..USA KOREA SPEC. |
89994-50291 |
US $221.03 |
||
|
89994A
|
89994A
89994-50310
Transmitter, Electrical Key(Cut Key)
[07.2003 - 10.2003] UCF30 |
89994-50310 |
— | ||
| replacement | |||||
|
89994A
|
89994A
89994-50311 Transmitter, Electrical Key(Cut Key)[07.2003 - 10.2003] UCF30 |
89994-50311 |
US $608.61 |
||
|
89994A
|
89994A
89994-50311 Transmitter, Electrical Key(Cut Key)[10.2003 -] UCF30 |
89994-50311 |
US $608.61 |
||
|
89994A
|
89994A
89994-50370 Transmitter, Electrical Key(Cut Key)ELECTRICAL KEY(CUT KEY) [07.2003 -] UCF30..USA KOREA SPEC. |
89994-50370 |
US $608.61 |
||
| replacement | |||||
|
89994A
|
89994A
89994-50371 Transmitter, Electrical Key(Cut Key)[07.2003 -] UCF30..USA KOREA SPEC. |
89994-50371 |
US $608.61 |
||
|
89995
|
89995
89995-50240
Transmitter, Electrical Key Sub
[07.2003 -] UCF30 |
89995-50240 |
— | ||
|
89995
|
89995
89995-50290
Transmitter, Electrical Key Sub
[07.2003 -] UCF30..USA KOREA SPEC. |
89995-50290 |
— | ||
| replacement | |||||
|
89995
|
89995
89995-50291
Transmitter, Electrical Key Sub
[07.2003 -] UCF30..USA KOREA SPEC. |
89995-50291 |
— | ||
|
89995A
|
89995A
89995-50310
Transmitter, Electrical Key Sub(Cut Key)
[07.2003 -] UCF30 |
89995-50310 |
— | ||
|
89995A
|
89995A
89995-50380
Transmitter, Electrical Key Sub(Cut Key)
[07.2003 -] UCF30..USA KOREA SPEC. |
89995-50380 |
— | ||
| replacement | |||||
|
89995A
|
89995A
89995-50381
Transmitter, Electrical Key Sub(Cut Key)
[07.2003 -] UCF30..USA KOREA SPEC. |
89995-50381 |
— | ||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
9356054014
|
9356054014
93560-54014 SCREW |
93560-54014 |
from US $0.96 |
||
|
F1672
|
F1672
F1672-50020 Cover, Door Control Transmitter, No.1DOOR CONTROL TRANSMITTER, NO.1 [07.2003 -] UCF30 |
F1672-50020 |
US $6.84 |
||
|
F1681
|
F1681
F1681-50010 Cover, Door Control Transmitter BatteryDOOR CONTROL TRANSMITTER BATTERY [07.2003 - 08.2006] UCF30 |
F1681-50010 |
US $4.80 |
||
