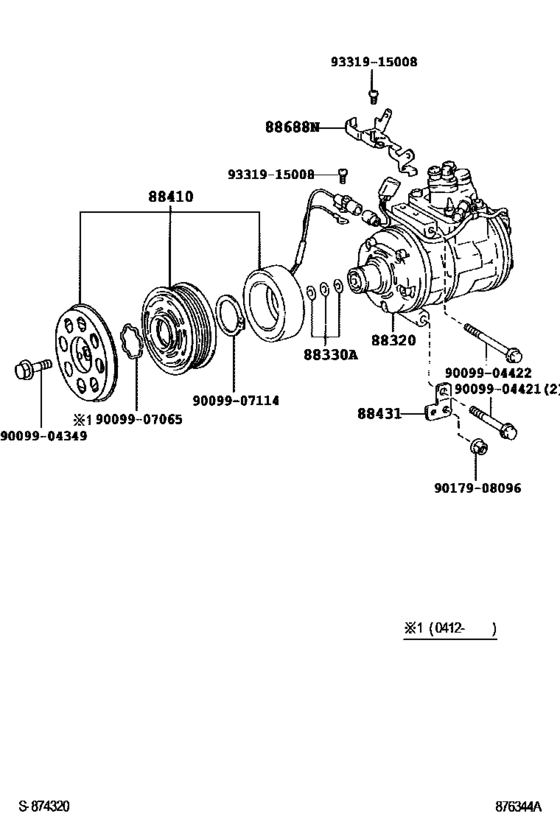

Heating & Air Conditioning - Compressor ([07.2003 - ] (0307- )GCC) Diagram Toyota LEXUS LS
- Year
- 2003 - 2006
- Sales region
- General
- Frame
- UCF30
- ENGINE
- 3UZFE
- DESTINATION
- GCC
- Model
- LS430
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
- Vehicle Model
- LS430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-50091
Compressor Assy, Cooler
[07.2003 - 12.2004] UCF30..GCC |
88320-50091 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-50092
Compressor Assy, Cooler
[07.2003 - 12.2004] UCF30..GCC |
88320-50092 |
— | ||
|
88320
|
88320
88320-50092
Compressor Assy, Cooler
[12.2004 -] UCF30..GCC |
88320-50092 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[07.2003 -] UCF30..GCC |
88335-14020 |
from US $1.25 |
||
|
88410
|
88410
88410-50100 Clutch Assy, Magnet[07.2003 -] UCF30..GCC |
88410-50100 |
US $585.31 |
||
|
88431
|
88431
88433-50010
Bracket, Compressor Mounting, No.1
[07.2003 -] UCF30 |
88433-50010 |
— | ||
|
88688N
|
88688N
88688-3A570
Bracket, Cooler Compressor
[07.2003 -] UCF30..GCC |
88688-3A570 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904421
|
9009904421
90099-04421
BOLT WWASHER
|
90099-04421 |
— | ||
|
9009904422
|
9009904422
90099-04422
BOLT WWASHER
|
90099-04422 |
— | ||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.46 |
||
| replacement | |||||
|
9017908096
|
9017908096
90080-18061 New Genuine Part |
90080-18061 |
US $4.47 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
