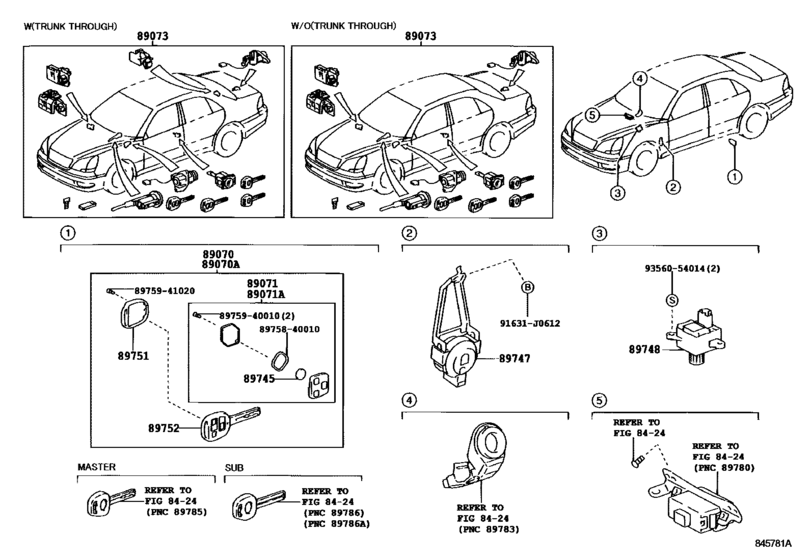

Wireless Door Lock ([07.2003 - ] (0307- )GCC) Diagram Toyota LEXUS LS
- Year
- 2003 - 2006
- Sales region
- General
- Frame
- UCF30
- ENGINE
- 3UZFE
- DESTINATION
- GCC
- Model
- LS430
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
- Vehicle Model
- LS430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89070
|
89070
89070-50C20
Transmitter Assy, Door Control
[07.2003 - 11.2005] UCF30..EUR,GCC |
89070-50C20 |
— | ||
| replacement | |||||
|
89070
|
89070
89070-50C21
Transmitter Assy, Door Control
[07.2003 - 11.2005] UCF30..EUR,GCC |
89070-50C21 |
— | ||
|
89070
|
89070
89070-50C21
Transmitter Assy, Door Control
[12.2005 - 08.2006] UCF30..EUR,GCC |
89070-50C21 |
— | ||
|
89070A
|
89070A
89070-50D10
Transmitter, Door Control (Cut Key)
[07.2003 - 11.2005] UCF30..EUR,GCC |
89070-50D10 |
— | ||
| replacement | |||||
|
89070A
|
89070A
89070-50D11
Transmitter, Door Control (Cut Key)
[07.2003 - 11.2005] UCF30..EUR,GCC |
89070-50D11 |
— | ||
|
89070A
|
89070A
89070-50D11
Transmitter, Door Control (Cut Key)
[12.2005 -] UCF30..EUR,GCC |
89070-50D11 |
— | ||
|
89071
|
89071
89071-50241
Module Set, Transmitter Sub-Assy, Door Control
[07.2003 -] UCF30..EUR,GCC |
89071-50241 |
— | ||
|
89071A
|
89071A
89071-50251
Module Set, Transmitter Sub-Assy, Door Control
[07.2003 -] UCF30..EUR,GCC |
89071-50251 |
— | ||
|
89073
|
89073
69005-50780 Cylinder Set, Lock W/transmitter Housing(Less Module)LOCK W/TRANSMITTER HOUSING(LESS MODULE) [07.2003 - 04.2006] UCF30..GCC |
69005-50780 |
US $594.05 |
||
| replacement | |||||
|
89073
|
89073
69005-50781
Cylinder Set, Lock W/transmitter Housing(Less Module)
[07.2003 - 04.2006] UCF30..GCC |
69005-50781 |
— | ||
|
89073
|
89073
69005-50781
Cylinder Set, Lock W/transmitter Housing(Less Module)
[05.2006 -] UCF30..GCC |
69005-50781 |
— | ||
|
89745
|
89745
89745-40010
Transmitter Battery
[07.2003 -] UCF30..ARL,GCC |
89745-40010 |
— | ||
|
89747
|
89747
89747-50050 Buzzer, Wireless Door Lock[07.2003 -] UCF30 |
89747-50050 |
US $84.45 |
||
|
89748
|
89748
89748-50010 Controller, Wireless Door Lock Buzzer[07.2003 -] UCF30 |
89748-50010 |
US $75.71 |
||
|
89751
|
89751
89751-50160 Cover, Transmitter HousingTRANSMITTER HOUSING [07.2003 - 11.2005] UCF30..ARL,GCC |
89751-50160 |
US $12.67 |
||
| replacement | |||||
|
89751
|
89751
89751-50161 Cover, Transmitter HousingTRANSMITTER HOUSING [07.2003 - 11.2005] UCF30..ARL,GCC |
89751-50161 |
US $12.67 |
||
|
89751
|
89751
89751-50161 Cover, Transmitter HousingTRANSMITTER HOUSING [12.2005 -] UCF30..ARL,GCC |
89751-50161 |
US $12.67 |
||
|
89752
|
89752
89752-33070 Case, Transmitter HousingTRANSMITTER HOUSING [07.2003 - 08.2006] UCF30..EUR MASTER KEY(BLANK); UCF30..ARL,GCC BLANK KEY |
89752-33070 |
US $16.97 |
||
|
89752
|
89752
89752-33080 Case, Transmitter HousingTRANSMITTER HOUSING [07.2003 - 08.2006] UCF30..EUR MASTER KEY(CUT); UCF30..ARL,GCC CUT KEY |
89752-33080 |
US $178.56 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
8975840010
|
8975840010
89758-40010 Packing, Door Control Transmitter |
89758-40010 |
US $3.20 |
||
|
8975940010
|
8975940010
89759-40010 Screw, Door Control Transmitter |
89759-40010 |
US $1.92 |
||
|
8975941020
|
8975941020
89759-41020 Screw, Door Control Transmitter |
89759-41020 |
from US $1.19 |
||
|
9356054014
|
9356054014
93560-54014 SCREW |
93560-54014 |
from US $0.74 |
||
