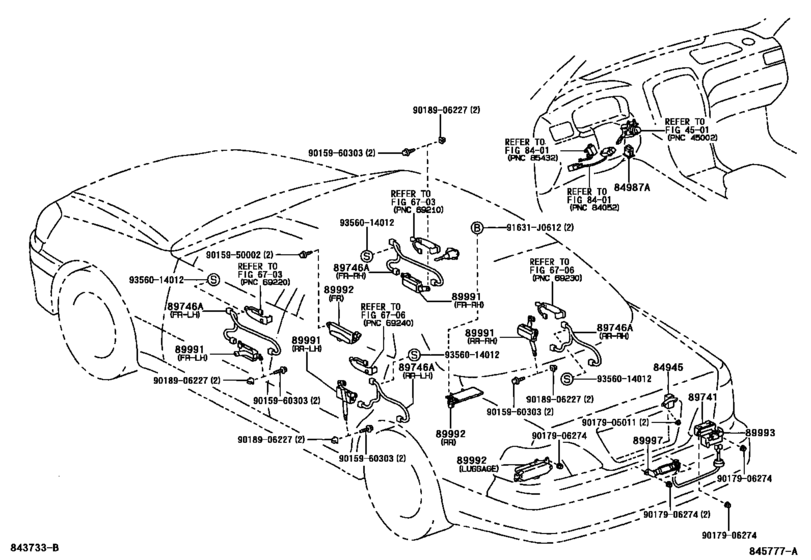

Wireless Door Lock ([07.2003 - ] SMART KEY SYSTEM (0307- )LHD) Diagram Toyota LEXUS LS
- Year
- 2003 - 2006
- Sales region
- General
- Frame
- UCF30
- ENGINE
- 3UZFE
- DESTINATION
- GCC
- Model
- LS430
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
- Vehicle Model
- LS430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84945
|
84945
84945-50010 Switch, Luggage Electrical Key[07.2003 -] UCF30 |
84945-50010 |
from US $43.31 |
||
|
84987A
|
84987A
84987-47010 Switch, Keyless Entry Cancel[07.2003 - 06.2004] UCF30 |
84987-47010 |
US $49.65 |
||
| replacement | |||||
|
84987A
|
84987A
84987-47011 Switch, Keyless Entry Cancel[07.2003 - 06.2004] UCF30 |
84987-47011 |
US $49.65 |
||
|
84987A
|
84987A
84987-50050 Switch, Keyless Entry Cancel[06.2004 - 08.2004] UCF30 |
84987-50050 |
US $48.34 |
||
|
84987A
|
84987A
84987-50060 Switch, Keyless Entry Cancel[08.2004 -] UCF30 |
84987-50060 |
US $41.35 |
||
|
89741
|
89741
89741-50470
Receiver, Door Control
[07.2003 -] UCF30 |
89741-50470 |
— | ||
|
89746A
|
89746A
89746-50010 Harness, Electrical Key Wire[07.2003 -] UCF30 FRONT RH |
89746-50010 |
US $52.27 |
||
|
89746A
|
89746A
89746-50020 Harness, Electrical Key Wire[07.2003 -] UCF30 FRONT LH |
89746-50020 |
US $52.27 |
||
|
89746A
|
89746A
89746-50030 Harness, Electrical Key Wire[07.2003 -] UCF30 REAR RH |
89746-50030 |
US $52.27 |
||
|
89746A
|
89746A
89746-50040 Harness, Electrical Key Wire[07.2003 -] UCF30 REAR LH |
89746-50040 |
US $52.27 |
||
|
89991
|
89991
89991-50050 Oscillator, Door Electrical Key[07.2003 -] UCF30 FRONT RH |
89991-50050 |
US $310.13 |
||
| replacement | |||||
|
89991
|
89991
89991-50051 Oscillator, Door Electrical Key[07.2003 -] UCF30 FRONT RH |
89991-50051 |
US $310.13 |
||
|
89991
|
89991
89991-50060 Oscillator, Door Electrical Key[07.2003 -] UCF30 FRONT LH |
89991-50060 |
US $310.13 |
||
| replacement | |||||
|
89991
|
89991
89991-50061 Oscillator, Door Electrical Key[07.2003 -] UCF30 FRONT LH |
89991-50061 |
US $310.13 |
||
|
89991
|
89991
89991-50070 Oscillator, Door Electrical Key[07.2003 -] UCF30 REAR RH |
89991-50070 |
US $310.13 |
||
| replacement | |||||
|
89991
|
89991
89991-50071 Oscillator, Door Electrical Key[07.2003 -] UCF30 REAR RH |
89991-50071 |
US $310.13 |
||
|
89991
|
89991
89991-50080 Oscillator, Door Electrical Key[07.2003 -] UCF30 REAR LH |
89991-50080 |
US $310.13 |
||
| replacement | |||||
|
89991
|
89991
89991-50081 Oscillator, Door Electrical Key[07.2003 -] UCF30 REAR LH |
89991-50081 |
US $310.13 |
||
|
89992
|
89992
89992-50040 Oscillator, Indoor Electrical Key[07.2003 -] UCF30 FRONT |
89992-50040 |
US $262.08 |
||
| replacement | |||||
|
89992
|
89992
89992-50041 Oscillator, Indoor Electrical Key[07.2003 -] UCF30 FRONT |
89992-50041 |
US $262.08 |
||
|
89992
|
89992
89992-50050 Oscillator, Indoor Electrical Key[07.2003 -] UCF30 REAR |
89992-50050 |
US $262.08 |
||
| replacement | |||||
|
89992
|
89992
89992-50051 Oscillator, Indoor Electrical Key[07.2003 -] UCF30 REAR |
89992-50051 |
US $262.08 |
||
|
89992
|
89992
89992-50060 Oscillator, Indoor Electrical Key[07.2003 -] UCF30 LUGGAGE |
89992-50060 |
from US $262.08 |
||
| replacement | |||||
|
89992
|
89992
89992-50061 Oscillator, Indoor Electrical Key[07.2003 -] UCF30 LUGGAGE |
89992-50061 |
US $262.08 |
||
|
89993
|
89993
89993-50020 Oscillator, Luggage Electrical Key[07.2003 -] UCF30 |
89993-50020 |
US $310.13 |
||
| replacement | |||||
|
89993
|
89993
89993-50021 Oscillator, Luggage Electrical Key[07.2003 -] UCF30 |
89993-50021 |
US $310.13 |
||
|
89997
|
89997
89997-50020 Antenna, Electrical KeyELECTRICAL KEY [07.2003 -] UCF30 |
89997-50020 |
US $208.21 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
9015950002
|
9015950002
90159-50002 SCREW |
90159-50002 |
US $1.12 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
||
|
9356014012
|
9356014012
93560-14012 SCREW |
93560-14012 |
US $1.12 |
||
