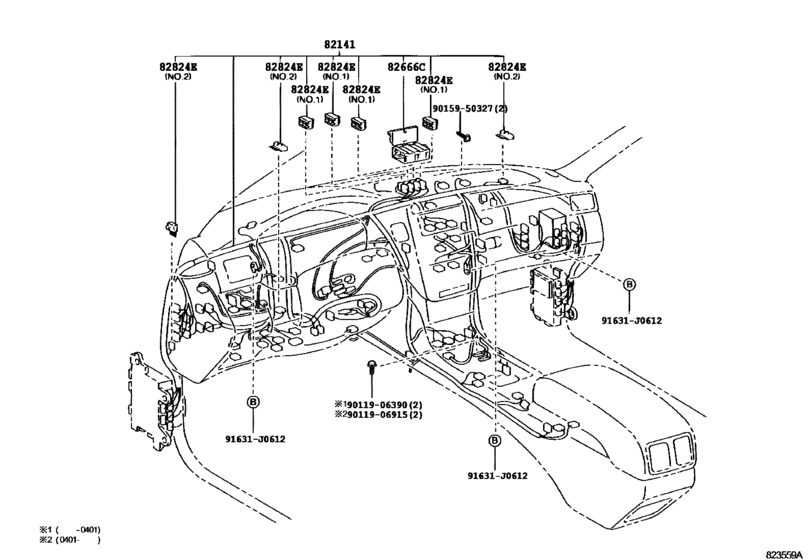

Wiring & Clamp ([07.2003 - ] INSTRUMENT PANEL (0307- )LHD) Diagram Toyota LEXUS LS
- Year
- 2003 - 2006
- Sales region
- General
- Frame
- UCF30
- ENGINE
- 3UZFE
- DESTINATION
- GCC
- Model
- LS430
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
- Vehicle Model
- LS430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-50A10 Wire, Instrument PanelINSTRUMENT PANEL [07.2003 -] UCF30..GCC; UCF30..LHD..EUR W(NAVIGATION SYSTEM) |
82141-50A10 |
US $1,356.99 |
||
|
82141
|
82141
82141-50A40 Wire, Instrument PanelINSTRUMENT PANEL [07.2003 -] UCF30..GCC W(SMART KEY SYSTEM); UCF30..LHD..EUR W(NAVIGATION SYSTEM & SMART KEY SYSTEM) |
82141-50A40 |
US $1,528.80 |
||
|
82666C
|
82666C
82666-50440 Holder, Connector No.4[07.2003 -] UCF30 |
82666-50440 |
US $30.28 |
||
|
82824E
|
82824E
82824-28180 Connector, Wiring Harness[07.2003 -] UCF30 NO.1 |
82824-28180 |
US $6.41 |
||
|
82824E
|
82824E
82824-30130 Connector, Wiring Harness[07.2003 -] UCF30 NO.2 |
82824-30130 |
US $3.52 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
