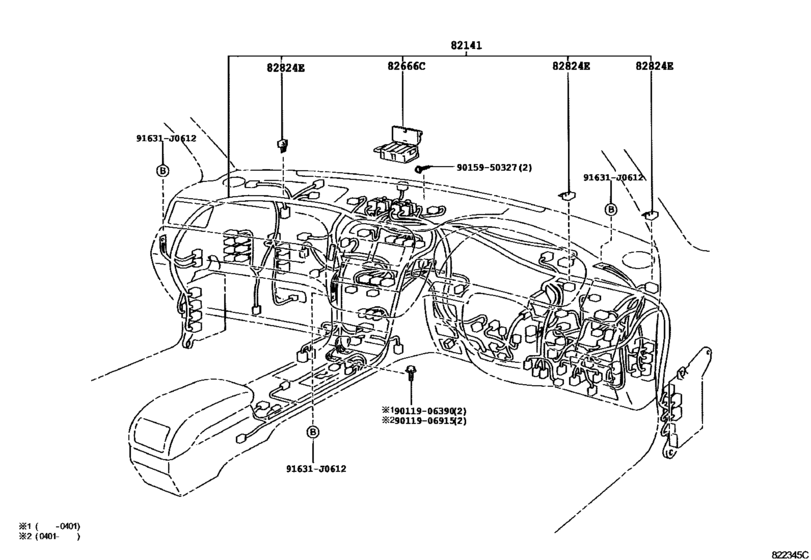

Wiring & Clamp ([08.2000 - ] INSTRUMENT PANEL (0008- )RHD..5FC) Diagram Toyota LEXUS LS
- Year
- 2000 - 2003
- Sales region
- General
- Frame
- UCF30
- ENGINE
- 3UZFE
- DESTINATION
- ARL
- Model
- LS430
- From
- 08.2000
- To
- 07.2003
- Gear Shift Type
- 5FC
- Vehicle Model
- LS430
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-5A150 Wire, Instrument PanelINSTRUMENT PANEL [08.2000 - 07.2001] UCF30..RHD |
82141-5A150 |
US $1,355.54 |
||
|
82141
|
82141
82141-5A151 Wire, Instrument PanelINSTRUMENT PANEL [07.2001 - 07.2003] UCF30..RHD |
82141-5A151 |
US $1,355.54 |
||
|
82141
|
82141
82141-5A160 Wire, Instrument PanelINSTRUMENT PANEL [08.2000 - 07.2001] UCF30..RHD W(SMART KEY SYSTEM) |
82141-5A160 |
US $1,528.80 |
||
|
82141
|
82141
82141-5A161 Wire, Instrument PanelINSTRUMENT PANEL [07.2001 - 07.2003] UCF30..RHD W(SMART KEY SYSTEM) |
82141-5A161 |
US $1,355.54 |
||
|
82141
|
82141
82141-5A171 Wire, Instrument PanelINSTRUMENT PANEL [07.2001 - 07.2003] UCF30..RHD W(NAVIGATION SYSTEM) |
82141-5A171 |
US $1,355.54 |
||
|
82141
|
82141
82141-5A181 Wire, Instrument PanelINSTRUMENT PANEL [07.2001 - 07.2003] UCF30..RHD W(NAVIGATION SYSTEM & SMART KEY SYSTEM) |
82141-5A181 |
US $1,355.54 |
||
|
82666C
|
82666C
82666-50440 Holder, Connector No.4[08.2000 - 07.2003] UCF30 |
82666-50440 |
US $30.28 |
||
|
82824E
|
82824E
82824-30130 Connector, Wiring Harness[08.2000 - 07.2003] UCF30 NO.2 |
82824-30130 |
US $3.52 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
