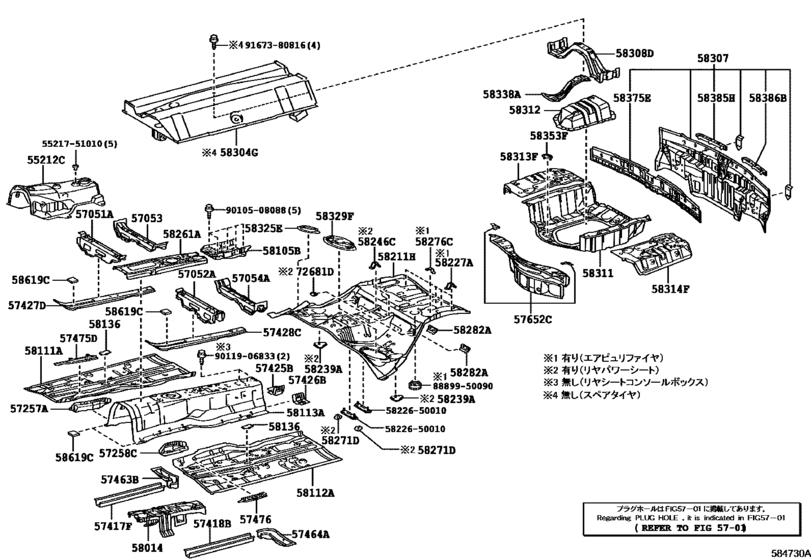

Floor Pan & Lower Back Panel ([09.2012 - ] ﾌﾛｱﾊﾟﾈﾙ (1209- )USF40,41) Diagram Toyota LEXUS LS
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- USF41
- ENGINE
- 1URFSE
- TRANSMISSION
- ATM
- Model
- LS460L
- From
- 09.2012
- Vehicle Model
- LS460L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55212C
|
55212C
55212-50060 Silencer, Front Panel, Lower[09.2012 -] USF40,41 |
55212-50060 |
US $104.83 |
||
|
57051A
|
57051A
57051-50020 Member Sub-Assy, Front Floor Cross, Rh[09.2012 -] USF4# |
57051-50020 |
US $82.99 |
||
|
57052A
|
57052A
57052-50020 Member Sub-Assy, Front Floor Cross, Lh[09.2012 -] USF40,41 |
57052-50020 |
US $82.99 |
||
|
57053
|
57053
57053-50030 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[09.2012 -] USF4# |
57053-50030 |
US $53.58 |
||
|
57054A
|
57054A
57054-50030 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[09.2012 -] USF4# |
57054-50030 |
US $53.58 |
||
|
57257A
|
57257A
57257-50060 Bracket, Engine Rear Mounting Member, Rh[09.2012 -] USF40,41 |
57257-50060 |
US $46.16 |
||
|
57258C
|
57258C
57258-50060 Bracket, Engine Rear Mounting Member, Lh[09.2012 -] USF40,41 |
57258-50060 |
US $33.34 |
||
|
57417F
|
57417F
57417-50071 Reinforcement, Front Floor Under, Rh[09.2012 -] USF41,46 |
57417-50071 |
US $55.33 |
||
|
57418B
|
57418B
57417-50071 Reinforcement, Front Floor Under, Rh[09.2012 -] USF41,46 |
57417-50071 |
US $55.33 |
||
|
57425B
|
57425B
57425-50050 Reinforcement, Front Floor, No.2 Rh[09.2012 -] USF4# |
57425-50050 |
US $11.21 |
||
|
57426B
|
57426B
57425-50050 Reinforcement, Front Floor, No.2 Rh[09.2012 -] USF4# |
57425-50050 |
US $11.21 |
||
|
57427D
|
57427D
57055-50010 Reinforcement, Front Floor, No.3 Rh[09.2012 -] USF4# |
57055-50010 |
US $75.71 |
||
|
57428C
|
57428C
57056-50010 Reinforcement, Front Floor, No.3 Lh[09.2012 -] USF4# |
57056-50010 |
US $75.71 |
||
|
57463B
|
57463B
57463-50040 Reinforcement, Center Floor Crossmember, Rh[09.2012 -] USF4# |
57463-50040 |
US $33.20 |
||
|
57464A
|
57464A
57464-50030 Reinforcement, Center Floor Crossmember, Lh[09.2012 -] USF4# |
57464-50030 |
US $33.20 |
||
|
57475D
|
57475D
57475-50010 Plate, Front Floor Crossmember, Rh[09.2012 -] USF4# |
57475-50010 |
US $13.25 |
||
|
57476
|
57476
57476-50010 Plate, Front Floor Crossmember, Lh[09.2012 -] USF40,41 |
57476-50010 |
US $11.07 |
||
|
57652C
|
57652C
57652-50901 Member, Rear Floor Cross, No.1[09.2012 -] USF4# |
57652-50901 |
US $112.11 |
||
|
58014
|
58014
58014-50030
Panel Sub-Assy, Front Floor, Rear Lower
[09.2012 -] USF41 |
58014-50030 |
— | ||
|
58105B
|
58105B
58105-50010 Panel Sub-Assy, Front Floor Rear Upper Sub[09.2012 -] USF4# |
58105-50010 |
US $96.10 |
||
|
58111A
|
58111A
58111-50905 Pan, Front Floor, Rh[09.2012 -] USF41,46 |
58111-50905 |
US $246.06 |
||
|
58112A
|
58112A
58112-50906 Panel, Front Floor, Lh[09.2012 -] USF41 |
58112-50906 |
US $246.06 |
||
|
58113A
|
58113A
58113-50912
Panel, Front Floor, Center
[09.2012 -] USF41 |
58113-50912 |
— | ||
|
58136
|
58136
58136-51010 Cover, Front Floor Hole[09.2012 -] USF4# |
58136-51010 |
US $2.04 |
||
|
58211H
|
58211H
58211-50922 Pan, Center Floor[09.2012 - 09.2015] USF41,46; USF40,45 “ｖｅｒｓｉｏｎ Ｌ”＆エアピュリファイア−有り（リヤクーラ） |
58211-50922 |
US $329.06 |
||
| replacement | |||||
|
58211H
|
58211H
58211-50933 Pan, Center Floor[09.2012 - 09.2015] USF41,46; USF40,45 “ｖｅｒｓｉｏｎ Ｌ”＆エアピュリファイア−有り（リヤクーラ） |
58211-50933 |
US $298.48 |
||
|
58211H
|
58211H
58211-50933 Pan, Center Floor[09.2015 -] USF41,46; USF40,45 “ｖｅｒｓｉｏｎ Ｌ”＆エアピュリファイア−有り（リヤクーラ） |
58211-50933 |
US $298.48 |
||
|
58227A
|
58227A
58225-50010 Plate, Air Guide[09.2012 -] USF41,46; USF40,45 “ｖｅｒｓｉｏｎ Ｌ”＆エアピュリファイア−有り（リヤクーラ）; USF40,45 エアピュリファイア−有り |
58225-50010 |
US $5.53 |
||
|
58239A
|
58239A
58239-50030 Plate, Belt Anchor Nut[09.2012 -] USF41,46; USF40,45 “ｖｅｒｓｉｏｎ Ｌ”＆エアピュリファイア−有り（リヤクーラ） |
58239-50030 |
US $7.86 |
||
|
58246C
|
58246C
58246-50010 Bracket, Rear Seat Hinge, Center No.2[09.2012 -] USF41,46; USF40,45 “ｖｅｒｓｉｏｎ Ｌ”＆エアピュリファイア−有り（リヤクーラ） |
58246-50010 |
US $3.93 |
||
|
58261A
|
58261A
58261-50030 Cover, Transmission[09.2012 -] USF4# |
58261-50030 |
US $77.17 |
||
|
58271D
|
58271D
58271-50020 Reinforcement, Belt Anchor To Floor Pan, No.3[09.2012 -] USF41,46; USF40,45 “ｖｅｒｓｉｏｎ Ｌ”＆エアピュリファイア−有り（リヤクーラ） |
58271-50020 |
US $6.84 |
||
|
58276C
|
58276C
58276-50010 Reinforcement, Side Floor, No.4[09.2012 -] USF41,46; USF40,45 “ｖｅｒｓｉｏｎ Ｌ”＆エアピュリファイア−有り（リヤクーラ）; USF40,45 エアピュリファイア−有り |
58276-50010 |
US $3.93 |
||
|
58282A
|
58282A
58282-50040 Base, Belt Anchor To Floor Pan, No.3 Rh[09.2012 -] USF4# |
58282-50040 |
US $6.84 |
||
|
58304G
|
58304G
58304-50030 Reinforce Sub-Assy, Body Lower Back Panel[09.2015 - 07.2016] USF4# スペア タイヤ−無し |
58304-50030 |
US $164.53 |
||
| replacement | |||||
|
58304G
|
58304G
58304-50031 Reinforce Sub-Assy, Body Lower Back Panel[09.2015 - 07.2016] USF4# スペア タイヤ−無し |
58304-50031 |
US $148.51 |
||
|
58304G
|
58304G
58304-50031 Reinforce Sub-Assy, Body Lower Back Panel[08.2016 -] USF40,41 スペア タイヤ−無し |
58304-50031 |
US $148.51 |
||
|
58307
|
58307
58307-50071 Panel Sub-Assy, Body Lower Back[09.2012 - 08.2015] USF4# |
58307-50071 |
US $260.62 |
||
| replacement | |||||
|
58307
|
58307
58307-50072 Panel Sub-Assy, Body Lower Back[09.2012 - 08.2015] USF4# |
58307-50072 |
US $235.87 |
||
|
58307
|
58307
58307-50072 Panel Sub-Assy, Body Lower Back[09.2015 -] USF4# |
58307-50072 |
US $235.87 |
||
|
58308D
|
58308D
58308-50010 Bracket Sub-Assy, Rear Floor Crossmember[09.2012 - 05.2014] USF4# |
58308-50010 |
US $60.28 |
||
| replacement | |||||
|
58308D
|
58308D
58308-50011 Bracket Sub-Assy, Rear Floor Crossmember[09.2012 - 05.2014] USF4# |
58308-50011 |
US $54.75 |
||
|
58308D
|
58308D
58308-50011 Bracket Sub-Assy, Rear Floor Crossmember[06.2014 -] USF4# |
58308-50011 |
US $54.75 |
||
|
58311
|
58311
58311-50901 Pan, Rear Floor[09.2012 -] USF4# |
58311-50901 |
from US $198.02 |
||
|
58312
|
58312
58312-50010 Panel, Rear Body Floor, No.1[09.2012 -] USF4# |
58312-50010 |
US $46.88 |
||
|
58313F
|
58313F
58305-50021 Extension, Rear Floor Pan To Quarter Panel, Rh[09.2012 -] USF4# |
58305-50021 |
US $63.63 |
||
|
58314F
|
58314F
58306-50020 Extension, Rear Floor Pan To Quarter Panel, Lh[09.2012 -] USF4# |
58306-50020 |
from US $63.63 |
||
|
58325E
|
58325E
58325-50020 Cover, Rear Floor Service Hole[09.2012 -] USF4# |
58325-50020 |
US $9.76 |
||
|
58329F
|
58329F
58329-50010 Cover, Rear Floor Service Hole, No.2[09.2012 -] USF4# |
58329-50010 |
US $19.51 |
||
|
58338A
|
58338A
58338-50020 Reinforcement, Rear Floor Pan, No.2[09.2012 - 05.2014] USF4# |
58338-50020 |
US $22.86 |
||
| replacement | |||||
|
58338A
|
58338A
58338-50021 Reinforcement, Rear Floor Pan, No.2[09.2012 - 05.2014] USF4# |
58338-50021 |
US $20.68 |
||
|
58338A
|
58338A
58338-50021 Reinforcement, Rear Floor Pan, No.2[06.2014 -] USF4# |
58338-50021 |
US $20.68 |
||
|
58353F
|
58353F
58353-50010 Reinforcement, Rear Floor Panel, No.3[09.2012 -] USF4# |
58353-50010 |
from US $3.93 |
||
|
58375E
|
58375E
58375-50040 Reinforcement, Body Lower Back Panel[09.2012 -] USF4# |
58375-50040 |
US $54.60 |
||
|
58385H
|
58385H
58385-50010 Bracket, Rear Bumper Cover, No.1REAR BUMPER COVER, NO.1 [09.2012 -] USF4# |
58385-50010 |
US $10.48 |
||
|
58386B
|
58386B
58386-50010 Bracket, Rear Bumper Cover, No.2REAR BUMPER COVER, NO.2 [09.2012 -] USF4# |
58386-50010 |
US $10.48 |
||
|
58619C
|
58619C
58619-30080 Sheet, Center Floor Silencer Sub[09.2012 -] USF4# |
58619-30080 |
US $1.16 |
||
|
72681D
|
72681D
72681-50020 Hook, Rear Seat Back Lock, Lower[09.2012 -] USF41,46; USF40,45 “ｖｅｒｓｉｏｎ Ｌ” |
72681-50020 |
US $7.02 |
||
|
5521751010
|
5521751010
55217-51010 Retainer, Dash Panel Silencer |
55217-51010 |
US $1.44 |
||
|
5822650010
|
5822650010
58226-50010
Plate, Floor Panel Front End, Lower
|
58226-50010 |
— | ||
|
8889950090
|
8889950090
88899-50090
Cover, Evaporator
|
88899-50090 |
— | ||
|
9010508088
|
9010508088
90105-08088 New Genuine Part |
90105-08088 |
US $1.76 |
||
|
9011906833
|
9011906833
90119-06833 BOLT WWASHER |
90119-06833 |
US $0.44 |
||
|
9167380816
|
9167380816
91673-80816 Bolt (For Transmission Control Cable Bracket) |
91673-80816 |
from US $0.72 |
||
