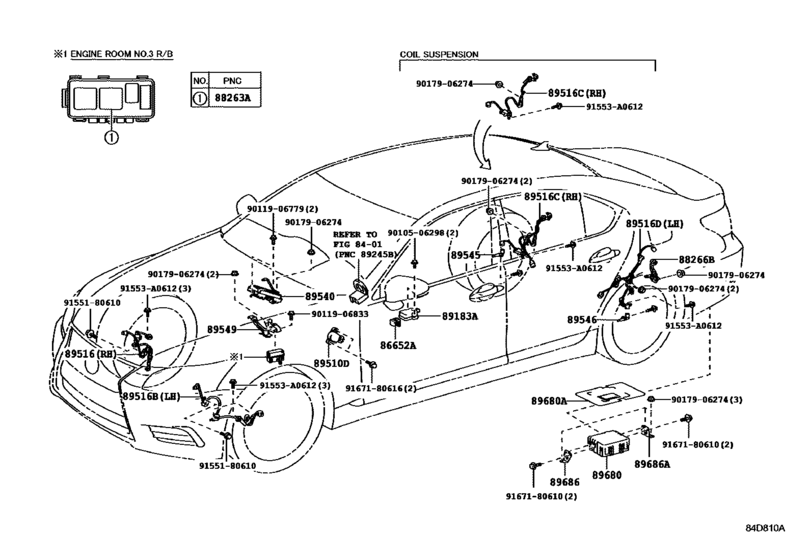

Abs & Vsc ([09.2012 - ] (1209- )USF40,41..LHD) Diagram Toyota LEXUS LS
- Year
- 2012 - 2018
- Sales region
- General
- Frame
- USF41
- ENGINE
- 1URFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LS460L
- From
- 09.2012
- Vehicle Model
- LS460L
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86652A
|
86652A
86652-50010 Buzzer Assy[09.2012 -] USF4# |
86652-50010 |
from US $31.45 |
||
|
88263A
|
88263A
88263-21010 Relay[09.2012 -] USF4# |
88263-21010 |
from US $41.65 |
||
|
88266B
|
88266B
88266-50600 Clamp, Skid Control Sensor, No.1[09.2012 -] USF4# |
88266-50600 |
US $7.43 |
||
|
89183A
|
89183A
89183-50030 Sensor, YawrateYAWRATE [09.2012 -] USF4# |
89183-50030 |
US $1,014.83 |
||
|
89510D
|
89510D
89510-33030 Sensor Assy, Brake Pedal Stroke[09.2012 -] USF4#..LHD |
89510-33030 |
from US $111.82 |
||
|
89516
|
89516
89516-50170 Wire, Skid Control SensorSKID CONTROL SENSOR [09.2012 -] USF40,41 |
89516-50170 |
from US $95.53 |
||
|
89516B
|
89516B
89516-50160 Wire, Skid Control SensorSKID CONTROL SENSOR [09.2012 -] USF40,41 |
89516-50160 |
US $50.52 |
||
|
89516C
|
89516C
89516-50190 Wire, Skid Control Sensor, RhSKID CONTROL SENSOR [09.2012 -] USF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC); USF40..GCC VERSION L; USF41..HTWC..EUR SUSPENSION-AIR SUSPENTION |
89516-50190 |
US $93.69 |
||
|
89516D
|
89516D
89516-50150 Wire, Skid Control Sensor, LhSKID CONTROL SENSOR [09.2012 -] USF4# |
89516-50150 |
US $93.69 |
||
|
89540
|
89540
895B0-50030 Computer Assy, Skid Control[09.2012 - 08.2013] USF40,41..GCC |
895B0-50030 |
US $2,402.40 |
||
|
89540
|
89540
895B0-50031
Computer Assy, Skid Control
[10.2014 -] USF40..LHD;USF41..HTWC;USF41..D4..(CHI,GCC); USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
895B0-50031 |
— | ||
|
89540
|
89540
895B0-50270
Computer Assy, Skid Control
[08.2013 - 10.2014] USF40,41..GCC |
895B0-50270 |
— | ||
|
89545
|
89545
89545-30070 Sensor, Speed, Rear Rh[09.2012 -] USF4# |
89545-30070 |
from US $183.73 |
||
|
89546
|
89546
89546-30070 Sensor, Speed, Rear Lh[09.2012 -] USF4# |
89546-30070 |
from US $190.32 |
||
|
89549
|
89549
88269-50090 Bracket, Skid Control ComputerSKID CONTROL COMPUTER [09.2012 -] USF4#..LHD |
88269-50090 |
US $22.71 |
||
|
89680
|
89680
89680-33010 Supply Assy, Brake Control Power[09.2012 -] USF4# |
89680-33010 |
US $677.91 |
||
|
89680A
|
89680A
F1971-50020 Cover, Brake Control Power Supply[09.2012 -] USF4# |
F1971-50020 |
US $4.66 |
||
|
89686
|
89686
89686-50010 Bracket, Brake Control Power Supply, No.1[09.2012 -] USF4# |
89686-50010 |
US $5.39 |
||
|
89686A
|
89686A
89686-50020 Bracket, Brake Control Power Supply, No.1[09.2012 -] USF4# |
89686-50020 |
US $6.99 |
||
|
91553A0612
|
91553A0612
91553-A0612 New Genuine Part |
91553-A0612 |
US $0.96 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.64 |
||
|
9011906779
|
9011906779
90119-06779 BOLT W-WASHER |
90119-06779 |
from US $0.72 |
||
|
9011906833
|
9011906833
90119-06833 BOLT WWASHER |
90119-06833 |
US $0.44 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $0.96 |
||
|
9167180610
|
9167180610
91671-80610 New Genuine Part |
91671-80610 |
US $0.96 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
