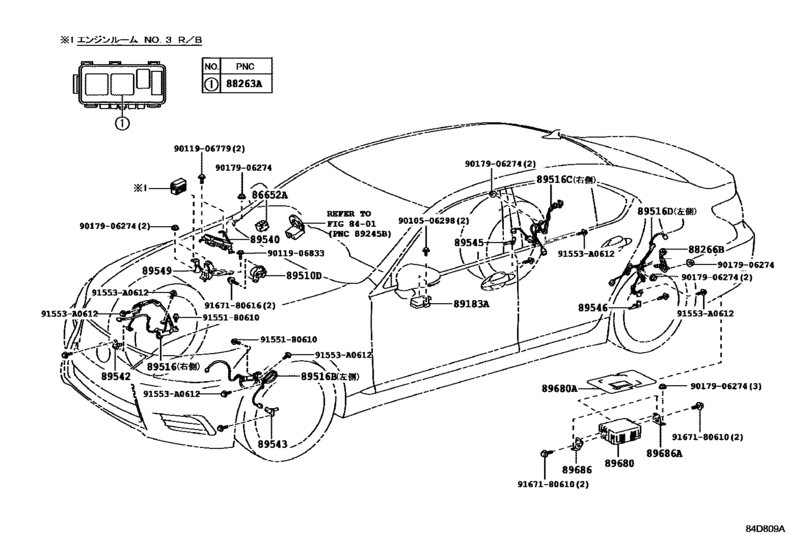

Abs & Vsc ([09.2012 - ] (1209- )USF45,46) Diagram Toyota LEXUS LS
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- USF45
- ENGINE
- 1URFSE
- TRANSMISSION
- ATM
- Model
- LS460
- From
- 09.2012
- Vehicle Model
- LS460
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86652A
|
86652A
86652-50010 Buzzer Assy[09.2012 -] USF4# |
86652-50010 |
from US $31.45 |
||
|
88263A
|
88263A
88263-21010 Relay[09.2012 -] USF4# |
88263-21010 |
from US $41.65 |
||
|
88266B
|
88266B
88266-50600 Clamp, Skid Control Sensor, No.1[09.2012 -] USF4# |
88266-50600 |
US $7.43 |
||
|
89183A
|
89183A
89183-48020 Sensor, YawrateYAWRATE [09.2012 -] USF4# |
89183-48020 |
US $999.40 |
||
|
89510D
|
89510D
89510-33020 Sensor Assy, Brake Pedal Stroke[09.2012 -] USF4# |
89510-33020 |
US $116.92 |
||
|
89516
|
89516
89516-50140 Wire, Skid Control SensorSKID CONTROL SENSOR [09.2012 -] USF45,46 |
89516-50140 |
US $115.84 |
||
|
89516B
|
89516B
89516-50130 Wire, Skid Control SensorSKID CONTROL SENSOR [09.2012 -] USF45,46 |
89516-50130 |
US $115.84 |
||
|
89516C
|
89516C
89516-50190 Wire, Skid Control Sensor, RhSKID CONTROL SENSOR [09.2012 -] USF4# |
89516-50190 |
US $93.69 |
||
|
89516D
|
89516D
89516-50150 Wire, Skid Control Sensor, LhSKID CONTROL SENSOR [09.2012 -] USF4# |
89516-50150 |
from US $93.69 |
||
|
89540
|
89540
895B0-50140 Computer Assy, Skid Control[09.2012 - 10.2014] USF45,46 |
895B0-50140 |
US $2,402.40 |
||
|
89540
|
89540
895B0-50141 Computer Assy, Skid Control[10.2014 -] USF45,46 |
895B0-50141 |
US $2,184 |
||
|
89542
|
89542
89542-30270 Sensor, Speed, Front Rh[09.2012 -] USF45,46 |
89542-30270 |
US $260.64 |
||
|
89543
|
89543
89543-30270 Sensor, Speed, Front Lh[09.2012 -] USF45,46 |
89543-30270 |
US $260.64 |
||
|
89545
|
89545
89545-30070 Sensor, Speed, Rear Rh[09.2012 -] USF4# |
89545-30070 |
from US $183.73 |
||
|
89546
|
89546
89546-30070 Sensor, Speed, Rear Lh[09.2012 -] USF4# |
89546-30070 |
from US $190.32 |
||
|
89549
|
89549
88269-50070 Bracket, Skid Control Computer[09.2012 -] USF4# |
88269-50070 |
US $22.86 |
||
|
89680
|
89680
89680-33010 Supply Assy, Brake Control Power[09.2012 -] USF4# |
89680-33010 |
US $677.91 |
||
|
89680A
|
89680A
F1971-50020 Cover, Brake Control Power Supply[09.2012 -] USF4# |
F1971-50020 |
US $4.66 |
||
|
89686
|
89686
89686-50010 Bracket, Brake Control Power Supply, No.1[09.2012 -] USF4# |
89686-50010 |
US $5.39 |
||
|
89686A
|
89686A
89686-50020 Bracket, Brake Control Power Supply, No.1[09.2012 -] USF4# |
89686-50020 |
US $6.99 |
||
|
91553A0612
|
91553A0612
91553-A0612 New Genuine Part |
91553-A0612 |
US $0.96 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.64 |
||
|
9011906779
|
9011906779
90119-06779 BOLT W-WASHER |
90119-06779 |
from US $0.72 |
||
|
9011906833
|
9011906833
90119-06833 BOLT WWASHER |
90119-06833 |
US $0.44 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $0.96 |
||
|
9167180610
|
9167180610
91671-80610 New Genuine Part |
91671-80610 |
US $0.96 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
