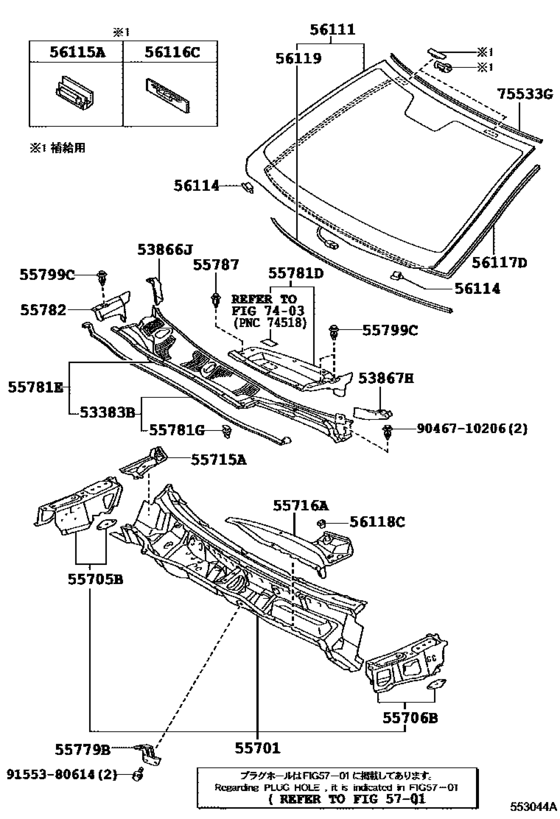

Cowl Panel & Windshield Glass ([09.2012 - ] (1209- )) Diagram Toyota LEXUS LS
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- USF45
- ENGINE
- 1URFSE
- TRANSMISSION
- ATM
- Model
- LS460
- From
- 09.2012
- Vehicle Model
- LS460
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-50060 Seal, Hood To Cowl Top[09.2012 -] USF4# |
53383-50060 |
US $10.31 |
||
|
53866J
|
53866J
53866-50050 Seal, Front Fender To Cowl Side, Rh[09.2012 -] USF4# |
53866-50050 |
US $24.93 |
||
|
53867H
|
53867H
53867-50050 Seal, Front Fender To Cowl Side, Lh[09.2012 -] USF4# |
53867-50050 |
US $24.93 |
||
|
55701
|
55701
55700-50193 Panel Sub-Assy, Cowl[09.2012 -] USF4# |
55700-50193 |
US $428.06 |
||
|
55705B
|
55705B
55705-50902 Panel Sub-Assy, Cowl Top Side, Rh[09.2012 -] USF4# |
55705-50902 |
US $40.19 |
||
|
55706B
|
55706B
55706-50902 Panel Sub-Assy, Cowl Top Side, Lh[09.2012 -] USF4# |
55706-50902 |
US $40.19 |
||
|
55715A
|
55715A
55715-50080 Brace, Cowl Top To Apron, Rh[09.2012 -] USF4# |
55715-50080 |
US $17.47 |
||
|
55716A
|
55716A
55716-50080 Brace, Cowl Top To Apron, Lh[09.2012 -] USF4# |
55716-50080 |
US $25.04 |
||
|
55779B
|
55779B
55779-50030 Bracket, Wiring Harness Mounting[09.2012 -] USF4# |
55779-50030 |
US $5.39 |
||
|
55781D
|
55781D
55782-50060 Louver, Cowl Top Ventilator, Rh[09.2012 -] USF4# |
55782-50060 |
US $23.30 |
||
|
55781E
|
55781E
55708-50061 Louver Sub-Assy, Cowl Top Ventilator[09.2012 -] USF4# |
55708-50061 |
US $107.74 |
||
|
55781E
|
55781E
55708-50081 Louver Sub-Assy, Cowl Top Ventilator[09.2012 -] USF4# 寒冷地仕様 |
55708-50081 |
US $110.66 |
||
|
55781G
|
55781G
90467-08108 Clip(For Hood To Cowl Top Seal)[09.2012 -] USF4# |
90467-08108 |
from US $0.82 |
||
|
55782
|
55782
55785-50040 Protector, Cowl Top Ventilator Louver, Rh[09.2012 -] USF4# |
55785-50040 |
US $13.21 |
||
|
55787
|
55787
90467-07076-C0 Clip, Radiator Grille[09.2012 - 03.2017] USF4# BLACK |
90467-07076-C0 |
from US $0.99 |
||
|
55787
|
55787
90467-07076-C7 Clip, Hood Moulding[03.2017 -] USF4# BLACK |
90467-07076-C7 |
from US $0.84 |
||
|
55799C
|
55799C
90467-10170-C0 Clip(For Front Fender Apron Seal)[09.2012 -] USF4# BLACK |
90467-10170-C0 |
from US $1.01 |
||
|
56111
|
56111
56101-50300
Glass, Windshield
[09.2012 - 08.2016] USF40,45 宴bシュシステム−有り（＊ＲＰＣＳ＆＊ＰＢ）; USF41,46 魔qＰＣＳ＆＊ＰＢ） |
56101-50300 |
— | ||
|
56111
|
56111
56101-50301
Glass, Windshield
[09.2016 -] USF40,45 “ｖｅｒｓｉｏｎ Ｃ”＆寒冷地仕様＆プリクラッシュシステム−有り（＊ＲＰＣＳ＆＊Ｐ Ｂ）; USF40,45 “ｖｅｒｓｉｏｎ Ｌ”＆寒冷地仕様＆プリクラッシュシステム−有り（＊ＲＰＣＳ＆＊Ｐ Ｂ）; USF40 “Ｆ ＳＰＯＲＴ”＆寒冷地仕様＆プリクラッシュシステム−有り（＊ＲＰＣＳ＆＊ＰＢ）; USF41,46 寒冷地仕様＆プリクラッシュシステム−有り（＊ＲＰＣＳ＆＊ＰＢ） |
56101-50301 |
— | ||
|
56111
|
56111
56101-50580
Glass, Windshield
[09.2012 - 08.2016] USF40,45; USF41,46 a） |
56101-50580 |
— | ||
|
56111
|
56111
56101-50581
Glass, Windshield
[09.2016 -] USF40,45 “ｖｅｒｓｉｏｎ Ｃ”＆プリクラッシュシステム−有り（＊ＲＰＣＳ＆＊ＰＢ）; USF40,45 “ｖｅｒｓｉｏｎ Ｌ”＆プリクラッシュシステム−有り（＊ＲＰＣＳ＆＊ＰＢ）; USF40 “Ｆ ＳＰＯＲＴ”＆プリクラッシュシステム−有り（＊ＲＰＣＳ＆＊ＰＢ）; USF41,46 プリクラッシュシステム−有り（＊ＲＰＣＳ＆＊ＰＢ） |
56101-50581 |
— | ||
|
56111
|
56111
56101-50690
Glass, Windshield
[09.2012 - 08.2016] USF40,45 ＊ＥＨＬ，Ｔ＝５．４８，グリーン,寒冷地仕様 |
56101-50690 |
— | ||
|
56111
|
56111
56101-50691
Glass, Windshield
[09.2016 -] USF40,45 寒冷地仕様 |
56101-50691 |
— | ||
|
56111
|
56111
56101-50700
Glass, Windshield
[09.2012 - 08.2016] USF40,45 ＊ＩＲＣＥＨＬ，Ｔ＝５．４８,“ｖｅｒｓｉｏｎ Ｌ”＆寒冷地仕様; USF41,46 ＊ＩＲＣＥＨＬ，Ｔ＝５．４８,寒冷地仕様 |
56101-50700 |
— | ||
|
56111
|
56111
56101-50701
Glass, Windshield
[09.2016 -] USF40,45 “ｖｅｒｓｉｏｎ Ｌ”＆寒冷地仕様; USF41,46 寒冷地仕様 |
56101-50701 |
— | ||
|
56111
|
56111
56101-50710
Glass, Windshield
[09.2012 - 08.2016] USF40,45 ＊ＬＡＭ，Ｔ＝５．４８，グリーン |
56101-50710 |
— | ||
|
56111
|
56111
56101-50711
Glass, Windshield
[09.2016 -] USF40,45 |
56101-50711 |
— | ||
|
56111
|
56111
56101-50720
Glass, Windshield
[09.2012 - 08.2016] USF41,46 ＊ＩＲＣＬ，Ｔ＝５．４８; USF40,45 ＊ＩＲＣＬ，Ｔ＝５．４８,“ｖｅｒｓｉｏｎ Ｌ” |
56101-50720 |
— | ||
|
56111
|
56111
56101-50721
Glass, Windshield
[09.2016 -] USF41,46; USF40,45 “ｖｅｒｓｉｏｎ Ｌ” |
56101-50721 |
— | ||
|
56114
|
56114
56114-50020 Retainer, Windshield Glass[09.2012 -] USF4# |
56114-50020 |
from US $4.33 |
||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[09.2012 -] USF4# |
56115-30100 |
from US $1.70 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[09.2012 -] USF4# |
56116-22050 |
from US $1.38 |
||
|
56117D
|
56117D
56117-50120 Dam, Windshield Glass Adhesive[09.2012 -] USF4# 長さ＝２９１７; USF40,45 魔qＰＣＳ＆＊ＰＢ）; USF40,45 魔oＢ）; USF40,45 長さ＝２９１７,“ｖｅｒｓｉｏｎ Ｌ”; USF40,45 長さ＝２９１７,“ｖｅｒｓｉｏｎ Ｌ”＆寒冷地仕様; USF4# 長さ＝２９１７,寒冷地仕様; USF41,46 長さ＝２９１７,寒冷地仕様＆プリクラッシュシステム−有り（＊ＲＰＣＳ＆＊ＰＢ）; USF41,46 長さ＝２９１７,プリクラッシュシステム−有り（＊ＲＰＣＳ＆＊ＰＢ） |
56117-50120 |
US $13.48 |
||
|
56118C
|
56118C
56118-30080 Retainer, Windshield Glass, No.2[09.2012 -] USF4# |
56118-30080 |
US $1.75 |
||
|
56119
|
56119
56119-50050 Seal, Windshield Glass[09.2012 -] USF4# |
56119-50050 |
US $17.78 |
||
|
75533G
|
75533G
75531-50050 Moulding, Windshield, Outside[09.2012 -] USF4# |
75531-50050 |
from US $30.07 |
||
|
9046710206
|
9046710206
90467-10206 Clip, Front Fender Liner, No.3 |
90467-10206 |
from US $1.31 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
