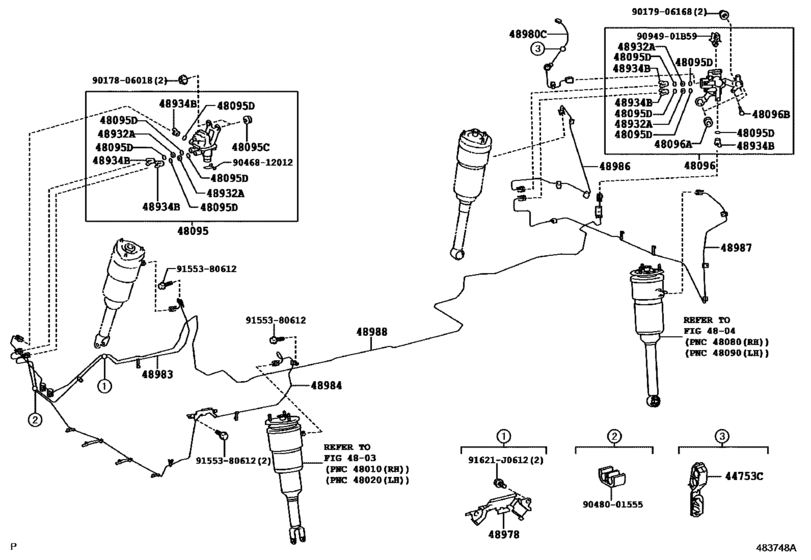

Height Control (Auto-Leveler) ([09.2012 - ] (1209- )) Diagram Toyota LEXUS LS
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- USF45
- ENGINE
- 1URFSE
- TRANSMISSION
- ATM
- Model
- LS460
- From
- 09.2012
- Vehicle Model
- LS460
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44753C
|
44753C
90989-01107 Clamp, Height Control Tube, No.2[09.2012 -] USF4# |
90989-01107 |
US $1.60 |
||
|
48095
|
48095
48095-30060 Valve Sub-Assy, Height Control, No.1[09.2012 -] USF4# |
48095-30060 |
from US $244.76 |
||
|
48095C
|
48095C
90385-09010 Bush(For Height Control Valve No.1)[09.2012 -] USF4# |
90385-09010 |
US $0.84 |
||
|
48095D
|
48095D
90301-04011 Ring, O(For Front Pneumatic Cylinder Rh)[09.2012 -] USF4# |
90301-04011 |
US $2.24 |
||
|
48096
|
48096
48096-50050 Valve Sub-Assy, Height Control, No.2[09.2012 -] USF4# |
48096-50050 |
from US $143.80 |
||
|
48096A
|
48096A
48912-30020 Bush, No.2(For Height Control Valve)[09.2012 -] USF4# |
48912-30020 |
US $1.60 |
||
|
48096B
|
48096B
90541-05023 Cushion, No.2(For Height Control Valve)[09.2012 -] USF4# |
90541-05023 |
US $1.31 |
||
|
48932A
|
48932A
48932-30010 Plate, Height Control Tube[09.2012 -] USF4# |
48932-30010 |
from US $1.91 |
||
|
48934B
|
48934B
48934-30010 Plug, Height Control[09.2012 -] USF4# |
48934-30010 |
from US $1.91 |
||
|
48978
|
48978
48978-50020 Cover, Height Control Compressor[09.2012 -] USF4# |
48978-50020 |
US $6.26 |
||
|
48980C
|
48980C
48980-50030 Harnnes Assy, Height Control Valve[09.2012 -] USF4# |
48980-50030 |
US $8.74 |
||
|
48983
|
48983
48983-50090 Tube, Height Control, No.3[09.2012 -] USF4# |
48983-50090 |
from US $118.13 |
||
|
48984
|
48984
48984-50090 Tube, Height Control, No.4[09.2012 -] USF4# |
48984-50090 |
US $233.28 |
||
|
48986
|
48986
48986-50050 Tube, Height Control, No.6[09.2012 -] USF4# |
48986-50050 |
US $56.78 |
||
|
48987
|
48987
48987-50040 Tube, Height Control, No.7[09.2012 -] USF4# |
48987-50040 |
US $92.60 |
||
|
48988
|
48988
48988-50100 Tube, Height Control, No.8[09.2012 -] USF40,45 |
48988-50100 |
US $39.17 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9094901B59
|
9094901B59
90949-01B59 Clamp, Height Control Tube, No.2 |
90949-01B59 |
US $0.87 |
||
|
9017806018
|
9017806018
90178-06018 NUT,FLANGE |
90178-06018 |
from US $0.74 |
||
|
9017906168
|
9017906168
90179-06168 Nut & Washer Assy |
90179-06168 |
from US $1.05 |
||
|
9046812012
|
9046812012
90468-12012 Clip(For Pneumatic Tank Assy) |
90468-12012 |
US $1.12 |
||
|
9048001555
|
9048001555
90480-01555 Grommet(For Front Brake Tube) |
90480-01555 |
US $3.36 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.72 |
