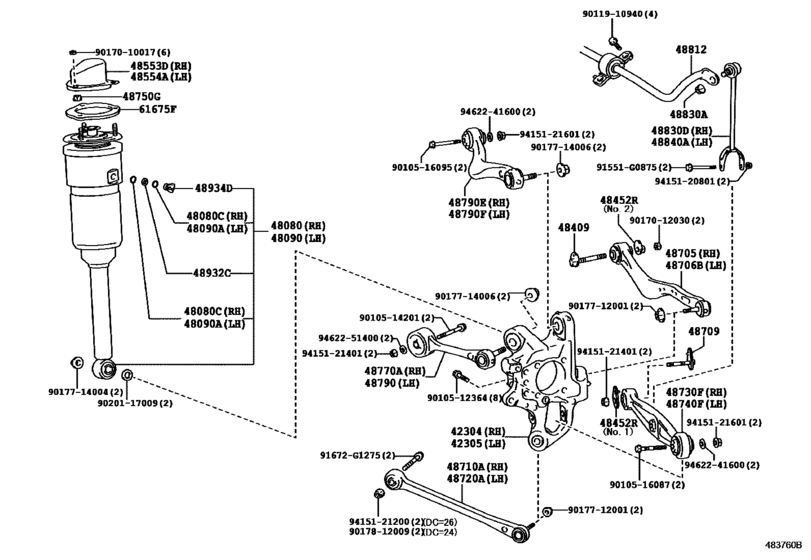

Rear Spring & Shock Absorber ([09.2012 - ] (1209- )) Diagram Toyota LEXUS LS
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- USF45
- ENGINE
- 1URFSE
- TRANSMISSION
- ATM
- Model
- LS460
- From
- 09.2012
- Vehicle Model
- LS460
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42304
|
42304
42304-50100 Carrier Sub-Assy, Rear Axle, Rh[09.2012 -] USF4# |
42304-50100 |
US $337.21 |
||
|
42305
|
42305
42305-50100 Carrier Sub-Assy, Rear Axle, Lh[09.2012 -] USF4# |
42305-50100 |
from US $337.21 |
||
|
48080
|
48080
48080-50360 Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber[09.2012 - 12.2013] USF45,46 |
48080-50360 |
US $910 |
||
| replacement | |||||
|
48080
|
48080
48080-50361 Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber[09.2012 - 12.2013] USF45,46 |
48080-50361 |
US $827.01 |
||
|
48080
|
48080
48080-50361 Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber[01.2014 -] USF45,46 |
48080-50361 |
US $827.01 |
||
|
48080C
|
48080C
90301-04011 Ring, O(For Front Pneumatic Cylinder Rh)[09.2012 -] USF4# |
90301-04011 |
US $2.24 |
||
|
48090
|
48090
48090-50360 Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber[09.2012 - 12.2013] USF45,46 |
48090-50360 |
US $910 |
||
| replacement | |||||
|
48090
|
48090
48090-50361 Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber[09.2012 - 12.2013] USF45,46 |
48090-50361 |
US $1,128.23 |
||
|
48090
|
48090
48090-50361 Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber[01.2014 -] USF45,46 |
48090-50361 |
US $1,128.23 |
||
|
48090A
|
48090A
90301-04011 Ring, O(For Front Pneumatic Cylinder Rh)[09.2012 -] USF4# |
90301-04011 |
US $2.24 |
||
|
48409
|
48409
48409-50020 Cam Sub-Assy, Rear Suspension Toe Adjust[09.2012 -] USF4# |
48409-50020 |
from US $11.27 |
||
|
48452R
|
48452R
48452-50010 Plate, Rear Suspension Toe Adjust, No.2[09.2012 -] USF4# マーク １，ＮＯ．１ |
48452-50010 |
US $3.68 |
||
|
48452R
|
48452R
48452-50020 Plate, Rear Suspension Toe Adjust, No.2[09.2012 -] USF4# マーク ２，ＮＯ．１ |
48452-50020 |
US $2.80 |
||
|
48452R
|
48452R
48452-50030 Plate, Rear Suspension Toe Adjust, No.2[09.2012 -] USF4# マーク ３，ＮＯ．１ |
48452-50030 |
US $3.14 |
||
|
48452R
|
48452R
48452-50040 Plate, Rear Suspension Toe Adjust, No.2[09.2012 -] USF4# ＮＯ．２ |
48452-50040 |
US $5.92 |
||
|
48553D
|
48553D
48553-50054 Cap, Rear Shock Absorber, Rh[09.2012 -] USF4# |
48553-50054 |
US $13.98 |
||
|
48554A
|
48554A
48554-50064 Cap, Rear Shock Absorber, Lh[09.2012 -] USF4# |
48554-50064 |
US $12.52 |
||
|
48705
|
48705
48705-50030 Link Sub-Assy, Toe Control, Rh[09.2012 -] USF4# |
48705-50030 |
US $208.80 |
||
|
48706B
|
48706B
48706-50020 Link Sub-Assy, Toe Control, Lh[09.2012 -] USF4# |
48706-50020 |
US $208.80 |
||
|
48709
|
48709
48709-50040 Attachment Sub-Assy, Rear Suspension Arm[09.2012 -] USF4# マーク １ |
48709-50040 |
US $18.42 |
||
|
48709
|
48709
48709-50050 Attachment Sub-Assy, Rear Suspension Arm[09.2012 -] USF4# マーク ２ |
48709-50050 |
US $20.27 |
||
|
48709
|
48709
48709-50060 Attachment Sub-Assy, Rear Suspension Arm[09.2012 -] USF4# マーク ３ |
48709-50060 |
US $16.20 |
||
|
48710A
|
48710A
48710-50080
Arm Assy, Rear Suspension, No.1 Rh
[09.2012 -] USF4# |
48710-50080 |
— | ||
| replacement | |||||
|
48710A
|
48710A
48710-40080 Arm assy, Rear Suspension, no.1[09.2012 -] USF4# |
48710-40080 |
from US $205.92 |
||
|
48720A
|
48720A
48710-50080
Arm Assy, Rear Suspension, No.1 Rh
[09.2012 -] USF4# |
48710-50080 |
— | ||
| replacement | |||||
|
48720A
|
48720A
48710-40080 Arm assy, Rear Suspension, no.1[09.2012 -] USF4# |
48710-40080 |
from US $205.92 |
||
|
48730F
|
48730F
48730-50111 Arm Assy, Rear Suspension, No.2 Rh[09.2012 -] USF4# |
48730-50111 |
from US $243.36 |
||
|
48740F
|
48740F
48730-50111 Arm Assy, Rear Suspension, No.2 Rh[09.2012 -] USF4# |
48730-50111 |
from US $243.36 |
||
|
48750G
|
48750G
90179-10088 Nut[09.2012 -] USF4# |
90179-10088 |
from US $1.07 |
||
|
48770A
|
48770A
48710-50100 Arm Assy, Upper Control, Rear Rh[09.2012 -] USF45,46; USF41 サスペンション−エアサスペンション コンフォート |
48710-50100 |
US $71.49 |
||
|
48790
|
48790
48710-50100 Arm Assy, Upper Control, Rear Rh[09.2012 -] USF45,46; USF41 サスペンション−エアサスペンション コンフォート |
48710-50100 |
US $71.49 |
||
|
48790E
|
48790E
48770-50060 Arm Assy, Upper Control, Rear Rh[09.2012 -] USF4# |
48770-50060 |
from US $383.29 |
||
|
48790F
|
48790F
48790-50080 Arm Assy, Upper Control, Rear Lh[09.2012 -] USF4# |
48790-50080 |
US $354.20 |
||
|
48812
|
48812
48805-50010 Bar, Stabilizer, Rear[09.2012 -] USF45,46 |
48805-50010 |
US $107.74 |
||
|
48830A
|
48830A
90179-12151 Nut(For Front Stabilizer Link)[09.2012 -] USF4# |
90179-12151 |
from US $0.94 |
||
|
48830D
|
48830D
48830-50040 Link Assy, Rear Stabilizer, Rh[09.2012 -] USF4# |
48830-50040 |
from US $43.78 |
||
|
48840A
|
48840A
48840-50020 Link Assy, Rear Stabilizer, Lh[09.2012 -] USF4# |
48840-50020 |
from US $43.78 |
||
|
48932C
|
48932C
48932-30010 Plate, Height Control Tube[09.2012 -] USF4# |
48932-30010 |
from US $1.91 |
||
|
48934D
|
48934D
48934-30010 Plug, Height Control[09.2012 -] USF4# |
48934-30010 |
from US $1.91 |
||
|
61675F
|
61675F
61675-50030 Reinforcement, Rear Suspension Spring Support[09.2012 -] USF4# |
61675-50030 |
US $6.64 |
||
|
91551G0875
|
91551G0875
91551-G0875 Bolt |
91551-G0875 |
US $2.72 |
||
|
91672G1275
|
91672G1275
91672-G1275 BOLT FLANGE |
91672-G1275 |
US $4 |
||
|
9010512364
|
9010512364
90105-12364 Bolt (For Rear Axle Bearing Case Rh) |
90105-12364 |
US $4 |
||
|
9010514201
|
9010514201
90105-14201 New Genuine Part |
90105-14201 |
US $8.18 |
||
|
9010516087
|
9010516087
90105-16087 BOLT FLANGE |
90105-16087 |
US $8.64 |
||
|
9010516095
|
9010516095
90105-16095 New Genuine Part |
90105-16095 |
US $5.68 |
||
|
9011910940
|
9011910940
90119-10940 BOLT WWASHER |
90119-10940 |
US $1.60 |
||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
||
|
9017012030
|
9017012030
90170-12030 NUTHEXAGON |
90170-12030 |
from US $1.29 |
||
|
9017712001
|
9017712001
90177-12001 NUT, LOCK |
90177-12001 |
US $3.52 |
||
|
9017714004
|
9017714004
90177-14004 New Genuine Part |
90177-14004 |
US $2.72 |
||
|
9017714006
|
9017714006
90177-14006 New Genuine Part |
90177-14006 |
US $3.52 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
US $1.92 |
||
|
9020117009
|
9020117009
90201-17009 New Genuine Part |
90201-17009 |
US $2.08 |
||
|
9415120801
|
9415120801
94151-20801 New Genuine Part |
94151-20801 |
US $1.28 |
||
|
9415121200
|
9415121200
94151-21200 NUT FLANGE |
94151-21200 |
US $2.24 |
||
|
9415121401
|
9415121401
94151-21401 NUT FLANGE |
94151-21401 |
from US $1.25 |
||
|
9415121601
|
9415121601
94151-21601 Nut(For Front Suspension Lower Arm) |
94151-21601 |
from US $2.38 |
||
|
9462241600
|
9462241600
94622-41600 WASHER PLATE |
94622-41600 |
US $2.56 |
||
|
9462251400
|
9462251400
94622-51400 Washer(For Front Suspension Lower Arm No.1 Rh) |
94622-51400 |
from US $1.35 |
||
