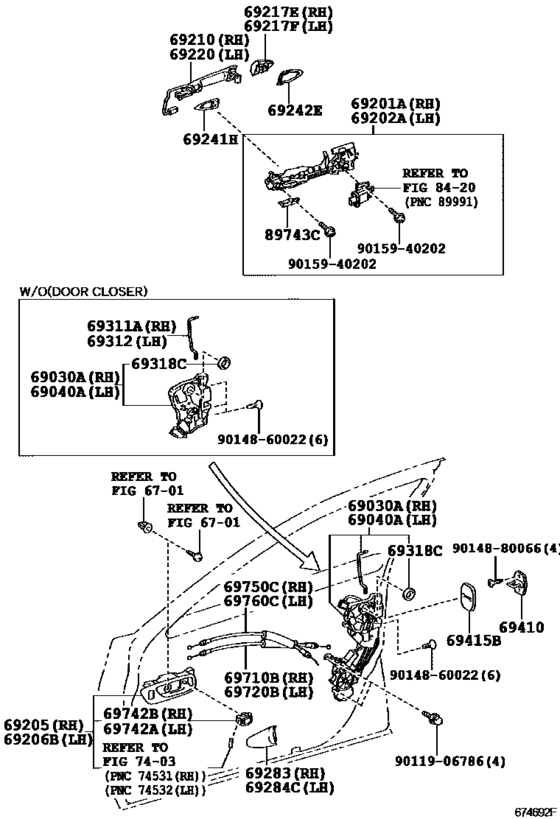

Front Door Lock & Handle ([08.2006 - ] (0608- )) Diagram Toyota LEXUS LS
- Year
- 2008 - 2012
- Sales region
- U.S.A.
- Frame
- USF46
- ENGINE
- 1URFSE
- TRANSMISSION
- ATM
- Model
- LS460L
- From
- 09.2008
- To
- 09.2012
- Vehicle Model
- LS460L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69030A
|
69030A
69030-42230 Lock Assy, Front Door W/motor, Rh[09.2008 - 09.2009] USF4# |
69030-42230 |
from US $150.27 |
||
|
69030A
|
69030A
69030-50270 Lock Assy, Front Door W/motor, RhFRONT DOOR W/MOTOR, RH [09.2008 - 09.2009] USF40,41 USA POSSESSIONS&AUTO & EASY CLOSER DOOR-WITH(DOOR & LUGGAGE CLOSER); USF4# KOREA SPEC&AUTO & EASY CLOSER DOOR-WITH(DOOR & LUGGAGE CLOSER); USF4# AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID) |
69030-50270 |
US $390.21 |
||
|
69030A
|
69030A
69030-50320
Lock Assy, Front Door W/motor, Rh
[09.2009 - 09.2012] USF46; USF41 VERSION U OR U I PACKAGE OR KOREA SPEC; USF41 W(OTTOMAN:4 SEAT); USF41 W(OTTOMAN:5 SEAT); USF41 REAR COMFORT PACKAGE; USF40,45 AUTO & EASY CLOSER DOOR-W(DOOR & LUG CLOSER & POWER TRUNK LID) |
69030-50320 |
— | ||
|
69040A
|
69040A
69040-42250 Lock Assy, Front Door W/motor, Lh[09.2008 - 09.2009] USF4# |
69040-42250 |
from US $180 |
||
|
69040A
|
69040A
69040-50250 Lock Assy, Front Door W/motor, LhFRONT DOOR W/MOTOR, LH [09.2008 - 09.2009] USF40,41 USA POSSESSIONS&AUTO & EASY CLOSER DOOR-WITH(DOOR & LUGGAGE CLOSER); USF4# KOREA SPEC&AUTO & EASY CLOSER DOOR-WITH(DOOR & LUGGAGE CLOSER); USF4# AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID) |
69040-50250 |
from US $400.40 |
||
|
69040A
|
69040A
69040-50300 Lock Assy, Front Door W/motor, LhFRONT DOOR W/MOTOR, LH [09.2009 - 09.2012] USF46; USF41 VERSION U OR U I PACKAGE OR KOREA SPEC; USF41 W(OTTOMAN:4 SEAT); USF41 W(OTTOMAN:5 SEAT); USF41 REAR COMFORT PACKAGE; USF40,45 AUTO & EASY CLOSER DOOR-W(DOOR & LUG CLOSER & POWER TRUNK LID) |
69040-50300 |
US $302.85 |
||
|
69201A
|
69201A
69201-50080 Frame Sub-Assy, Front Door Outside Handle, Rh[09.2008 - 09.2009] USF4# |
69201-50080 |
from US $206.90 |
||
|
69202A
|
69202A
69202-50050 Frame Sub-Assy, Front Door Outside Handle, Lh[09.2008 - 09.2009] USF4# |
69202-50050 |
US $208.21 |
||
|
69205
|
69205
67605-50250-A0 Handle Sub-Assy, Front Door Inside, Rh[09.2008 - 09.2009] USF4# IVORY,TRIM00 |
67605-50250-A0 |
US $85.90 |
||
|
69205
|
69205
67605-50250-A1 Handle Sub-Assy, Front Door Inside, Rh[09.2008 - 09.2009] USF4# MELLOW WHITE,TRIM01 |
67605-50250-A1 |
US $64.65 |
||
|
69205
|
69205
67605-50250-A2 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [09.2009 - 09.2012] USF4# IVORY,TRIM00,06 |
67605-50250-A2 |
US $64.65 |
||
|
69205
|
69205
67605-50250-B0 Handle Sub-Assy, Front Door Inside, Rh[09.2008 - 09.2009] USF4# LT.GRAY,TRIM1# |
67605-50250-B0 |
US $85.90 |
||
|
69205
|
69205
67605-50250-C0 Handle Sub-Assy, Front Door Inside, Rh[09.2008 - 09.2009] USF4# BLACK,TRIM2# |
67605-50250-C0 |
US $64.65 |
||
|
69206B
|
69206B
67606-50250-A0 Handle Sub-Assy, Front Door Inside, Lh[09.2008 - 09.2009] USF4# IVORY,TRIM00 |
67606-50250-A0 |
US $85.90 |
||
|
69206B
|
69206B
67606-50250-A1 Handle Sub-Assy, Front Door Inside, Lh[09.2008 - 09.2009] USF4# MELLOW WHITE,TRIM01 |
67606-50250-A1 |
US $64.65 |
||
|
69206B
|
69206B
67606-50250-A2 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [09.2009 - 09.2012] USF4# IVORY,TRIM00,06 |
67606-50250-A2 |
US $272.07 |
||
|
69206B
|
69206B
67606-50250-B0 Handle Sub-Assy, Front Door Inside, Lh[09.2008 - 09.2009] USF4# LT.GRAY,TRIM1# |
67606-50250-B0 |
US $85.90 |
||
|
69206B
|
69206B
67606-50250-C0 Handle Sub-Assy, Front Door Inside, Lh[09.2008 - 09.2009] USF4# BLACK,TRIM2# |
67606-50250-C0 |
US $64.65 |
||
|
69210
|
69210
69210-33090 Handle Assy, Front Door, Outside Rh[09.2008 - 09.2009] USF4# *CR |
69210-33090 |
from US $222.32 |
||
|
69217E
|
69217E
69217-33040 Cover, Front Door Outside Handle, RhFRONT DOOR OUTSIDE HANDLE, RH [09.2008 - 09.2009] USF4# *CR |
69217-33040 |
from US $16.45 |
||
|
69217F
|
69217F
69218-33010 Cover, Front Door Outside Handle, LhFRONT DOOR OUTSIDE HANDLE, LH [09.2008 - 09.2009] USF4# *CR |
69218-33010 |
from US $6.06 |
||
|
69220
|
69220
69220-33060 Handle Assy, Front Door Outside, Lh[09.2008 - 09.2009] USF4# *CR |
69220-33060 |
from US $137.18 |
||
|
69241H
|
69241H
69241-53010 Pad, Rear Door Outside Handle, Front[09.2008 - 09.2009] USF4# RH |
69241-53010 |
from US $9.59 |
||
|
69241H
|
69241H
69242-53010 Pad, Rear Door Outside Handle, Front[09.2008 - 09.2009] USF4# LH |
69242-53010 |
from US $8.48 |
||
|
69242E
|
69242E
69241-50030 Pad, Front Door Outside Handle, Rear[09.2008 - 09.2009] USF4# RH |
69241-50030 |
from US $10.24 |
||
|
69242E
|
69242E
69242-50030 Pad, Front Door Outside Handle, Rear[09.2008 - 09.2009] USF4# LH |
69242-50030 |
from US $10.40 |
||
|
69283
|
69283
69283-30050-A0 Plug, Front Door Inside Handle Bezel, Rh[09.2008 - 09.2009] USF4# IVORY,TRIM00 |
69283-30050-A0 |
US $12.08 |
||
| replacement | |||||
|
69283
|
69283
69283-30050-A2 Plug, Front Door Inside Handle Bezel, RhFRONT DOOR INSIDE HANDLE BEZEL, RH [09.2008 - 09.2009] USF4# IVORY,TRIM00 |
69283-30050-A2 |
US $9.03 |
||
|
69283
|
69283
69283-30050-A1 Plug, Front Door Inside Handle Bezel, Rh[09.2008 - 09.2009] USF4# MELLOW WHITE,TRIM01 |
69283-30050-A1 |
US $9.03 |
||
|
69283
|
69283
69283-30050-A2 Plug, Front Door Inside Handle Bezel, RhFRONT DOOR INSIDE HANDLE BEZEL, RH [09.2009 - 09.2012] USF4# IVORY,TRIM00,06 |
69283-30050-A2 |
US $9.03 |
||
|
69283
|
69283
69283-30050-B0 Plug, Front Door Inside Handle Bezel, Rh[09.2008 - 09.2009] USF4# LT.GRAY,TRIM1# |
69283-30050-B0 |
US $12.08 |
||
|
69283
|
69283
69283-30050-C0 Plug, Front Door Inside Handle Bezel, Rh[09.2008 - 09.2009] USF4# BLACK,TRIM2# |
69283-30050-C0 |
US $10.72 |
||
|
69284C
|
69284C
69284-30050-A0 Plug, Front Door Inside Handle Bezel, Lh[09.2008 - 09.2009] USF4# IVORY,TRIM00 |
69284-30050-A0 |
US $12.08 |
||
| replacement | |||||
|
69284C
|
69284C
69284-30050-A2 Plug, Front Door Inside Handle Bezel, LhFRONT DOOR INSIDE HANDLE BEZEL, LH [09.2008 - 09.2009] USF4# IVORY,TRIM00 |
69284-30050-A2 |
US $9.03 |
||
|
69284C
|
69284C
69284-30050-A1 Plug, Front Door Inside Handle Bezel, Lh[09.2008 - 09.2009] USF4# MELLOW WHITE,TRIM01 |
69284-30050-A1 |
US $9.03 |
||
|
69284C
|
69284C
69284-30050-A2 Plug, Front Door Inside Handle Bezel, LhFRONT DOOR INSIDE HANDLE BEZEL, LH [09.2009 - 09.2012] USF4# IVORY,TRIM00,06 |
69284-30050-A2 |
US $9.03 |
||
|
69284C
|
69284C
69284-30050-B0 Plug, Front Door Inside Handle Bezel, Lh[09.2008 - 09.2009] USF4# LT.GRAY,TRIM1# |
69284-30050-B0 |
US $12.08 |
||
|
69284C
|
69284C
69284-30050-C0 Plug, Front Door Inside Handle Bezel, Lh[09.2008 - 09.2009] USF4# BLACK,TRIM2# |
69284-30050-C0 |
US $10.72 |
||
|
69311A
|
69311A
69311-50050
Rod, Front Door Lock Open, Rh
[09.2008 - 09.2009] USF4# |
69311-50050 |
— | ||
|
69312
|
69312
69312-50050
Rod, Front Door Lock Open, Lh
[09.2008 - 09.2009] USF4# |
69312-50050 |
— | ||
|
69318C
|
69318C
69318-51010 Seal, Front Door Lock Hole, Rh[09.2008 - 09.2009] USF4# |
69318-51010 |
from US $1.64 |
||
|
69410
|
69410
69410-30060 Plate Assy, Front Door Lock Striker[09.2008 - 09.2009] USF4# |
69410-30060 |
US $16.11 |
||
|
69415B
|
69415B
69415-33010 Cover, Door Lock Striker, Front[09.2008 - 09.2009] USF4# |
69415-33010 |
from US $3.72 |
||
|
69710B
|
69710B
69710-50030 Cable Assy, Front Door Lock Remote Control, Rh[09.2008 - 09.2009] USF4# |
69710-50030 |
US $24.47 |
||
|
69720B
|
69720B
69710-50030 Cable Assy, Front Door Lock Remote Control, Rh[09.2008 - 09.2009] USF4# |
69710-50030 |
US $24.47 |
||
|
69742A
|
69742A
69742-50020-A0 Knob, Rear Door Lock Control, Lh[09.2008 - 09.2009] USF4# IVORY,TRIM00 |
69742-50020-A0 |
US $15.43 |
||
|
69742A
|
69742A
69742-50020-A1 Knob, Rear Door Lock Control, Lh[09.2008 - 09.2009] USF4# MELLOW WHITE,TRIM01 |
69742-50020-A1 |
US $11.65 |
||
|
69742A
|
69742A
69742-50020-A2 Knob, Rear Door Lock Control, LhREAR DOOR LOCK CONTROL, LH [09.2009 - 09.2012] USF4# IVORY,TRIM00,06 |
69742-50020-A2 |
US $11.65 |
||
|
69742A
|
69742A
69742-50020-B0 Knob, Rear Door Lock Control, Lh[09.2008 - 09.2009] USF4# LT.GRAY,TRIM1# |
69742-50020-B0 |
US $15.43 |
||
|
69742A
|
69742A
69742-50020-C0 Knob, Rear Door Lock Control, Lh[09.2008 - 09.2009] USF4# BLACK,TRIM2# |
69742-50020-C0 |
US $13.18 |
||
|
69742B
|
69742B
69741-50020-A0 Knob, Front Door Lock Control, Rh[09.2008 - 09.2009] USF4# IVORY,TRIM00 |
69741-50020-A0 |
US $15.43 |
||
|
69742B
|
69742B
69741-50020-A1 Knob, Front Door Lock Control, Rh[09.2008 - 09.2009] USF4# MELLOW WHITE,TRIM01 |
69741-50020-A1 |
US $11.65 |
||
|
69742B
|
69742B
69741-50020-A2 Knob, Front Door Lock Control, RhFRONT DOOR LOCK CONTROL, RH [09.2009 - 09.2012] USF4# IVORY,TRIM00,06 |
69741-50020-A2 |
US $11.65 |
||
|
69742B
|
69742B
69741-50020-B0 Knob, Front Door Lock Control, Rh[09.2008 - 09.2009] USF4# LT.GRAY,TRIM1# |
69741-50020-B0 |
US $15.43 |
||
|
69742B
|
69742B
69741-50020-C0 Knob, Front Door Lock Control, Rh[09.2008 - 09.2009] USF4# BLACK,TRIM2# |
69741-50020-C0 |
US $13.18 |
||
|
69750C
|
69750C
69750-50050 Cable Assy, Front Door Inside Locking, Rh[09.2008 - 09.2009] USF4# |
69750-50050 |
US $13.54 |
||
|
69760C
|
69760C
69750-50050 Cable Assy, Front Door Inside Locking, Rh[09.2008 - 09.2009] USF4# |
69750-50050 |
US $13.54 |
||
|
89743C
|
89743C
89743-53010 Bracket, Electrical Key Wire Harness[09.2008 - 09.2009] USF4# RH |
89743-53010 |
US $6.26 |
||
|
89743C
|
89743C
89743-53020 Bracket, Electrical Key Wire Harness[09.2008 - 09.2009] USF4# LH |
89743-53020 |
US $6.26 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
from US $0.96 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.68 |
||
|
9015940202
|
9015940202
90159-40202 SCREW WWASHER |
90159-40202 |
US $0.96 |
||
