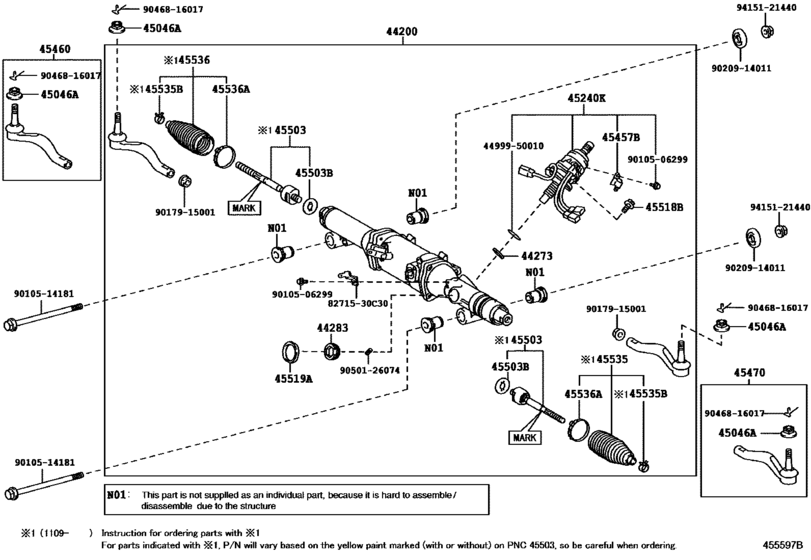

Front Steering Gear & Link ([09.2009 - ] (0909- )USF45,46..LHD) Diagram Toyota LEXUS LS
- Year
- 2008 - 2012
- Sales region
- General
- Frame
- USF46
- ENGINE
- 1URFSE
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- Model
- LS460L
- From
- 09.2008
- To
- 09.2012
- Vehicle Model
- LS460L
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44200
|
44200
44200-50360
Link Assy, Power Steering
[09.2008 - 09.2009] USF45,46..LHD |
44200-50360 |
— | ||
| replacement | |||||
|
44200
|
44200
44200-50361
Link Assy, Power Steering
[09.2008 - 09.2009] USF45,46..LHD |
44200-50361 |
— | ||
|
44200
|
44200
44200-50361
Link Assy, Power Steering
[09.2011 -] USF45,46..LHD |
44200-50361 |
— | ||
|
44273
|
44273
44273-50010 Plate, Steering Shaft Torque Sensor[09.2009 -] USF41..LHD..D4..EUR;USF40,45,46..D4..EUR; USF41..HTWC..EUR SUSPENSION-SPORT AIR SUSPENTION; USF41..HTWC..EUR SUSPENSION-SPORT AIR SUSPENTION&245/45R19 8J |
44273-50010 |
US $1.31 |
||
|
44283
|
44283
44283-50010 Cap, Rack Housing[09.2009 -] USF41..LHD..D4..EUR;USF40,45,46..D4..EUR; USF41..HTWC..EUR SUSPENSION-SPORT AIR SUSPENTION; USF41..HTWC..EUR SUSPENSION-SPORT AIR SUSPENTION&245/45R19 8J |
44283-50010 |
US $7.57 |
||
|
45046A
|
45046A
90171-12012 Nut, Castle(For Tie Rod End)[09.2008 - 09.2009] USF4# |
90171-12012 |
from US $1.56 |
||
|
45240K
|
45240K
45240-50080
Actuator Assy, Steering
[09.2009 - 08.2011] USF45,46..LHD |
45240-50080 |
— | ||
| replacement | |||||
|
45240K
|
45240K
45240-50081
Actuator Assy, Steering
[09.2009 - 08.2011] USF45,46..LHD |
45240-50081 |
— | ||
|
45240K
|
45240K
45240-50081
Actuator Assy, Steering
[09.2011 -] USF45,46..LHD |
45240-50081 |
— | ||
|
45457B
|
45457B
45457-50030 Protector, Steering Link[09.2009 -] USF45,46 |
45457-50030 |
US $2.62 |
||
|
45460
|
45460
45460-59095 Rod Assy, Tie, Rh[09.2008 - 09.2009] USF45,46 |
45460-59095 |
from US $40.89 |
||
|
45470
|
45470
45470-59105 Rod Assy, Tie, Lh[09.2008 - 09.2009] USF45,46 |
45470-59105 |
from US $40.89 |
||
|
45503
|
45503
45503-59145 End Sub-Assy, Steering Rack[09.2011 - 09.2012] USF45,46 W/O MARK |
45503-59145 |
from US $97.68 |
||
|
45503
|
45503
45503-59155
End Sub-Assy, Steering Rack
[09.2008 - 09.2009] USF45,46 |
45503-59155 |
— | ||
| replacements | |||||
|
45503
|
45503
45503-59145 End Sub-Assy, Steering Rack[09.2008 - 09.2009] USF45,46 |
45503-59145 |
from US $97.68 |
||
|
45503
|
45503
45535-59065 Boot, Steering Rack, No.1[09.2008 - 09.2009] USF45,46 |
45535-59065 |
from US $15.96 |
||
|
45503B
|
45503B
90214-16002 Washer, Claw(For Steering Rack End)[09.2008 - 09.2009] USF4# OD=42 |
90214-16002 |
US $3.92 |
||
|
45518B
|
45518B
45518-50010 Bolt, Steering Rack Housing[09.2009 -] USF41..LHD..D4..EUR;USF40,45,46..D4..EUR; USF41..HTWC..EUR SUSPENSION-SPORT AIR SUSPENTION; USF41..HTWC..EUR SUSPENSION-SPORT AIR SUSPENTION&245/45R19 8J |
45518-50010 |
US $4.66 |
||
|
45519A
|
45519A
45519-50010 Nut, Steering Rack Housing Bracket[09.2009 -] USF41..LHD..D4..EUR;USF40,45,46..D4..EUR; USF41..HTWC..EUR SUSPENSION-SPORT AIR SUSPENTION; USF41..HTWC..EUR SUSPENSION-SPORT AIR SUSPENTION&245/45R19 8J |
45519-50010 |
US $2.62 |
||
|
45535
|
45535
45535-26060 Boot, Steering Rack, No.1[09.2008 - 09.2009] USF45,46 |
45535-26060 |
from US $8.32 |
||
|
45535
|
45535
45535-29005 Boot, Steering Rack, No.1STEERING RACK, NO.1 [09.2009 - 09.2012] USF45,46 MARK=YELLOW |
45535-29005 |
US $7.72 |
||
| replacement | |||||
|
45535
|
45535
45535-59055 Boot, Steering Rack, No.1[09.2009 - 09.2012] USF45,46 MARK=YELLOW |
45535-59055 |
from US $12.64 |
||
|
45535
|
45535
45535-59065 Boot, Steering Rack, No.1[09.2011 - 09.2012] USF45,46 W/O MARK |
45535-59065 |
from US $15.96 |
||
|
45535B
|
45535B
90467-19019 Clip[09.2011 - 09.2012] USF45,46 W/O MARK |
90467-19019 |
from US $4.41 |
||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[09.2008 - 09.2009] USF45,46 |
90467-19021 |
from US $1.54 |
||
|
45536
|
45536
45535-26060 Boot, Steering Rack, No.1[09.2008 - 09.2009] USF45,46 |
45535-26060 |
from US $8.32 |
||
|
45536
|
45536
45535-29005 Boot, Steering Rack, No.1STEERING RACK, NO.1 [09.2009 - 09.2012] USF45,46 MARK=YELLOW |
45535-29005 |
US $7.72 |
||
| replacement | |||||
|
45536
|
45536
45535-59055 Boot, Steering Rack, No.1[09.2009 - 09.2012] USF45,46 MARK=YELLOW |
45535-59055 |
from US $12.64 |
||
|
45536
|
45536
45535-59065 Boot, Steering Rack, No.1[09.2011 - 09.2012] USF45,46 W/O MARK |
45535-59065 |
from US $15.96 |
||
|
45536A
|
45536A
90460-55016 Clamp(For Power Steering Rack Boot)[09.2008 - 09.2009] USF4# |
90460-55016 |
from US $3.84 |
||
|
8271530C30
|
8271530C30
82715-30C30
Bracket,wiring Harness Clamp
|
82715-30C30 |
— | ||
|
4499950010
|
4499950010
44999-50010 Element, Booster Control Valve Air Cleaner |
44999-50010 |
US $2.48 |
||
|
9010506299
|
9010506299
90105-06299 New Genuine Part |
90105-06299 |
US $0.44 |
||
|
9010514181
|
9010514181
90105-14181 New Genuine Part |
90105-14181 |
US $9.61 |
||
|
9017915001
|
9017915001
90179-15001 Nut (For Rear Axle Carrier) |
90179-15001 |
from US $3.14 |
||
|
9020914011
|
9020914011
90209-14011 New Genuine Part |
90209-14011 |
US $3.84 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.80 |
||
|
9050126074
|
9050126074
90501-26074 Spring(For Power Steering Rack Guide) |
90501-26074 |
US $1.40 |
||
|
9415121440
|
9415121440
94151-21440 New Genuine Part |
94151-21440 |
US $2.48 |
||
