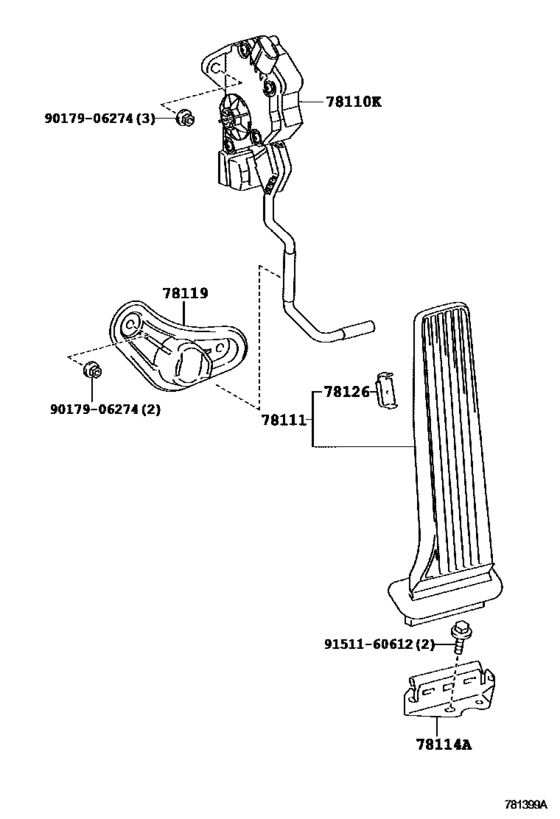

Accelerator Link ([09.2012 - 09.2013] (1209-1309)) Diagram Toyota LEXUS LS
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- UVF46
- body
- SED
- ENGINE
- 2URFSE
- TRANSMISSION
- ATM
- Model
- LS600L Hybrid
- From
- 09.2012
- Gear Shift Type
- CVFC
- No.of Doors
- 4D
- Vehicle Model
- LS600L Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110K
|
78110K
78110-50030
Sensor Assy, Accelerator Pedal
[09.2012 - 08.2013] UVF46 |
78110-50030 |
— | ||
| replacement | |||||
|
78110K
|
78110K
78110-50031
Sensor Assy, Accelerator Pedal
[09.2012 - 08.2013] UVF46 |
78110-50031 |
— | ||
|
78110K
|
78110K
78110-50031
Sensor Assy, Accelerator Pedal
[09.2013 - 01.2016] UVF46 |
78110-50031 |
— | ||
|
78110K
|
78110K
78110-50080
Sensor Assy, Accelerator Pedal
[02.2016 -] UVF46 |
78110-50080 |
— | ||
|
78111
|
78111
78101-50030
Pedal, Accelerator
[09.2013 -] UVF46 |
78101-50030 |
— | ||
|
78111
|
78111
78111-30200 Pedal, Accelerator[09.2012 - 09.2013] UVF46 |
78111-30200 |
US $12.08 |
||
|
78114A
|
78114A
78108-50030
Bracket, Accelerator Pedal Support
[09.2012 - 09.2013] UVF46 |
78108-50030 |
— | ||
|
78119
|
78119
78119-50070
Stopper, Accelerator Pedal Rod
[09.2012 -] UVF46 |
78119-50070 |
— | ||
|
78126
|
78126
78126-30060 Bracket, Accelerator Pedal Rod[09.2012 - 09.2013] UVF46 |
78126-30060 |
US $8.88 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.38 |
||
