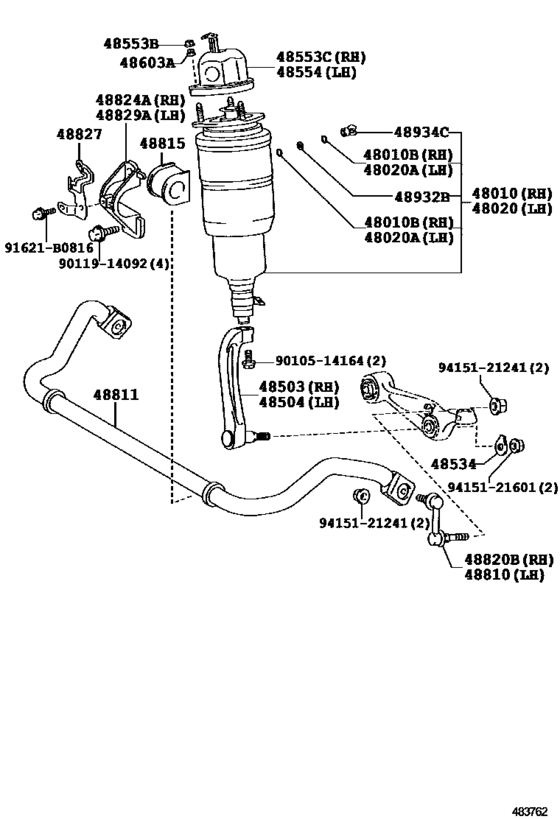

Front Spring & Shock Absorber ([09.2012 - ] (1209- )) Diagram Toyota LEXUS LS
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- UVF46
- body
- SED
- ENGINE
- 2URFSE
- TRANSMISSION
- ATM
- Model
- LS600L Hybrid
- From
- 09.2012
- Gear Shift Type
- CVFC
- No.of Doors
- 4D
- Vehicle Model
- LS600L Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48010
|
48010
48010-50340 Cylinder Assy, Pneumatic, Front Rh W/shock Absorber[09.2012 - 12.2013] UVF46 |
48010-50340 |
US $944.94 |
||
| replacement | |||||
|
48010
|
48010
48010-50341 Cylinder Assy, Pneumatic, Front Rh W/shock Absorber[09.2012 - 12.2013] UVF46 |
48010-50341 |
from US $926.40 |
||
|
48010
|
48010
48010-50341 Cylinder Assy, Pneumatic, Front Rh W/shock Absorber[01.2014 -] UVF46 |
48010-50341 |
from US $926.40 |
||
|
48010B
|
48010B
90301-04011 Ring, O(For Front Pneumatic Cylinder Rh)[09.2012 -] UVF46 |
90301-04011 |
from US $1.79 |
||
|
48020
|
48020
48020-50340 Cylinder Assy, Pneumatic, Front Lh W/shock Absorber[09.2012 - 12.2013] UVF46 |
48020-50340 |
US $944.94 |
||
| replacement | |||||
|
48020
|
48020
48020-50341 Cylinder Assy, Pneumatic, Front Lh W/shock Absorber[09.2012 - 12.2013] UVF46 |
48020-50341 |
from US $1,062.14 |
||
|
48020
|
48020
48020-50341 Cylinder Assy, Pneumatic, Front Lh W/shock Absorber[01.2014 -] UVF46 |
48020-50341 |
from US $1,062.14 |
||
|
48020A
|
48020A
90301-04011 Ring, O(For Front Pneumatic Cylinder Rh)[09.2012 -] UVF46 |
90301-04011 |
from US $1.79 |
||
|
48503
|
48503
48503-50010 Bracket Sub-Assy, Front Shock Absorber, Lower Rh[09.2012 -] UVF46 |
48503-50010 |
US $113.52 |
||
|
48504
|
48504
48504-50010 Bracket Sub-Assy, Front Shock Absorber, Lower Lh[09.2012 -] UVF46 |
48504-50010 |
US $113.52 |
||
|
48534
|
48534
48534-30010 Plate, Front Shock Absorber Upper Bracket[09.2012 -] UVF46 |
48534-30010 |
US $4.54 |
||
|
48553B
|
48553B
90179-10174 Nut(For Front Pneumatic Cylinder)[09.2012 -] UVF46 |
90179-10174 |
US $1.10 |
||
|
48553C
|
48553C
48553-50120 Cap, Front Shock Absorber, Rh[09.2012 -] UVF46 |
48553-50120 |
US $22.16 |
||
|
48554
|
48554
48553-50120 Cap, Front Shock Absorber, Rh[09.2012 -] UVF46 |
48553-50120 |
US $22.16 |
||
|
48603A
|
48603A
90178-10014 Nut(For Front Suspension Support)[09.2012 -] UVF46 |
90178-10014 |
from US $1.08 |
||
|
48810
|
48810
48810-50020 Link Assy, Front Stabilizer, Lh[09.2012 -] UVF46 |
48810-50020 |
from US $30.97 |
||
|
48811
|
48811
48811-50150 Bar, Stabilizer, Front[09.2012 -] UVF46 |
48811-50150 |
US $187.82 |
||
|
48815
|
48815
48815-50220 Bush, Front Stabilizer Bar, No.1[09.2012 -] UVF46 |
48815-50220 |
from US $16.33 |
||
|
48820B
|
48820B
48820-50030 Link Assy, Front Stabilizer, Rh[09.2012 -] UVF46 |
48820-50030 |
from US $30.97 |
||
|
48824A
|
48824A
48824-50060 Bracket, Front Stabilizer, No.1 Rh[09.2012 -] UVF46 |
48824-50060 |
US $34.33 |
||
|
48827
|
48827
48827-50010 Bracket, Front Stabilizer, No.2 Rh[09.2012 -] UVF46 |
48827-50010 |
US $11.07 |
||
|
48829A
|
48829A
48829-50010 Bracket, Front Stabilizer, No.1 Lh[09.2012 -] UVF46 |
48829-50010 |
US $34.33 |
||
|
48932B
|
48932B
48932-30010 Plate, Height Control Tube[09.2012 -] UVF46 |
48932-30010 |
US $1.65 |
||
|
48934C
|
48934C
48934-30010 Plug, Height Control[09.2012 -] UVF46 |
48934-30010 |
from US $1.58 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.78 |
||
|
9010514164
|
9010514164
90105-14164 New Genuine Part |
90105-14164 |
US $2.34 |
||
|
9011914092
|
9011914092
90119-14092 BOLT |
90119-14092 |
from US $2.47 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $0.93 |
||
|
9415121601
|
9415121601
94151-21601 Nut(For Front Suspension Lower Arm) |
94151-21601 |
from US $1.22 |
||
