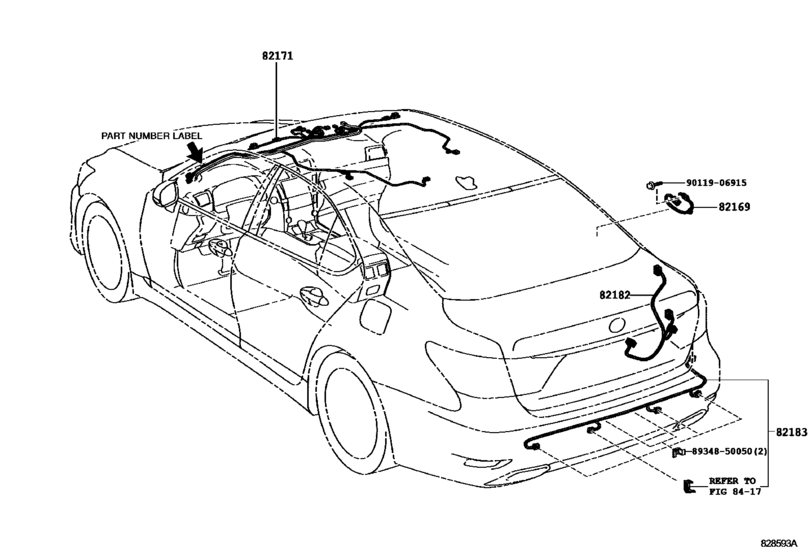

Wiring & Clamp ([09.2012 - ] ROOF & FRAME & LUGGAGE (1209- )LHD) Diagram Toyota LEXUS LS
- Year
- 2012 - 2018
- Sales region
- Europe
- Frame
- UVF46
- ENGINE
- 2URFSE
- DESTINATION
- GCC
- Model
- LS600L Hybrid
- From
- 09.2012
- Vehicle Model
- LS600L Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82169
|
82169
82169-50011 Wire Frame, No.3NO.3 [09.2012 -] UVF4# |
82169-50011 |
US $9.61 |
||
|
82171
|
82171
82171-50B50
Wire, Roof, No.1
[09.2012 -] UVF46..GCC PRE-COLLISION SYSTEM-WITH(*PB); UVF46..LHD..EUR PRE-COLLISION SYSTEM-WITH(*RPCS & *PB) |
82171-50B50 |
— | ||
|
82171
|
82171
82171-50B70 Wire, Roof, No.1[09.2012 - 10.2014] UVF46..EUR,GCC |
82171-50B70 |
US $173.26 |
||
|
82171
|
82171
82171-50B71 Wire, Roof, No.1[10.2014 -] UVF46..EUR,GCC |
82171-50B71 |
US $157.25 |
||
|
82171
|
82171
82171-50C00
Wire, Roof, No.1
[09.2012 -] UVF46..GCC EXECUTIVE PACKAGE(4SEAT)&PRE-COLLISION SYSTEM-WITH(*PB); UVF46..LHD..EUR EXECUTIVE PACKAGE(4SEAT)&PRE-COLLISION SYSTEM-WITH(*RPCS & *PB) |
82171-50C00 |
— | ||
|
82171
|
82171
82171-50C20 Wire, Roof, No.1[09.2012 - 10.2014] UVF46..EUR,GCC EXECUTIVE PACKAGE(4SEAT) |
82171-50C20 |
US $173.26 |
||
|
82171
|
82171
82171-50C21 Wire, Roof, No.1[10.2014 -] UVF46..EUR,GCC EXECUTIVE PACKAGE(4SEAT) |
82171-50C21 |
US $157.25 |
||
|
82171
|
82171
82171-50C50
Wire, Roof, No.1
[09.2012 -] UVF46..GCC EXECUTIVE PACKAGE(5SEAT)&PRE-COLLISION SYSTEM-WITH(*PB); UVF46..LHD..EUR EXECUTIVE PACKAGE(5SEAT)&PRE-COLLISION SYSTEM-WITH(*RPCS & *PB) |
82171-50C50 |
— | ||
|
82171
|
82171
82171-50C70 Wire, Roof, No.1[09.2012 - 10.2014] UVF46..EUR,GCC EXECUTIVE PACKAGE(5SEAT) |
82171-50C70 |
US $173.26 |
||
|
82171
|
82171
82171-50C71 Wire, Roof, No.1[10.2014 -] UVF46..EUR,GCC EXECUTIVE PACKAGE(5SEAT) |
82171-50C71 |
US $157.25 |
||
|
82182
|
82182
82182-50040 Wire, Luggage Room, No.2[09.2012 - 10.2014] UVF46..GCC PRE-COLLISION SYSTEM-WITH(*PB)&NIGHT VIEW-VIEW ONLY; UVF4#..EUR PRE-COLLISION SYSTEM-WITH(*RPCS & *PB)&NIGHT VIEW-VIEW ONLY |
82182-50040 |
US $21.26 |
||
|
82182
|
82182
82182-50041 Wire, Luggage Room, No.2[10.2014 -] UVF46..CHI; UVF46..RHD;UVF46..GCC PRE-COLLISION SYSTEM-WITH(*PB)&NIGHT VIEW-VIEW ONLY; UVF46..EUR;UVF45..LHD..EUR PRE-COLLISION SYSTEM-WITH(*RPCS & *PB)&NIGHT VIEW-VIEW ONLY |
82182-50041 |
US $32.93 |
||
|
82182
|
82182
82182-50050 Wire, Luggage Room, No.2[09.2012 -] UVF46..GCC PRE-COLLISION SYSTEM-WITH(*PB); UVF46..EUR;UVF45..LHD..EUR PRE-COLLISION SYSTEM-WITH(*RPCS & *PB) |
82182-50050 |
US $12.08 |
||
|
82183
|
82183
82183-50030 Wire, Luggage Room, No.3[09.2012 -] UVF4# |
82183-50030 |
US $28.83 |
||
|
8934850050
|
8934850050
89348-50050 Clamp, Headlamp Cleaner, No.1 |
89348-50050 |
from US $4.16 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
