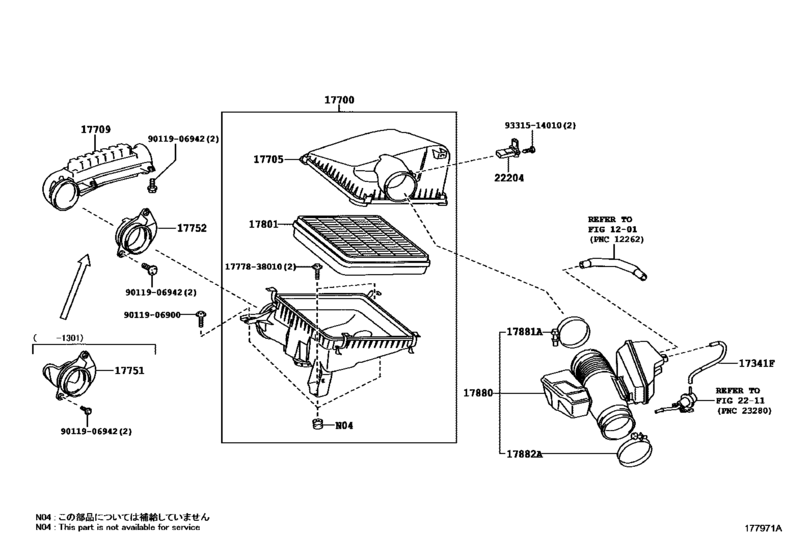

Air Cleaner ([01.2012 - ] (1201- )1URFE) Diagram Toyota LEXUS LX
- Year
- 2012 - 2015
- Sales region
- General
- Frame
- URJ202
- ENGINE
- 1URFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LX460
- From
- 01.2012
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- LX460
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341F
|
17341F
17341-38131
Hose, Air, No.1
[01.2012 - 09.2015] 1URFE..URJ202 |
17341-38131 |
— | ||
|
17700
|
17700
17700-50350 Cleaner Assy, Air[01.2012 - 09.2015] 1URFE..URJ202 |
17700-50350 |
US $211.12 |
||
|
17705
|
17705
17705-38090 Cap Sub-Assy, Air Cleaner[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
17705-38090 |
US $47.58 |
||
|
17709
|
17709
17709-38010 Inlet Sub-Assy, Air Cleaner[01.2013 - 09.2015] 1URFE,3URFE..URJ20# |
17709-38010 |
from US $34.79 |
||
|
17751
|
17751
17751-38050 Inlet, Air Cleaner, No.1[01.2012 - 01.2013] 1URFE,3URFE..URJ20#..ARL,CHI; 3URFE..URJ201..GCC EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD) |
17751-38050 |
US $14.66 |
||
|
17752
|
17752
17752-51011 Inlet, Air Cleaner, No.2[01.2013 - 09.2015] 1URFE,3URFE..URJ20#..ARL,CHI |
17752-51011 |
from US $17.51 |
||
|
17801
|
17801
17801-38030 Element Sub-Assy, Air Cleaner Filter[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
17801-38030 |
from US $47.15 |
||
|
17880
|
17880
17880-38120 Hose Assy, Air CleanerAIR CLEANER [01.2012 - 09.2015] 1URFE..URJ202 |
17880-38120 |
from US $106.14 |
||
|
17881A
|
17881A
96111-11060 Clamp(For Air Cleaner Hose, No.1)[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
96111-11060 |
US $4.37 |
||
|
17882A
|
17882A
96111-10950 Clamp(For Air Cleaner Hose, No.1)[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
96111-10950 |
from US $2.79 |
||
|
22204
|
22204
22204-75030 Meter Sub-Assy, Intake Air Flow[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
22204-75030 |
from US $95.22 |
||
|
1777838010
|
1777838010
17778-38010 BOLT AIR CLEANER |
17778-38010 |
US $3.78 |
||
|
9011906900
|
9011906900
90119-06900 BOLT WWASHER |
90119-06900 |
from US $0.78 |
||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
from US $0.66 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
