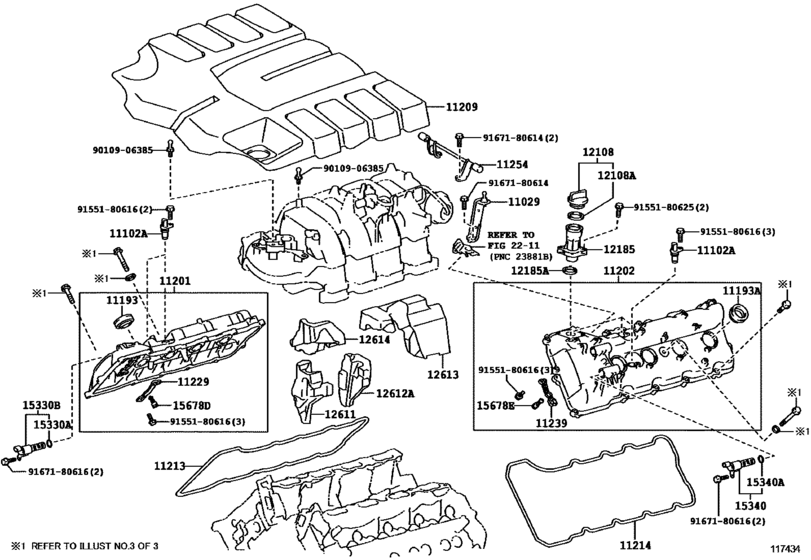

Cylinder Head ([01.2012 - 09.2015] (1201-1509)1URFE) Diagram Toyota LEXUS LX
- Year
- 2012 - 2015
- Sales region
- General
- Frame
- URJ202
- ENGINE
- 1URFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LX460
- From
- 01.2012
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- LX460
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11029
|
11029
11029-38050 Bracket Sub-Assy, V-Bank CoverV-BANK COVER [01.2012 - 09.2015] 1URFE..URJ202 |
11029-38050 |
US $8.15 |
||
|
11102A
|
11102A
90919-05060 Sensor, Cam Position[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
90919-05060 |
from US $69.38 |
||
|
11193
|
11193
11193-70010 Gasket(For Spark Plug Tube)[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
11193-70010 |
from US $2.22 |
||
|
11193A
|
11193A
11193-70010 Gasket(For Spark Plug Tube)[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
11193-70010 |
from US $2.22 |
||
|
11201
|
11201
11201-38070 Cover Sub-Assy, Cylinder Head[01.2012 - 09.2015] 1URFE..URJ202 |
11201-38070 |
US $260.33 |
||
|
11202
|
11202
11202-38050 Cover Sub-Assy, Cylinder Head, LhCYLINDER HEAD, LH [01.2012 - 09.2015] 1URFE..URJ202 |
11202-38050 |
US $267.90 |
||
|
11209
|
11209
11209-38140
Cover Sub-Assy, V-Bank
[01.2012 - 09.2015] 1URFE..URJ202 |
11209-38140 |
— | ||
|
11213
|
11213
11213-38020 Gasket, Cylinder Head CoverCYLINDER HEAD COVER [01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
11213-38020 |
from US $15.41 |
||
|
11214
|
11214
11214-38010 Gasket, Cylinder Head Cover, No.2CYLINDER HEAD COVER, NO.2 [01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
11214-38010 |
from US $15.80 |
||
|
11229
|
11229
11229-38010 Gasket, Cylinder Head Cover, No.3CYLINDER HEAD COVER, NO.3 [01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
11229-38010 |
from US $3.47 |
||
|
11239
|
11239
11229-38010 Gasket, Cylinder Head Cover, No.3CYLINDER HEAD COVER, NO.3 [01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
11229-38010 |
from US $3.47 |
||
|
11254
|
11254
11254-38040 Bracket, V-Bank Cover, No.1V-BANK COVER, NO.1 [01.2012 - 09.2015] 1URFE..URJ202 |
11254-38040 |
US $14.56 |
||
|
12108
|
12108
12180-38010 Cap Sub-Assy, Oil Filler[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
12180-38010 |
from US $11.47 |
||
|
12108A
|
12108A
90430-35001 Gasket(For Oil Filler Cap)[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
90430-35001 |
from US $1.17 |
||
|
12185
|
12185
12185-38011 Housing, Oil Filler CapOIL FILLER CAP [01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
12185-38011 |
from US $15.72 |
||
|
12185A
|
12185A
12196-38010 Gasket, Oil Filler Cap Housing[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
12196-38010 |
from US $3.24 |
||
|
12611
|
12611
12611-38030 Cover, Engine, No.1ENGINE, NO.1 [01.2012 - 09.2015] 1URFE..URJ202 |
12611-38030 |
US $12.23 |
||
|
12612A
|
12612A
12612-38020 Cover, Engine, No.2ENGINE, NO.2 [01.2012 - 09.2015] 1URFE..URJ202 |
12612-38020 |
US $8.59 |
||
|
12613
|
12613
12613-38030 Cover, Engine, No.3ENGINE, NO.3 [01.2012 - 09.2015] 1URFE..URJ202 |
12613-38030 |
US $40.04 |
||
|
12614
|
12614
12614-38010 Cover, Engine, No.4ENGINE, NO.4 [01.2012 - 09.2015] 1URFE..URJ202 |
12614-38010 |
US $13.69 |
||
|
15330A
|
15330A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
90099-14137 |
from US $2.16 |
||
|
15330B
|
15330B
15330-38010 Valve Assy, Cam Timing Oil Control, Rh[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
15330-38010 |
from US $84.92 |
||
| replacement | |||||
|
15330B
|
15330B
15330-0S010 Valve Assy, Cam Timing Oil Control, Rh[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
15330-0S010 |
US $278.93 |
||
|
15340
|
15340
15330-38010 Valve Assy, Cam Timing Oil Control, Rh[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
15330-38010 |
from US $84.92 |
||
| replacement | |||||
|
15340
|
15340
15330-0S010 Valve Assy, Cam Timing Oil Control, Rh[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
15330-0S010 |
US $278.93 |
||
|
15340A
|
15340A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
90099-14137 |
from US $2.16 |
||
|
15678D
|
15678D
15678-46020 Filter, Oil Control Valve[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
15678-46020 |
from US $3.47 |
||
|
15678E
|
15678E
15678-46020 Filter, Oil Control Valve[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
15678-46020 |
from US $3.47 |
||
|
9010906385
|
9010906385
90109-06385 Bolt , V-Bank Cover, No.1 |
90109-06385 |
from US $0.74 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.64 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
