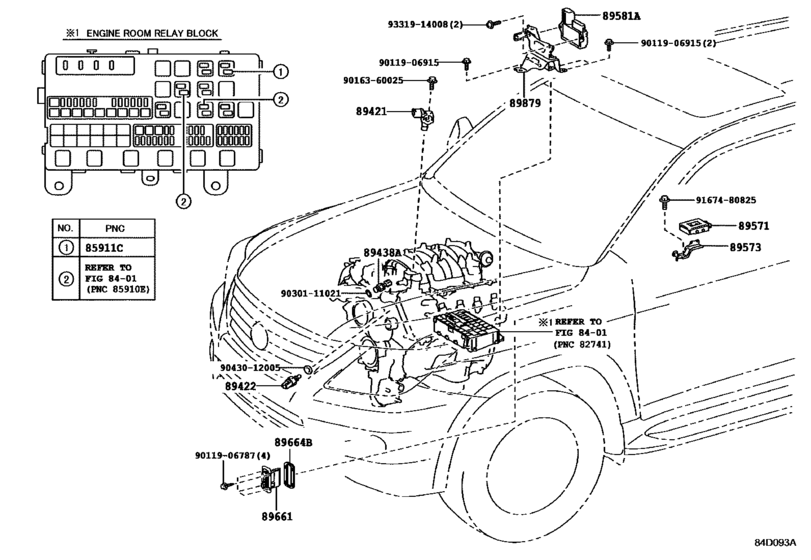

Electronic Fuel Injection System ([01.2012 - 09.2015] (1201-1509)URJ202) Diagram Toyota LEXUS LX
- Year
- 2012 - 2015
- Sales region
- General
- Frame
- URJ202
- ENGINE
- 1URFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LX460
- From
- 01.2012
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- LX460
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85911C
|
85911C
90987-02027 Relay[01.2012 - 09.2015] URJ20# |
90987-02027 |
from US $47.11 |
||
|
89421
|
89421
89421-47010 Sensor Assy, VacuumVACUUM (FOR E.F.I.) [01.2012 - 09.2015] URJ202 |
89421-47010 |
from US $96.76 |
||
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[01.2012 - 09.2015] URJ20# |
89422-33030 |
from US $40.49 |
||
|
89438A
|
89438A
89448-34020 Switch, Power Steering Oil Pressure[01.2012 - 09.2015] URJ20# |
89448-34020 |
from US $119.72 |
||
|
89571
|
89571
89571-60030 Computer, Fuel Pump Control[01.2012 - 04.2014] URJ20# |
89571-60030 |
US $152.88 |
||
| replacements | |||||
|
89571
|
89571
89571-60060 Computer, Fuel Pump Control[01.2012 - 04.2014] URJ20# |
89571-60060 |
from US $182.40 |
||
|
89571
|
89571
89573-60072 Bracket, Fuel Pump Control Computer[01.2012 - 04.2014] URJ20# |
89573-60072 |
US $10.47 |
||
|
89571
|
89571
89571-60060 Computer, Fuel Pump Control[04.2014 - 09.2015] URJ20# |
89571-60060 |
from US $182.40 |
||
|
89573
|
89573
89573-60071 Bracket, Fuel Pump Control Computer[01.2012 - 04.2014] URJ20# |
89573-60071 |
US $13.54 |
||
|
89573
|
89573
89573-60072 Bracket, Fuel Pump Control Computer[04.2014 - 09.2015] URJ20# |
89573-60072 |
US $10.47 |
||
|
89581A
|
89581A
89581-60010 Driver, Air Injection ControlAIR INJECTION CONTROL [01.2012 - 09.2015] URJ202 |
89581-60010 |
from US $84.91 |
||
|
89661
|
89661
89661-60Q50
Computer, Engine Control
[01.2012 - 09.2015] URJ202 |
89661-60Q50 |
— | ||
|
89664B
|
89664B
89664-34010 Plate, Engine Control Computer[01.2012 - 09.2015] URJ20# |
89664-34010 |
US $7.72 |
||
|
89879
|
89879
89589-34020
Bracket, Injector Driver
[01.2012 - 09.2015] URJ20#..ARL,CHI |
89589-34020 |
— | ||
|
9011906787
|
9011906787
90119-06787 BOLT WWASHER |
90119-06787 |
US $1.97 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9016360025
|
9016360025
90163-60025 New Genuine Part |
90163-60025 |
US $0.73 |
||
|
9030111021
|
9030111021
90301-11021 RING O |
90301-11021 |
from US $2.16 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
|
9167480825
|
9167480825
91674-80825 BOLT FLANGE |
91674-80825 |
US $1.79 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.43 |
||
