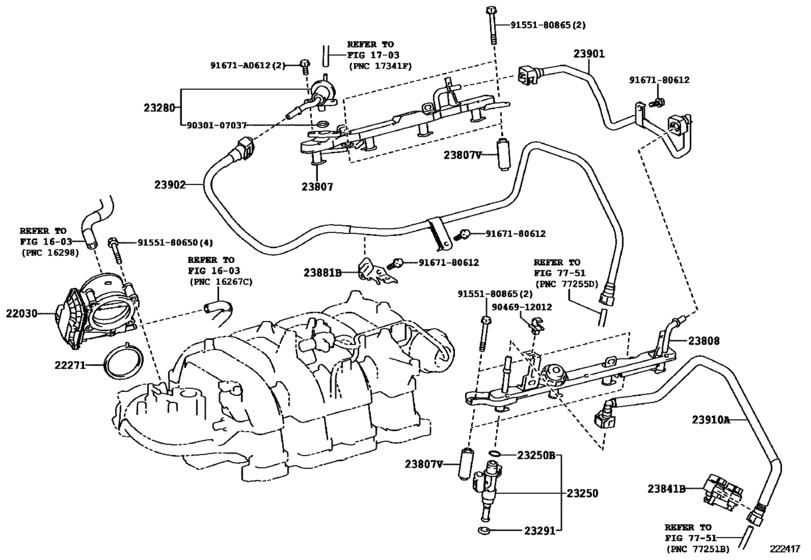

Fuel Injection System ([01.2012 - 09.2015] (1201-1509)1URFE) Diagram Toyota LEXUS LX
- Year
- 2012 - 2015
- Sales region
- General
- Frame
- URJ202
- ENGINE
- 1URFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LX460
- From
- 01.2012
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- LX460
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-38041 Body Assy, Throttle W/motorTHROTTLE W/MOTOR [01.2012 - 09.2015] 1URFE..URJ202 |
22030-38041 |
from US $743.16 |
||
|
22271
|
22271
22271-50050 Gasket, Throttle Body[01.2012 - 09.2015] 1URFE..URJ202 |
22271-50050 |
from US $2.46 |
||
|
23250
|
23250
23209-39165 Injector Assy, FuelFUEL [01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
23209-39165 |
from US $163.12 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
90301-07037 |
from US $2.18 |
||
|
23280
|
23280
23280-38060 Regulator Assy, Fuel PressureFUEL PRESSURE [01.2012 - 06.2012] 1URFE..URJ202 |
23280-38060 |
US $107.74 |
||
| replacement | |||||
|
23280
|
23280
23280-38061 Regulator Assy, Fuel Pressure[01.2012 - 06.2012] 1URFE..URJ202 |
23280-38061 |
US $80.08 |
||
|
23280
|
23280
23280-38061 Regulator Assy, Fuel Pressure[06.2012 - 09.2015] 1URFE..URJ202 |
23280-38061 |
US $80.08 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
23291-23010 |
from US $2.59 |
||
|
23807
|
23807
23814-38130 Pipe Sub-Assy, Fuel DeliveryFUEL DELIVERY [01.2012 - 05.2012] 1URFE..URJ202 |
23814-38130 |
US $152.88 |
||
| replacement | |||||
|
23807
|
23807
23814-38131 Pipe Sub-Assy, Fuel Delivery[01.2012 - 05.2012] 1URFE..URJ202 |
23814-38131 |
US $132.79 |
||
|
23807
|
23807
23814-38131 Pipe Sub-Assy, Fuel Delivery[05.2012 - 09.2015] 1URFE..URJ202 |
23814-38131 |
US $132.79 |
||
|
23807V
|
23807V
23891-38020 Spacer, No.1(For Delivery Pipe)[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
23891-38020 |
from US $3.74 |
||
|
23808
|
23808
23808-38020 Pipe Sub-Assy, Fuel Delivery, No.2FUEL DELIVERY, NO.2 [01.2012 - 05.2012] 1URFE..URJ202 |
23808-38020 |
US $171.81 |
||
| replacement | |||||
|
23808
|
23808
23808-38021 Pipe Sub-Assy, Fuel Delivery, No.2[01.2012 - 05.2012] 1URFE..URJ202 |
23808-38021 |
US $150.26 |
||
|
23808
|
23808
23808-38021 Pipe Sub-Assy, Fuel Delivery, No.2[05.2012 - 09.2015] 1URFE..URJ202 |
23808-38021 |
US $150.26 |
||
|
23841B
|
23841B
23841-50020 Clamp, Fuel Pipe, No.1(For Efi)[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
23841-50020 |
US $3.32 |
||
|
23881B
|
23881B
23881-38010 Bracket, Fuel HoseFUEL HOSE [01.2012 - 09.2015] 1URFE..URJ202 |
23881-38010 |
US $4.66 |
||
|
23901
|
23901
23901-38040 Tube Sub-Assy, FuelFUEL [01.2012 - 09.2015] 1URFE..URJ202 |
23901-38040 |
US $62.32 |
||
|
23902
|
23902
23902-38060 Tube Sub-Assy, FuelFUEL [01.2012 - 09.2015] 1URFE..URJ202 |
23902-38060 |
US $91.73 |
||
|
23910A
|
23910A
23901-38050 Tube Sub-Assy, FuelFUEL [01.2012 - 09.2015] 1URFE..URJ202 |
23901-38050 |
US $58.24 |
||
|
91671A0612
|
91671A0612
91671-A0612 BOLT FLANGE |
91671-A0612 |
from US $0.64 |
||
|
9030107037
|
9030107037
90301-07037 Ring, O(For Fuel Injector) |
90301-07037 |
from US $2.18 |
||
|
9046912012
|
9046912012
90469-12012 Clamp Or Clip(For Fuel Hose) |
90469-12012 |
from US $3.61 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
from US $0.80 |
||
|
9155180865
|
9155180865
91551-80865 Shaft, Clutch Pedal |
91551-80865 |
US $1.79 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.66 |
||
