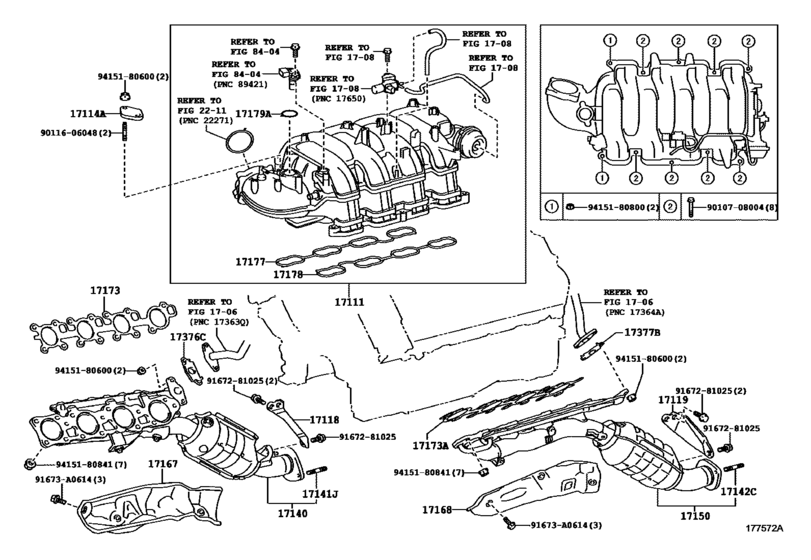

Manifold ([01.2012 - 09.2015] (1201-1509)1URFE) Diagram Toyota LEXUS LX
- Year
- 2012 - 2015
- Sales region
- General
- Frame
- URJ202
- ENGINE
- 1URFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LX460
- From
- 01.2012
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- LX460
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-38040
Manifold, Intake
[01.2012 - 09.2015] 1URFE..URJ202 |
17120-38040 |
— | ||
| replacements | |||||
|
17111
|
17111
17120-38041
Manifold, Intake
[01.2012 - 09.2015] 1URFE..URJ202 |
17120-38041 |
— | ||
|
17111
|
17111
17120-38043 MANIFOLD ASSY INTAKE[01.2012 - 09.2015] 1URFE..URJ202 |
17120-38043 |
from US $865.50 |
||
|
17114A
|
17114A
17114-38030
Flange, Intake
[01.2012 - 09.2015] 1URFE..URJ202 |
17114-38030 |
— | ||
|
17118
|
17118
17118-38030 Stay, ManifoldMANIFOLD [01.2012 - 09.2015] 1URFE..URJ202 |
17118-38030 |
US $14.27 |
||
|
17119
|
17119
17119-38030 Stay, Manifold, No.2MANIFOLD, NO.2 [01.2012 - 09.2015] 1URFE..URJ202 |
17119-38030 |
US $12.96 |
||
|
17140
|
17140
17140-38120
Manifold Assy, Exhaust, Rh
[01.2012 - 09.2015] 1URFE..URJ202 *114=TOYOTA/*291/Y |
17140-38120 |
— | ||
|
17141J
|
17141J
90126-10033 Bolt, Stud(For Exhaust Manifold, Rh)[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
90126-10033 |
from US $4.60 |
||
|
17142C
|
17142C
90126-10033 Bolt, Stud(For Exhaust Manifold, Rh)[01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
90126-10033 |
from US $4.60 |
||
|
17150
|
17150
17150-38120
Manifold Assy, Exhaust, Lh
[01.2012 - 09.2015] 1URFE..URJ202 *114=TOYOTA/*293/Y |
17150-38120 |
— | ||
|
17167
|
17167
17167-38140 Insulator, Exhaust Manifold Heat, No.1EXHAUST MANIFOLD HEAT, NO.1 [01.2012 - 09.2015] 1URFE..URJ202 |
17167-38140 |
from US $39.89 |
||
|
17168
|
17168
17168-38150 Insulator, Exhaust Manifold Heat, No.2EXHAUST MANIFOLD HEAT, NO.2 [01.2012 - 09.2015] 1URFE..URJ202 |
17168-38150 |
from US $30.01 |
||
|
17173
|
17173
17173-38020 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
17173-38020 |
from US $25 |
||
|
17173A
|
17173A
17173-38020 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
17173-38020 |
from US $25 |
||
|
17177
|
17177
17171-38030 Gasket, Intake Manifold To Head, No.1INTAKE MANIFOLD TO HEAD, NO.1 [01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
17171-38030 |
from US $10.94 |
||
|
17178
|
17178
17171-38030 Gasket, Intake Manifold To Head, No.1INTAKE MANIFOLD TO HEAD, NO.1 [01.2012 - 09.2015] 1URFE,3URFE..URJ20# |
17171-38030 |
from US $10.94 |
||
|
17179A
|
17179A
17179-38010 Gasket, Intake Manifold, No.2INTAKE MANIFOLD, NO.2 [01.2012 - 09.2015] 1URFE..URJ202 |
17179-38010 |
US $3.94 |
||
|
17376C
|
17376C
17377-38010 Gasket, Air TubeAIR TUBE, NO.2 [01.2012 - 09.2015] 1URFE,3URFE..URJ20#..ARL,CHI; 3URFE..URJ201..GCC PERU SPEC |
17377-38010 |
from US $1.72 |
||
|
17377B
|
17377B
17377-38010 Gasket, Air TubeAIR TUBE, NO.2 [01.2012 - 09.2015] 1URFE,3URFE..URJ20#..ARL,CHI; 3URFE..URJ201..GCC PERU SPEC |
17377-38010 |
from US $1.72 |
||
|
91673A0614
|
91673A0614
91673-A0614 BOLT, FLANGE W-WASER |
91673-A0614 |
from US $0.64 |
||
|
9010708004
|
9010708004
90107-08004 New Genuine Part |
90107-08004 |
US $1.79 |
||
|
9011606048
|
9011606048
90116-06048 Bolt, Stud(For Oil Pan) |
90116-06048 |
from US $0.66 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.13 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.76 |
||
