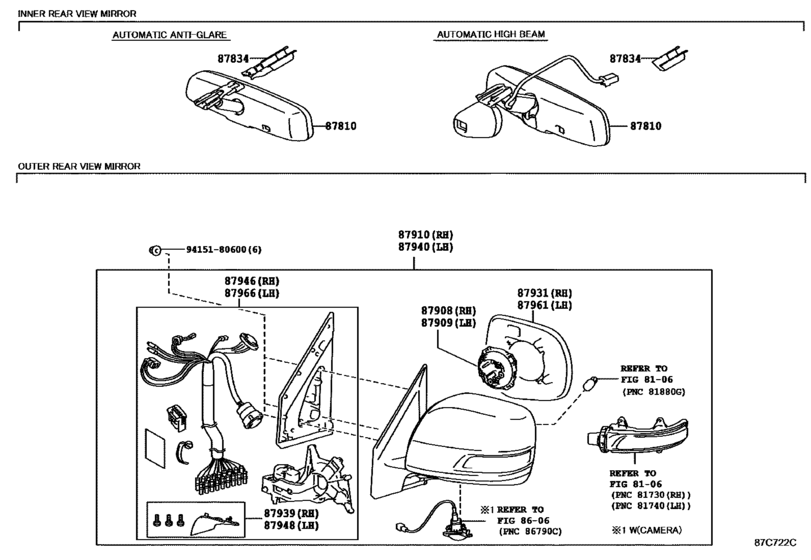

Mirror ([01.2012 - 09.2015] (1201-1509)) Diagram Toyota LEXUS LX
- Year
- 2012 - 2015
- Sales region
- General
- Frame
- URJ202
- ENGINE
- 1URFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LX460
- From
- 01.2012
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- LX460
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-0WG60
Mirror Assy, Inner Rear View
[01.2012 - 05.2012] URJ202 SIDE GLASS-GREEN(FRONT DOOR=LAMINETED) |
87810-0WG60 |
— | ||
|
87810
|
87810
87810-0WG70
Mirror Assy, Inner Rear View
[01.2012 - 05.2012] URJ202 |
87810-0WG70 |
— | ||
|
87834
|
87834
87818-0W070 Cover, Inner Rear View Mirror Stay Holder[01.2012 - 09.2015] URJ20# |
87818-0W070 |
from US $5.77 |
||
|
87908
|
87908
87908-60B40 Actuator Assy, Outer Mirror[01.2012 - 08.2015] URJ20# |
87908-60B40 |
from US $69.22 |
||
|
87909
|
87909
87908-60B40 Actuator Assy, Outer Mirror[01.2012 - 08.2015] URJ20# |
87908-60B40 |
from US $69.22 |
||
|
87910
|
87910
87910-60K30-A0
Mirror Assy, Outer Rear View, Rh
[01.2012 - 09.2015] URJ20#..ARL WHITE PEARL CS.,077 |
87910-60K30-A0 |
— | ||
|
87910
|
87910
87910-60K30-B0
Mirror Assy, Outer Rear View, Rh
[01.2012 - 01.2013] URJ20#..ARL PREMIUM SILVER,1F2 |
87910-60K30-B0 |
— | ||
|
87910
|
87910
87910-60K30-B1
Mirror Assy, Outer Rear View, Rh
[01.2012 - 09.2015] URJ20#..ARL MERCURY GRAY MC.,1H9 |
87910-60K30-B1 |
— | ||
|
87910
|
87910
87910-60K30-B2
Mirror Assy, Outer Rear View, Rh
[01.2013 - 09.2015] URJ20#..ARL PLATINUM SILVER ME.,1J4 |
87910-60K30-B2 |
— | ||
|
87910
|
87910
87910-60K30-C0
Mirror Assy, Outer Rear View, Rh
[01.2012 - 09.2015] URJ20#..ARL BLACK,202 |
87910-60K30-C0 |
— | ||
|
87910
|
87910
87910-60K30-C1
Mirror Assy, Outer Rear View, Rh
[01.2012 - 09.2015] URJ20#..ARL STARLIGHT BLACK GF.,217 |
87910-60K30-C1 |
— | ||
|
87910
|
87910
87910-60K30-D0
Mirror Assy, Outer Rear View, Rh
[01.2012 - 01.2013] URJ20#..ARL DK.RED MC.CS.,3R7 |
87910-60K30-D0 |
— | ||
|
87910
|
87910
87910-60K30-D1
Mirror Assy, Outer Rear View, Rh
[01.2013 - 08.2014] URJ20#..ARL GARNET RED MC.,3S0 |
87910-60K30-D1 |
— | ||
|
87910
|
87910
87910-60K30-E0
Mirror Assy, Outer Rear View, Rh
[01.2012 - 09.2015] URJ20#..ARL SLEEK ECRU ME.,4U7 |
87910-60K30-E0 |
— | ||
|
87931
|
87931
87931-60B70 Outer Mirror, RhRH [01.2012 - 09.2015] URJ20#..ARL,CHI; URJ201..GCC PHILIPPINES SPEC&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE); URJ201..GCC PERU SPEC&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE); URJ201..GCC SOUTH AMERICA SPEC&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE); URJ201. |
87931-60B70 |
from US $255.09 |
||
|
87939
|
87939
81859-60460 Cover, Outer Mirror Hole, Rh[01.2012 - 09.2015] URJ20#..ARL |
81859-60460 |
US $15.20 |
||
|
87940
|
87940
87940-60K30-A0
Mirror Assy, Outer Rear View, Lh
[01.2012 - 09.2015] URJ20#..ARL WHITE PEARL CS.,077 |
87940-60K30-A0 |
— | ||
|
87940
|
87940
87940-60K30-B0
Mirror Assy, Outer Rear View, Lh
[01.2012 - 01.2013] URJ20#..ARL PREMIUM SILVER,1F2 |
87940-60K30-B0 |
— | ||
|
87940
|
87940
87940-60K30-B1
Mirror Assy, Outer Rear View, Lh
[01.2012 - 09.2015] URJ20#..ARL MERCURY GRAY MC.,1H9 |
87940-60K30-B1 |
— | ||
|
87940
|
87940
87940-60K30-B2
Mirror Assy, Outer Rear View, Lh
[01.2013 - 09.2015] URJ20#..ARL PLATINUM SILVER ME.,1J4 |
87940-60K30-B2 |
— | ||
|
87940
|
87940
87940-60K30-C0
Mirror Assy, Outer Rear View, Lh
[01.2012 - 09.2015] URJ20#..ARL BLACK,202 |
87940-60K30-C0 |
— | ||
|
87940
|
87940
87940-60K30-C1
Mirror Assy, Outer Rear View, Lh
[01.2012 - 09.2015] URJ20#..ARL STARLIGHT BLACK GF.,217 |
87940-60K30-C1 |
— | ||
|
87940
|
87940
87940-60K30-D0
Mirror Assy, Outer Rear View, Lh
[01.2012 - 01.2013] URJ20#..ARL DK.RED MC.CS.,3R7 |
87940-60K30-D0 |
— | ||
|
87940
|
87940
87940-60K30-D1
Mirror Assy, Outer Rear View, Lh
[01.2013 - 08.2014] URJ20#..ARL GARNET RED MC.,3S0 |
87940-60K30-D1 |
— | ||
|
87940
|
87940
87940-60K30-E0
Mirror Assy, Outer Rear View, Lh
[01.2012 - 09.2015] URJ20#..ARL SLEEK ECRU ME.,4U7 |
87940-60K30-E0 |
— | ||
|
87946
|
87946
87946-60K30
Retractor, Outer Mirror, Rh
[01.2012 - 09.2015] URJ20#..ARL |
87946-60K30 |
— | ||
|
87948
|
87948
81859-60470 Cover, Outer Mirror Hole, Lh[01.2012 - 09.2015] URJ20#..ARL |
81859-60470 |
US $15.20 |
||
|
87961
|
87961
87961-60B70 Mirror Outer, LhLH [01.2012 - 09.2015] URJ20#..ARL,CHI; URJ201..GCC PHILIPPINES SPEC&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE); URJ201..GCC PERU SPEC&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE); URJ201..GCC SOUTH AMERICA SPEC&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE); URJ201. |
87961-60B70 |
from US $224.86 |
||
|
87966
|
87966
87966-60K30
Retractor, Outer Mirror, Lh
[01.2012 - 09.2015] URJ20#..ARL |
87966-60K30 |
— | ||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
