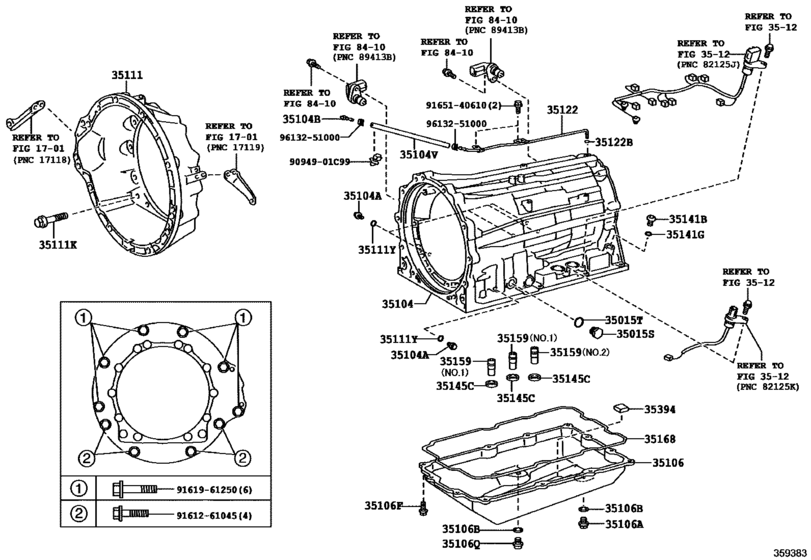

Transmission Case & Oil Pan (Atm) ([01.2012 - 09.2015] AB60F (1201-1509)URJ202) Diagram Toyota LEXUS LX
- Year
- 2012 - 2015
- Sales region
- General
- Frame
- URJ202
- ENGINE
- 1URFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LX460
- From
- 01.2012
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- LX460
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35015S
|
35015S
90341-18059 Plug, W/head Straight Screw(For Transmission Case Adapter)[01.2012 - 09.2015] URJ20# |
90341-18059 |
from US $3.39 |
||
|
35015T
|
35015T
90301-15004 Ring, O(For Oil Cooler Tube Union)[01.2012 - 09.2015] URJ20# |
90301-15004 |
from US $1.56 |
||
|
35104
|
35104
35104-60250
Case Sub-Assy, Automatic Transmission
[01.2012 - 09.2015] URJ201 (J); URJ202 |
35104-60250 |
— | ||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[01.2012 - 09.2015] URJ201 (J); URJ202 |
90341-08001 |
from US $1.52 |
||
|
35104B
|
35104B
90930-03188 Plug, Breather, No.1 (Atm)BREATHER, NO.1 (ATM) [01.2012 - 09.2015] URJ202 |
90930-03188 |
US $9.14 |
||
|
35104V
|
35104V
35121-48030 Hose (For Breather Plug)[01.2012 - 09.2015] URJ202 |
35121-48030 |
US $5.39 |
||
|
35106
|
35106
35106-60220 Pan Sub-Assy, Automatic Transmission OilAUTOMATIC TRANSMISSION OIL [01.2012 - 09.2015] URJ201 (J); URJ202 |
35106-60220 |
from US $92.98 |
||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[01.2012 - 09.2015] URJ20# |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[01.2012 - 09.2015] URJ20# |
35178-30010 |
US $3.40 |
||
|
35106F
|
35106F
90119-06A02 Bolt (For Automatic Transmission Oil Pan)[02.2014 - 09.2015] URJ20# |
90119-06A02 |
US $1.08 |
||
|
35106F
|
35106F
91611-B0625 Bolt (For Automatic Transmission Oil Pan)[01.2012 - 02.2014] URJ201 (J); URJ202 |
91611-B0625 |
from US $0.38 |
||
|
35106Q
|
35106Q
90341-10021 Plug, Drain(Hv) (Check)[01.2012 - 09.2015] URJ20# |
90341-10021 |
from US $2.07 |
||
|
35111
|
35111
35111-60220 Housing, Automatic Transmission[01.2012 - 09.2015] URJ202 |
35111-60220 |
US $382.93 |
||
|
35111K
|
35111K
90119-10232 Bolt (For Transmission Housing & Case Setting)[01.2012 - 09.2015] URJ201 *10-1.5PX35-30,(J); URJ202 *10-1.5PX35-30 |
90119-10232 |
US $1.97 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[01.2012 - 09.2015] URJ20# |
90301-06196 |
from US $2.24 |
||
|
35122
|
35122
35122-60090
Tube, Breather (For Automatic Transaxle)
[01.2012 - 09.2015] URJ20# |
35122-60090 |
— | ||
|
35122B
|
35122B
90301-04014 O Ring, Transmission Breather[01.2012 - 09.2015] URJ20# |
90301-04014 |
US $1.22 |
||
|
35141B
|
35141B
90341-14011 Plug, Automatic Transmission Case[01.2012 - 09.2015] URJ20# |
90341-14011 |
from US $3.22 |
||
|
35141G
|
35141G
90301-11030 Ring, O(For Oil Cooler Tube Union)[01.2012 - 09.2015] URJ20# |
90301-11030 |
from US $2.15 |
||
|
35145C
|
35145C
35145-60020 Gasket, Transaxle Case[01.2012 - 09.2015] URJ20# |
35145-60020 |
from US $6.45 |
||
|
35159
|
35159
35159-60020
Gasket, Brake Drum
[01.2012 - 09.2015] URJ201 (J),NO.2; URJ202 NO.2 |
35159-60020 |
— | ||
|
35159
|
35159
35159-60030
Gasket, Brake Drum
[01.2012 - 09.2015] URJ201 (J),NO.1; URJ202 NO.1 |
35159-60030 |
— | ||
|
35168
|
35168
35168-34020 Gasket, Automatic Transmission Oil PanAUTOMATIC TRANSMISSION OIL PAN [01.2012 - 09.2015] URJ20# |
35168-34020 |
from US $29.90 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[01.2012 - 09.2015] URJ20# |
35394-30011 |
from US $5.62 |
||
|
9094901C99
|
9094901C99
90949-01C99 Clip, Radiator Hose, No.5 |
90949-01C99 |
US $1.31 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9613251000
|
9613251000
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.48 |
