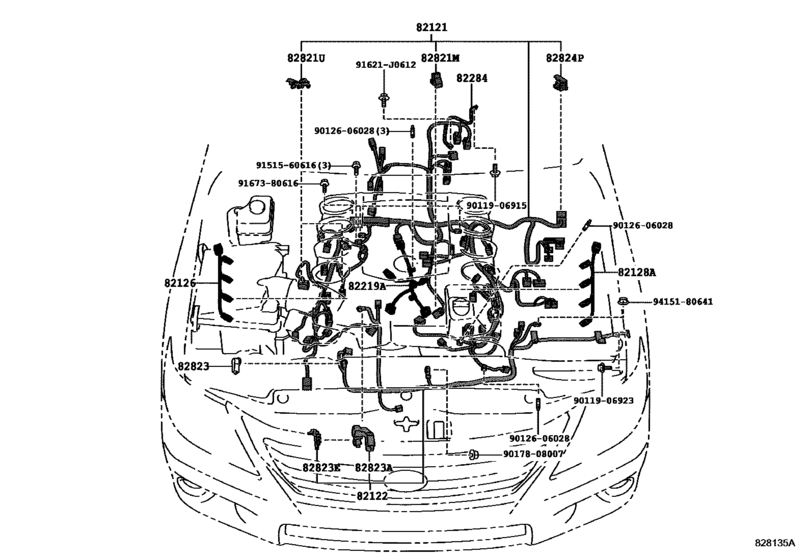

Wiring & Clamp ([01.2012 - ] ENGINE (1201- )URJ202) Diagram Toyota LEXUS LX
- Year
- 2012 - 2015
- Sales region
- General
- Frame
- URJ202
- ENGINE
- 1URFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LX460
- From
- 01.2012
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- LX460
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-60Q30
Wire, Engine
[01.2012 - 09.2015] URJ202 |
82121-60Q30 |
— | ||
|
82122
|
82122
82122-60850
Wire, Engine, No.2
[01.2012 - 09.2015] URJ202 |
82122-60850 |
— | ||
|
82126
|
82126
82126-34021 Wire, EngineENGINE [01.2012 - 09.2015] URJ20# |
82126-34021 |
from US $13.98 |
||
|
82128A
|
82128A
82127-34050 Wire, Engine, No.8ENGINE, NO.8 [01.2012 - 09.2015] URJ20# |
82127-34050 |
from US $13.98 |
||
|
82219A
|
82219A
82219-60100 Wire, SensorSENSOR [01.2012 - 09.2015] URJ202 |
82219-60100 |
from US $18.70 |
||
|
82284
|
82284
82284-60130 Wire, Earth[01.2012 - 09.2015] URJ20# |
82284-60130 |
from US $24.02 |
||
|
82821M
|
82821M
82821-30600 Cover, Connector[01.2012 - 09.2015] URJ202 |
82821-30600 |
US $1.08 |
||
|
82821U
|
82821U
82821-50500 Cover, Connector[01.2012 - 09.2015] URJ202 |
82821-50500 |
US $2.51 |
||
|
82823
|
82823
82823-60040 Cap, Terminal, No.1[01.2012 - 09.2015] URJ20# |
82823-60040 |
US $6.09 |
||
|
82823A
|
82823A
82823-0C030 Cap, Terminal, No.2TERMINAL, NO.2 [01.2012 - 09.2015] URJ202 |
82823-0C030 |
US $8.88 |
||
|
82823E
|
82823E
82823-0C040 Cap, Terminal, No.5TERMINAL, NO.3 [01.2012 - 09.2015] URJ202 |
82823-0C040 |
US $3.49 |
||
|
82824P
|
82824P
82824-34100 Connector, Wiring Harness[01.2012 - 09.2015] URJ202 |
82824-34100 |
US $4.66 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9011906923
|
9011906923
90119-06923 BOLT WWASHER |
90119-06923 |
US $1.08 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.64 |
||
|
9017808007
|
9017808007
90178-08007 Nut(For Rear Suspension Support) |
90178-08007 |
from US $0.92 |
||
|
9151560616
|
9151560616
91515-60616 BOLT FLANGE |
91515-60616 |
US $1.25 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9415180641
|
9415180641
94151-80641 NUT FLANGE |
94151-80641 |
from US $0.98 |
